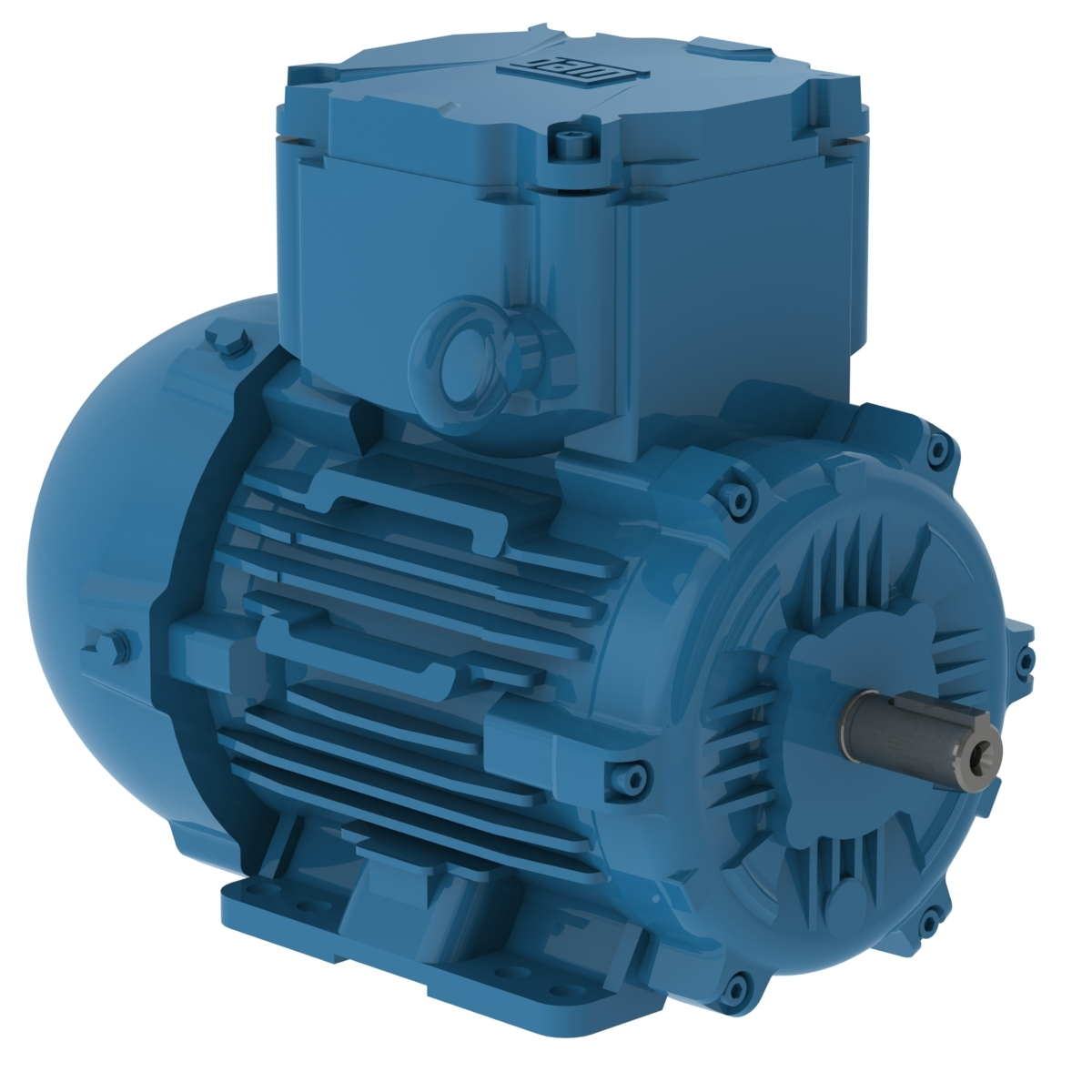

WEG E0.5518EP3WAX80F3-W2 13974857 Hazardous Area IEC-Ex/ATEX Motor, EX-DB, 0.55 kW, 4 Poles, 80 Frame, 3 Phase, 220-230-240/380-400-415//460 V, 50 Hz, IC411-TEFC, B3T Mounting
Get it by Tuesday, Apr 14
€582.22 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Electric Motor |
| Altitude | 1000 M.A.S.L. |
| Ambient Temp. | -20°C to +40°C |
| Balancing Method | 1/2" Key |
| Bearing Cap | Circlip Ring |
| Bolt Material | Carbon Steel |
| Breakdown Torque | 229% |
| Composition | Steel |
| Connection Cables Quantity | 6 |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency @ 100% | 77.1% |
| Efficiency @ 50% | 75% |
| Efficiency @ 75% | 76.5% |
| Enclosure | IC411 |
| Enclosure Type | Tefc |
| Fan Cover Material | Cast Iron |
| Fan Material | Aluminum , Plastic |
| Flange | Without |
| Flange Type | Without |
| Frame | 80 |
| Frame Material | Cast Iron |
| Frequency | 50 Hz |
| Grounding Lugs | Double |
| Hp | 3/4 hp |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | Class F |
| Joints Seal | Lumomoly |
| L.r. Amperes | 7.64/13.2A |
| Locked Rotor Time (cold) | 30 sec. |
| Locked Rotor Time (hot) | 17 sec. |
| Locked Rotor Torque | 220% |
| Main Terminal Box Hole | M25 x 1.5 |
| Main Terminal Box Hole Size | M25 x 1.5 |
| Moment Of Inertia (j) | 0.0686 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Mounting | B3T , Foot Mounted |
| No Load Amps | 0.95/1.64A |
| No. Of Pins | 6 |
| No. Of Poles | 4 |
| Noise Level | 44 dBA |
| Output Rating | 0.55 kW , 3/4 hp |
| Overload Protection | No |
| Overload Protector | Without Overload Protector |
| Painting | RAL 5009 205P (ISO 12944 - C4) |
| Phase | 3 |
| Power Factor 50% | 0.53 |
| Power Factor 75% | 0.71 |
| Power Factor_100% | 0.78 |
| Rated Current | 1.39/2.4A |
| Rated Speed | 1435 RPM |
| Rated Torque | 2.7 lbs.-ft. |
| Rated Voltage | 220/380V |
| Rotation | CW/CCW |
| Rpm | 1500 RPM |
| Screw Cap | Stainless Steel |
| Service Factor | 1 |
| Shaft Locking Device | Without |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Slip | 4.33% |
| Space Heater Voltage | 200-240V , 200-240V AC |
| Starting Method | Direct On Line |
| Synchronous Speed | 1500 RPM |
| Temp. Rise | 80 K |
| Terminal Block | BMC |
| Terminal Box | Top |
| Terminal Type | BMC |
| Tropicalized Painting | Without |
| Voltage | 220-230-240/380-400-415/460V AC |
| Winding Thermal Protection | Thermistor-2 Wires 1 Per Phase 150°C |
Shipping Info:
| Ship weight (kg) | 27.74 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Hp | Frame | No. Of Poles | Synchronous Speed | Mounting | Output Rating | Rpm | Impregnation Method | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
E04512EP3YAX280SMF3W | 60 hp | 280 S/M | 6 | 1000 RPM | Foot Mounted | 60 hp | 1000/1200 RPM | Constant Resin Flow | €23,462.45 | |
 |
E00418EP3YAX112MF3-W | 5 1/2 hp | 112 M | 4 | 1500 RPM | Foot Mounted | 5 1/2 hp | 1500/1800 RPM | Dip And Bake Polyester | €1,655.98 | |
|
E09018EP3YAX280SMF3W | 125 hp | 280 S/M | 4 | 1500 RPM | Foot Mounted | 125 hp | 1500/1800 RPM | Constant Resin Flow | €24,408.69 | |
|
E11012EP3YAX315SMF3W | 150 hp | 315S/M | 6 | 1000 RPM | Foot Mounted | 150 hp | 1000/1200 RPM | Constant Resin Flow | €36,453.57 | |
 |
E01812EP3YAX200LF3-W | 25 hp | 200 L | 6 | 1000 RPM | Foot Mounted | 18.5 kW | 1000/1200 RPM | Dip And Bake Polyester | €8,590.64 | |
 |
E01512EP3YAX180LF3-W | 20 hp | 180 L | 6 | 1000 RPM | Foot Mounted | 20 hp | 1000/1200 RPM | Dip And Bake Polyester | €6,172.34 | |
|
E05518EP3YAX250SMF3W | 75 hp | 250 S/M | 4 | 1500 RPM | Foot Mounted | 75 hp | 1500/1800 RPM | Constant Resin Flow | €16,443.53 |
