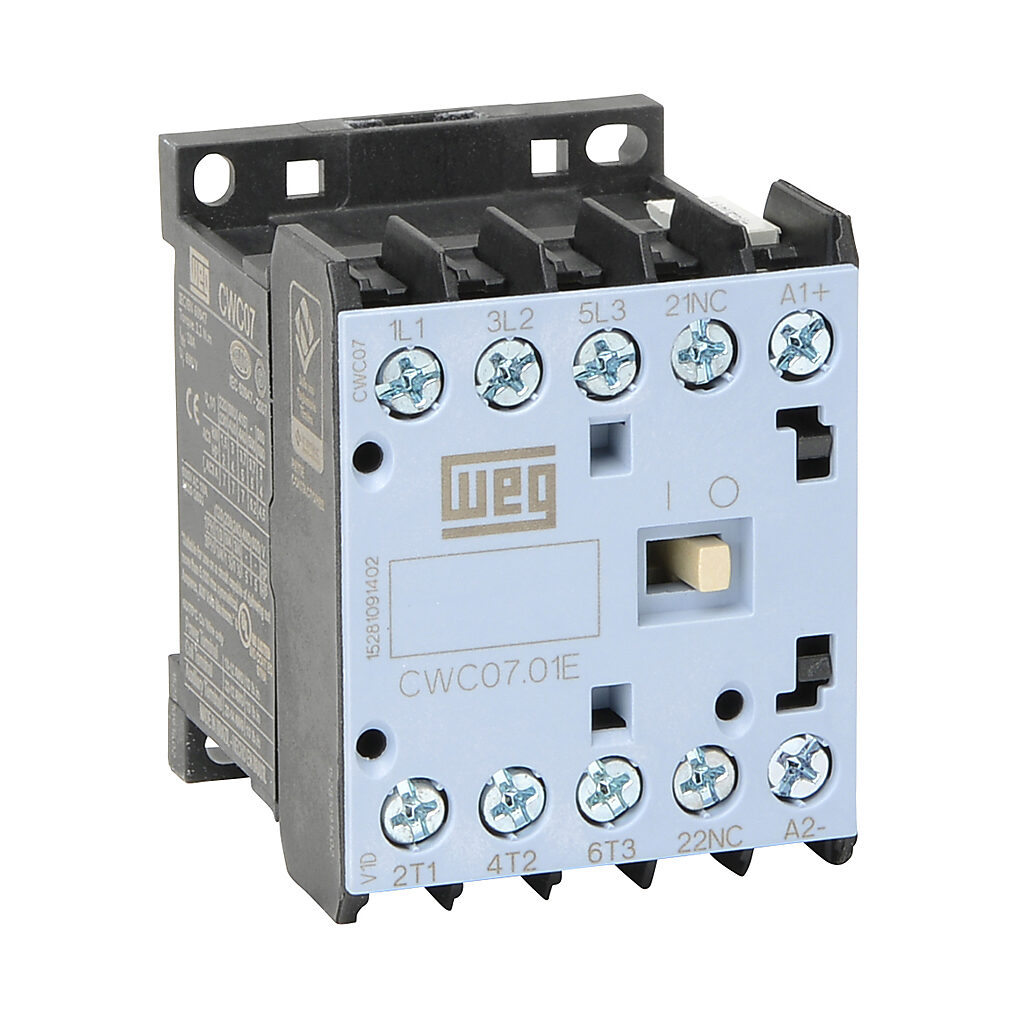

WEG CWC07-01-30V18 Contactor, 110V at 50Hz/120V at 60Hz | BC8NEH

WEG CWC07-01-30V18 12679847 Miniature Contactor, 7 A, 3 NO Main Contact, 1 NC Aux Contact, 110V 50Hz/120V 60Hz

Item: BC8NEHModel: CWC07-01-30V18Cross Ref: 12679847
Check Availability
In Stock

Get it by Friday, Aug 21

€30.60 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Contactor
Actuator Type Magnetic
Amps 7A
Auxiliary Contacts NC
Coil Frequency 50/60 Hz
Coil Type Magnetic
Coil Voltage 120/110V AC , 120V AC
Contact Type NO
Contactor Type IEC Miniature
Control Voltage 110/120V
Degree Of Protection Ip (iec 60529) - Control Circuit IP20
Degree Of Protection Ip (iec 60529) - Main Circuit IP20
Depth 2.05"
Electrical Lifespan 1.4 Million Cycles
Frequency 60/50 Hz
Gross Weight 0.415 lbs.
Height 2.28"
Main Contact 3 NO
Main Contacts NO
Max. Hp 120v 1ph 33/100 hp
Max. Hp 200/208v 3ph 1 1/2 hp
Max. Hp 230/240v 1ph 3/4 hp
Max. Hp 230/240v 3ph 1 1/2 hp
Max. Hp 460/480v 3ph 5 hp
Max. Hp 575/600v 3ph 5 hp
Max. Rated Operational Frequency 25 Hz
Mechanical Lifespan (ac) 10 Milion Cycles
Mechanical Lifespan (dc) 12 Milion Cycles
Min. Rated Operational Frequency 400 Hz
No. Of Contacts 2 , 3 NO
No. Of Poles 3
Nominal Coil Voltage 120V AC
Power Poles NO
Rated Insulation Voltage 690V
Rated Insulation Voltage Ui (pollution Degree 3) 600V
Rated Insulation Voltage Ui (pollution Degree 3)-iec 60974-4-1 690V
Rated Operational Amps 18A
Rated Operational Voltage 690V
Reference CWC0
Series CWC Series
Terminal Type Screw
Termination Screw
Ul Motor Switching 7A
Width 1.77"

Shipping Info:

Ship weight (kg) 0.18
Ship height (cm)6.35
Ship length (cm)9.4
Ship width (cm)6.35
Country of OriginBR

Product Variants

ProductModelAmpsHeightControl VoltageRated Operational AmpsMin. Rated Operational FrequencyMax. Rated Operational FrequencyMechanical Lifespan (ac)Mechanical Lifespan (dc)Price
WEG CWC09-01-30V24-X50 Contactor, 180-208V at 50Hz/208-240V at 60Hz | BB3LHW CWC09-01-30V24-X509A2.28"180-208/208-240V20A400 Hz25 Hz10 Milion Cycles12 Milion Cycles€30.41
WEG CWC09-10-30V24-X50 Contactor, 180-208V at 50Hz/208-240V at 60Hz | BB4VEG CWC09-10-30V24-X509A2.28"180-208/208-240V20A400 Hz25 Hz10 Milion Cycles12 Milion Cycles€30.41
WEG CWC07-00-40L03 Contactor, 24V DC | BB6APP CWC07-00-40L037A2.28"24V DC18A400 Hz25 Hz10 Milion Cycles12 Milion Cycles€36.25
WEG CWC012-10-30L02 Contactor, 12V DC | BB6KEN CWC012-10-30L0212A2.28"12V DC22A400 Hz25 Hz10 Milion Cycles12 Milion Cycles-
RFQ
WEG CWC09-00-40L03 Contactor, 24V DC | BB6MDY CWC09-00-40L039A2.28"24V DC20A400 Hz25 Hz10 Milion Cycles12 Milion Cycles€44.10
WEG CWC09-10-30L02 Contactor, 12V DC | BB6QLU CWC09-10-30L029A2.28"12V DC20A400 Hz25 Hz10 Milion Cycles12 Milion Cycles€43.20
WEG CWC09-00-40L02 Contactor, 12V DC | BB7AMY CWC09-00-40L029A2.28"12V DC20A400 Hz25 Hz10 Milion Cycles12 Milion Cycles€44.10
