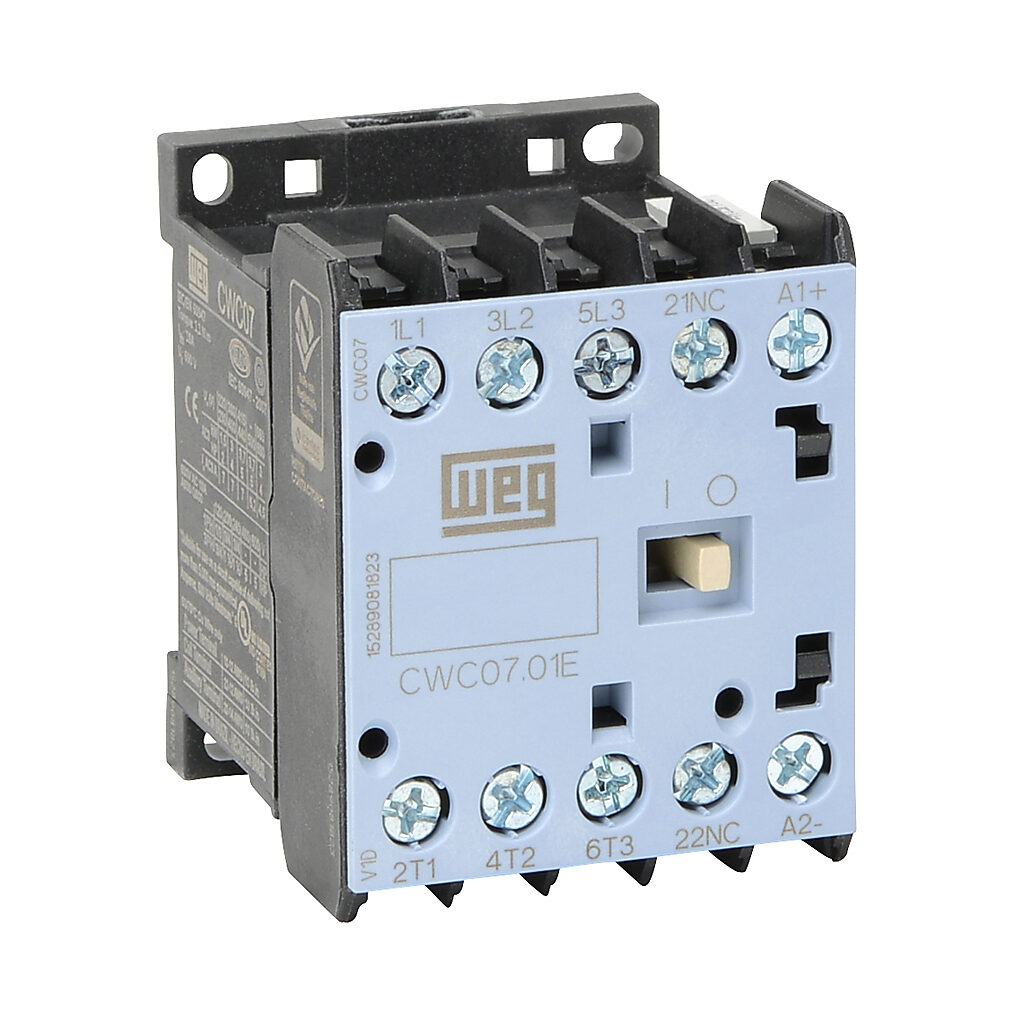

WEG CWC07-01-30V04 12486546 Miniature Contactor, 7 A Rated, 3 NO Main Contact, 1 NC Aux Contact, 20V 50Hz/24V 60Hz
Get it by Friday, Feb 27
€30.60 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Contactor |
| Coil Type | Magnetic |
| Coil Voltage | 24V AC |
| Frequency | 60/50 Hz |
| Height | 2.28" |
| Max Hp 120v 1ph | 33/100 hp |
| Max Hp 200/208v 3ph | 1 1/2 hp |
| Max Hp 230/240v 1ph | 3/4 hp |
| Max Hp 230/240v 3ph | 1 1/2 hp |
| Max Hp 460/480v 3ph | 5 hp |
| Max Hp 575/600v 3ph | 5 hp |
| Nominal Coil Voltage | 24V AC |
| Number Of Poles | 3 |
| Rated Insulation Voltage | 690V |
| Terminal Type | Screw |
| Termination | Screw |
| Ul Motor Switching | 7A |
| Width | 1.77" |
Shipping Info:
| Ship weight (kg) | 0.18 |
| Ship height (cm) | 6.35 |
| Ship length (cm) | 9.4 |
| Ship width (cm) | 6.35 |
| Country of Origin | BR |
Product Variants
| Product | Model | Number Of Poles | Depth | Height | Contactor Type | Price | |
|---|---|---|---|---|---|---|---|
 |
CWC09-01-30V24-X50 | - | 2.05" | 2.28" | - | €30.41 | |
|
CWC09-10-30V24-X50 | - | 2.05" | 2.28" | - | €30.41 | |
 |
CWC07-00-40L03 | 4 | 2.05" | 2.28" | IEC Miniature | €36.25 | |
 |
CWC012-10-30L02 | 3 | 2.05" | 2.28" | IEC Miniature | - | RFQ
|
 |
CWC09-00-40L03 | 4 | 2.05" | 2.28" | IEC Miniature | €44.10 | |
 |
CWC09-10-30L02 | 3 | 2.05" | 2.28" | IEC Miniature | €43.20 | |
 |
CWC09-00-40L02 | 4 | 2.05" | 2.28" | IEC Miniature | €44.10 |
