WEG CWC07-01-30C02 13418613 Miniature Contactor, 7 A Rated, 3 NO Main Contact, 1 NC Aux Contact, 12V DC
Item: BC8HLJModel: CWC07-01-30C02Cross Ref: 13418613
7 In Stock
Ships within 2 days via
€36.25 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Contactor |
| Coil Type | Magnetic |
| Coil Voltage | 12V DC |
| Contact Type | NO |
| Control Voltage | 12V DC |
| Depth | 2.05" |
| Electrical Lifespan | 1.4 Million Cycles |
| Height | 2.28" |
| Main Contacts | NO |
| Max Hp 120v 1ph | 33/100 hp |
| Max Hp 200/208v 3ph | 1 1/2 hp |
| Max Hp 230/240v 1ph | 3/4 hp |
| Max Hp 230/240v 3ph | 1 1/2 hp |
| Max Hp 460/480v 3ph | 5 hp |
| Max Hp 575/600v 3ph | 5 hp |
| Max. Rated Operational Frequency | 25 Hz |
| Mechanical Lifespan (ac) | 10 Milion Cycles |
| Mechanical Lifespan (dc) | 12 Milion Cycles |
| Min. Rated Operational Frequency | 400 Hz |
| No. Of Contacts | 3 NO |
| Nominal Coil Voltage | 12V DC |
| Number Of Contacts | 2 |
| Rated Current | 7A |
| Rated Insulation Voltage | 690V |
| Rated Operational Amps Ie Ac-1 | 18A |
| Rated Operational Voltage | 690V |
| Terminal Type | Screw |
| Termination | Screw |
| Ul Motor Switching | 7A |
| Width | 1.77" |
Shipping Info:
| Ship weight (kg) | 0.23 |
| Ship height (cm) | 5.79 |
| Ship length (cm) | 5.21 |
| Ship width (cm) | 4.5 |
| Country of Origin | US |
Product Variants
| Product | Model | Number Of Poles | Depth | Height | Contactor Type | Price | |
|---|---|---|---|---|---|---|---|
 |

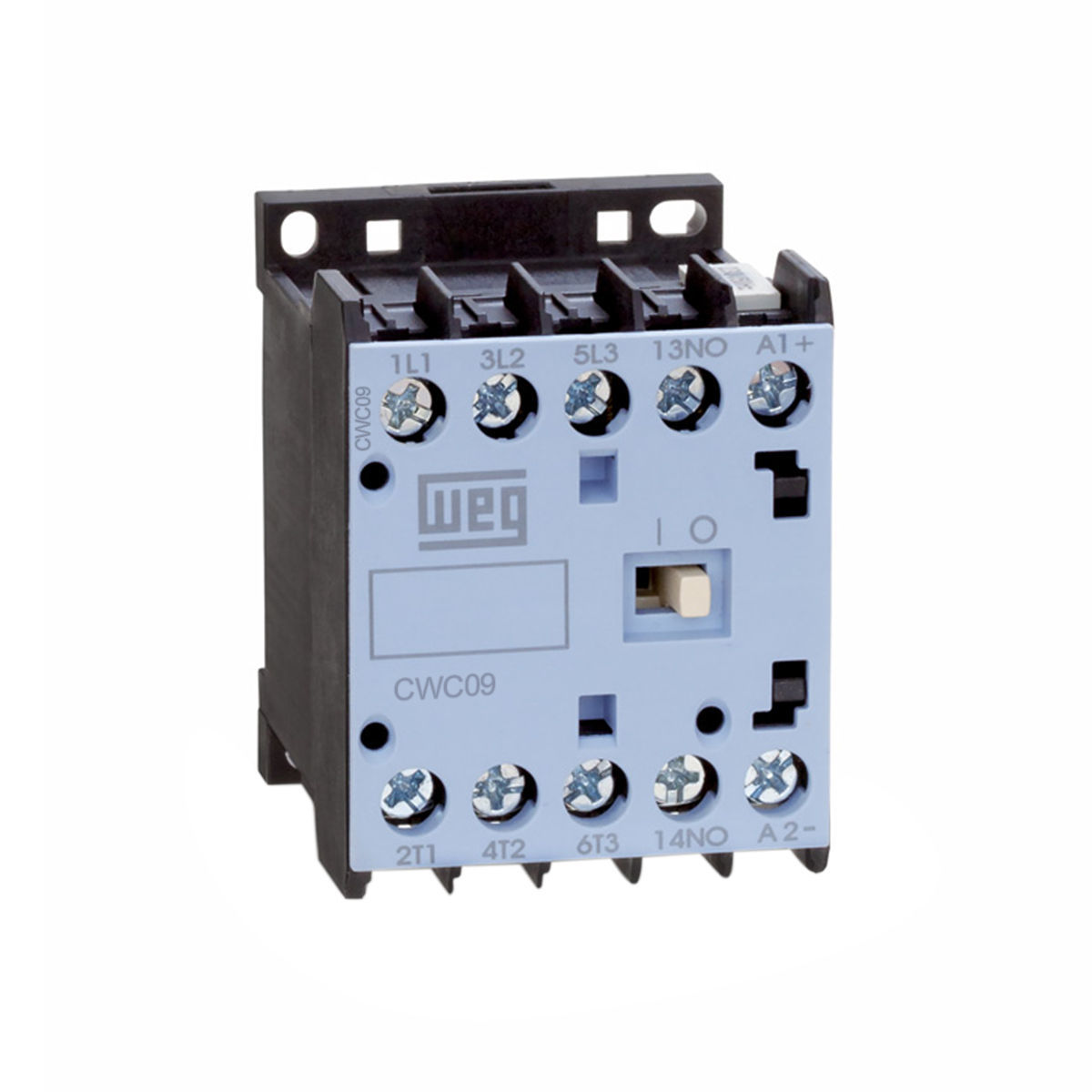

CWC09-01-30V24-X50 | - | 2.05" | 2.28" | - | €30.41 | |
|
CWC09-10-30V24-X50 | - | 2.05" | 2.28" | - | €30.41 | |
 |

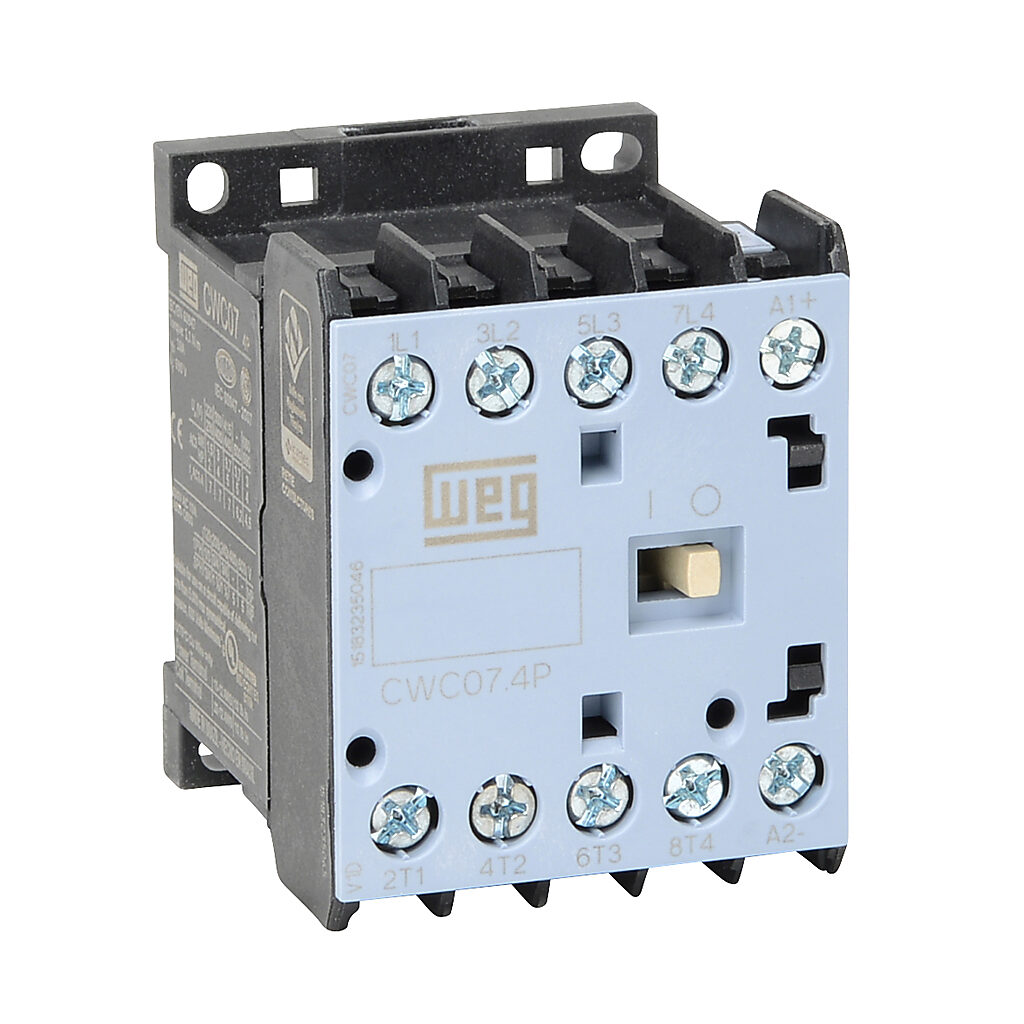

CWC07-00-40L03 | 4 | 2.05" | 2.28" | IEC Miniature | €36.25 | |
 |

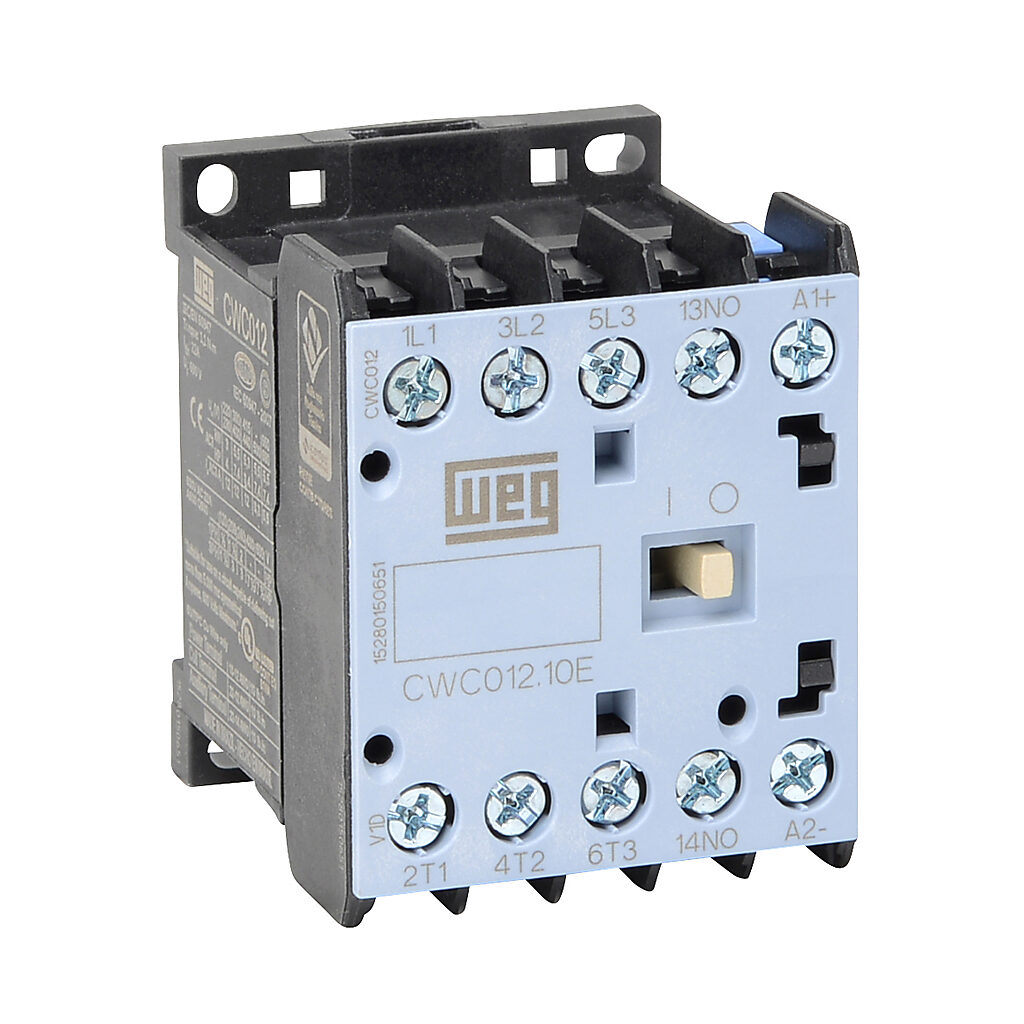

CWC012-10-30L02 | 3 | 2.05" | 2.28" | IEC Miniature | - | RFQ
|
 |

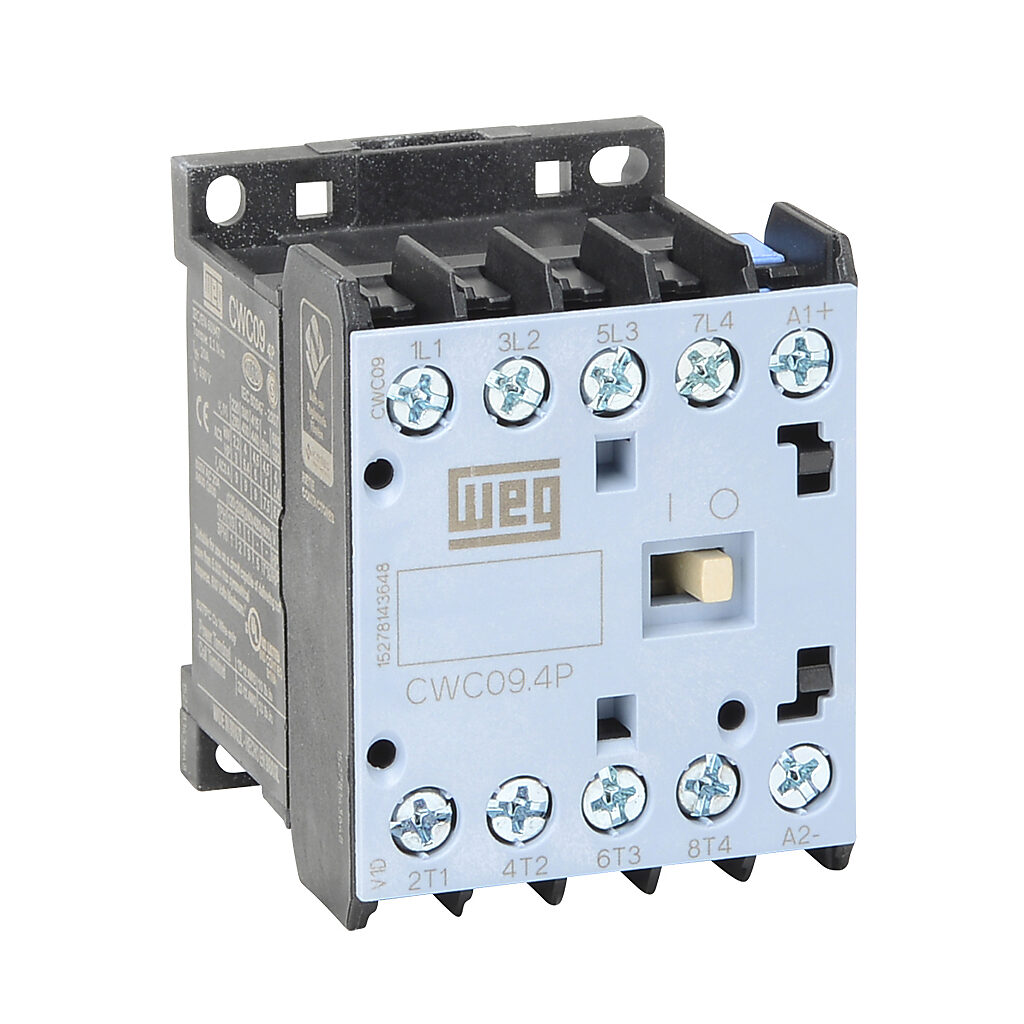

CWC09-00-40L03 | 4 | 2.05" | 2.28" | IEC Miniature | €44.10 | |
 |

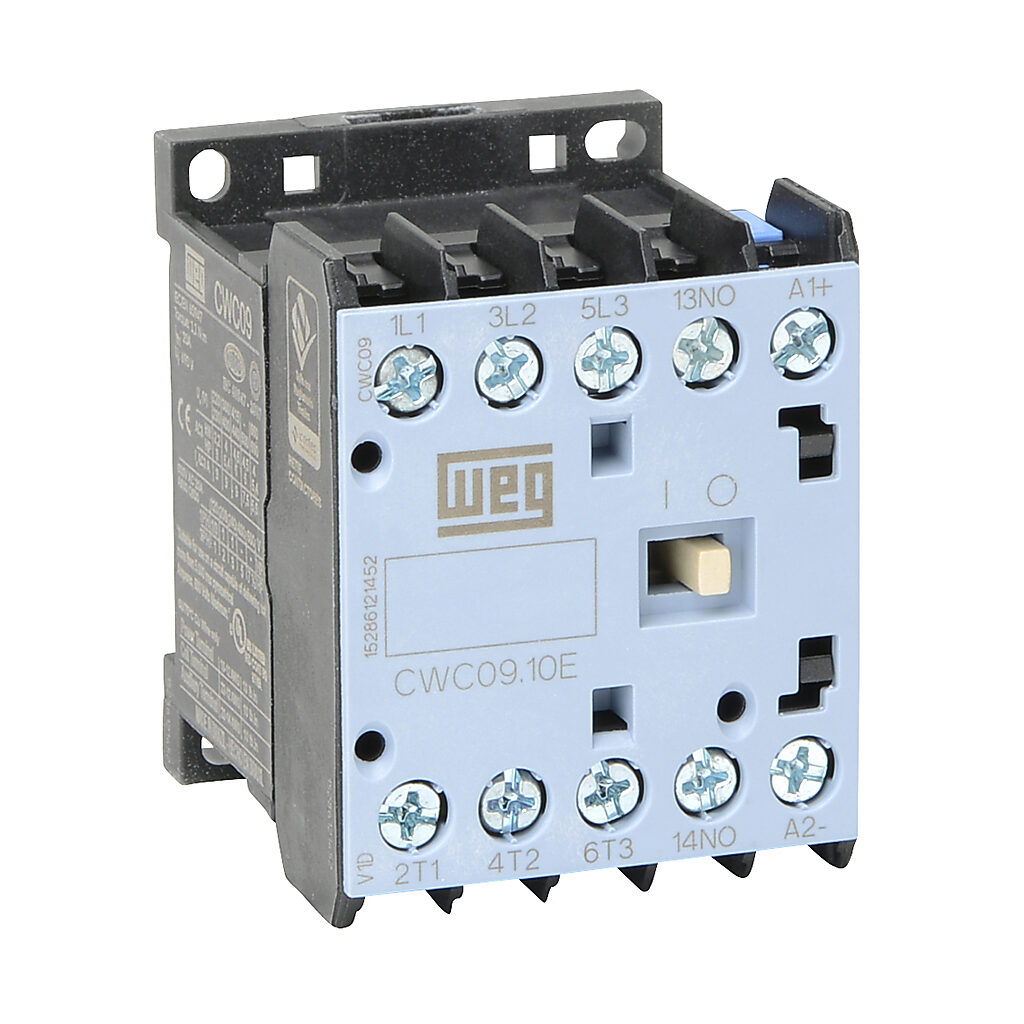

CWC09-10-30L02 | 3 | 2.05" | 2.28" | IEC Miniature | €43.20 | |
 |

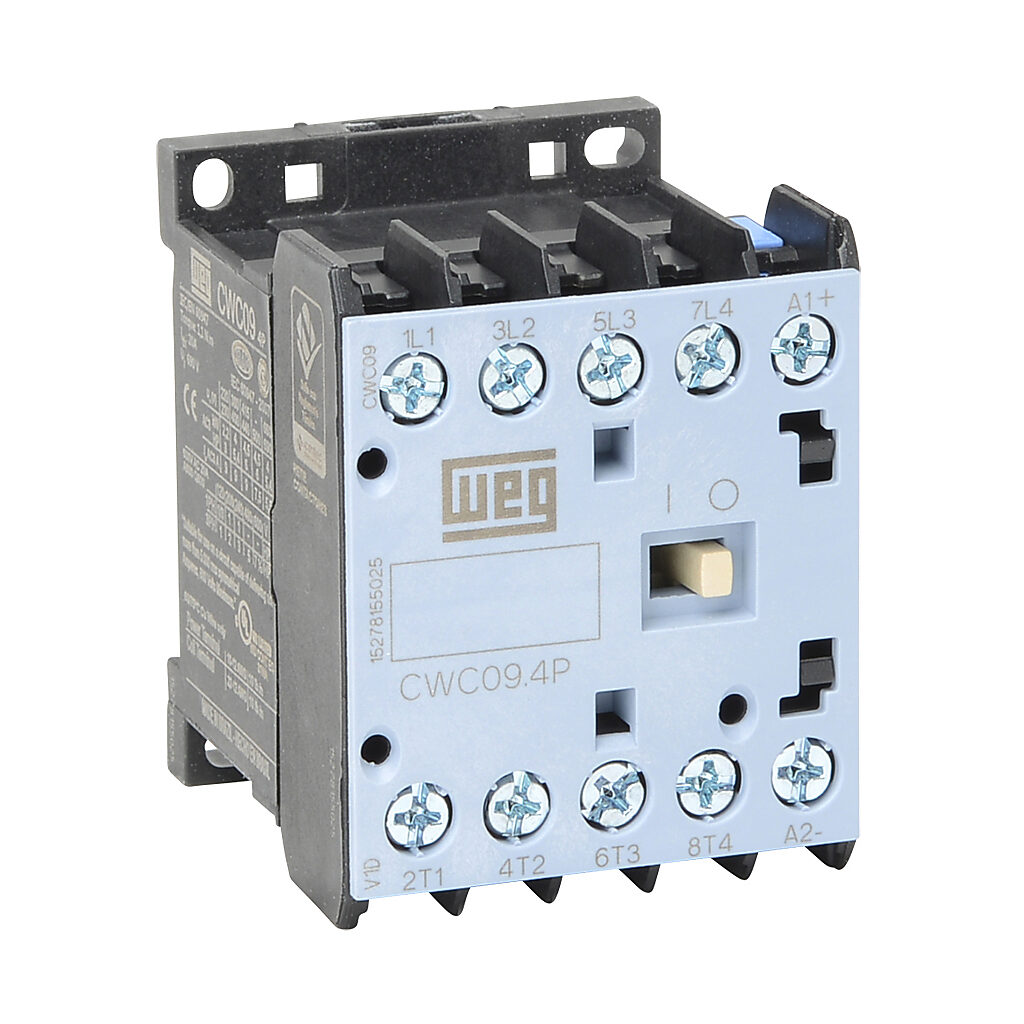

CWC09-00-40L02 | 4 | 2.05" | 2.28" | IEC Miniature | €44.10 |
