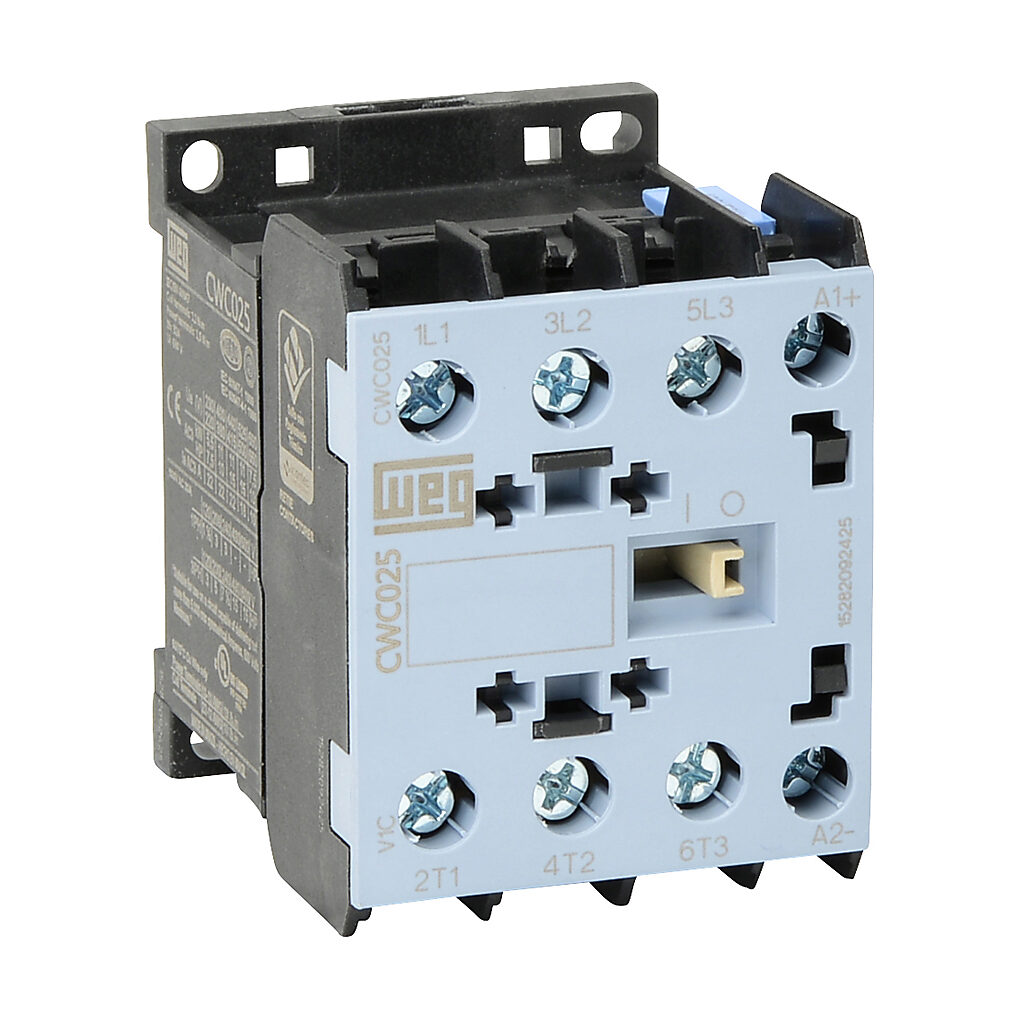

WEG CWC025-00-30V47 12679922 Miniature Contactor, 22 A Rated, 3 NO Main Contact, 400-415V 50Hz/480V 60Hz
Get it by Monday, Aug 24
€51.30 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Contactor |
| Actuator Type | Magnetic |
| Amps | 22A |
| Coil Frequency | 60 Hz |
| Coil Type | Magnetic |
| Coil Voltage | 480V AC |
| Contact Type | NO |
| Contactor Type | IEC Miniature |
| Control Voltage | 400-415/480V |
| Degree Of Protection Ip (iec 60529) - Control Circuit | IP20 |
| Degree Of Protection Ip (iec 60529) - Main Circuit | IP20 |
| Depth | 2.2" |
| Electrical Lifespan | 0.6 Million Cycles |
| Frequency | 60/50 Hz |
| Gross Weight | 0.44 lbs. |
| Height | 2.29" |
| Main Contact | 3 NO |
| Main Contacts | NO |
| Max. Rated Operational Frequency | 25 Hz |
| Mechanical Lifespan (ac) | 3 Milion Cycles |
| Mechanical Lifespan (dc) | Not Available |
| Min. Rated Operational Frequency | 400 Hz |
| No. Of Contacts | 2 , 3 NO |
| No. Of Poles | 3 |
| Nominal Coil Voltage | 480V AC |
| Power Poles | NO |
| Rated Insulation Voltage | 690V |
| Rated Insulation Voltage Ui (pollution Degree 3) | 600V |
| Rated Insulation Voltage Ui (pollution Degree 3)-iec 60974-4-1 | 690V |
| Rated Operational Amps | 32A |
| Rated Operational Voltage | 690V |
| Reference | CWC0 |
| Series | CWC Series |
| Terminal Type | Screw |
| Termination | Screw |
| Ul Motor Switching | 25A |
| Width | 1.77" |
Shipping Info:
| Ship weight (kg) | 0.19 |
| Ship height (cm) | 6.35 |
| Ship length (cm) | 9.4 |
| Ship width (cm) | 6.35 |
| Country of Origin | BR |
Product Variants
| Product | Model | Amps | Height | Control Voltage | Rated Operational Amps | Min. Rated Operational Frequency | Max. Rated Operational Frequency | Mechanical Lifespan (ac) | Mechanical Lifespan (dc) | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CWC09-01-30V24-X50 | 9A | 2.28" | 180-208/208-240V | 20A | 400 Hz | 25 Hz | 10 Milion Cycles | 12 Milion Cycles | €30.41 | |
|
CWC09-10-30V24-X50 | 9A | 2.28" | 180-208/208-240V | 20A | 400 Hz | 25 Hz | 10 Milion Cycles | 12 Milion Cycles | €30.41 | |
 |
CWC07-00-40L03 | 7A | 2.28" | 24V DC | 18A | 400 Hz | 25 Hz | 10 Milion Cycles | 12 Milion Cycles | €36.25 | |
 |
CWC012-10-30L02 | 12A | 2.28" | 12V DC | 22A | 400 Hz | 25 Hz | 10 Milion Cycles | 12 Milion Cycles | - | RFQ
|
 |
CWC09-00-40L03 | 9A | 2.28" | 24V DC | 20A | 400 Hz | 25 Hz | 10 Milion Cycles | 12 Milion Cycles | €44.10 | |
 |
CWC09-10-30L02 | 9A | 2.28" | 12V DC | 20A | 400 Hz | 25 Hz | 10 Milion Cycles | 12 Milion Cycles | €43.20 | |
 |
CWC09-00-40L02 | 9A | 2.28" | 12V DC | 20A | 400 Hz | 25 Hz | 10 Milion Cycles | 12 Milion Cycles | €44.10 |
