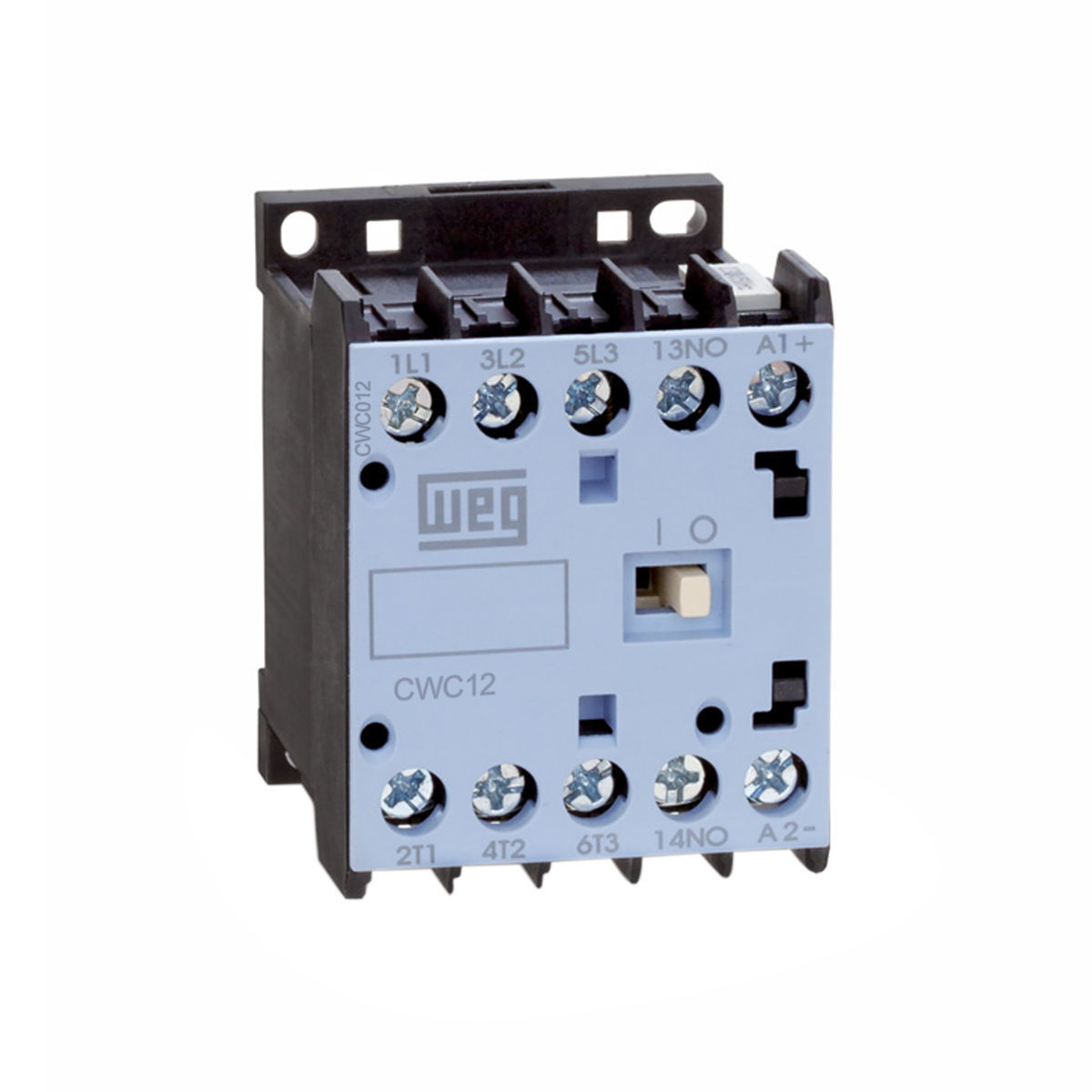

WEG CWC012-10-30C03 12486694 Miniature Contactor, 12 A Rated, 3 NO Main Contact, 1 NO Aux Contact, 24V DC
Item: BD4LYFModel: CWC012-10-30C03Cross Ref: 12486694
7 In Stock
Ships within 2 days via
€43.28 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Contactor |
| Amps | 12A |
| Coil Type | Magnetic |
| Coil Voltage | 24V DC |
| Contact Type | NO |
| Control Voltage | 24V DC |
| Degree Of Protection Ip (iec 60529) - Control Circuit | IP20 |
| Degree Of Protection Ip (iec 60529) - Main Circuit | IP20 |
| Depth | 2.05" |
| Electrical Lifespan | 1.2 Million Cycles |
| Gross Weight | 0.51 lbs. |
| Height | 2.28" |
| Main Contact | 3 NO |
| Main Contacts | NO |
| Max. Hp 120v 1ph | 1/2 hp |
| Max. Hp 200/208v 3ph | 3 hp |
| Max. Hp 230/240v 1ph | 2 hp |
| Max. Hp 230/240v 3ph | 3 hp |
| Max. Hp 460/480v 3ph | 7 1/2 hp |
| Max. Hp 575/600v 3ph | 7 1/2 hp |
| Max. Rated Operational Frequency | 25 Hz |
| Mechanical Lifespan (ac) | 10 Milion Cycles |
| Mechanical Lifespan (dc) | 12 Milion Cycles |
| Min. Rated Operational Frequency | 400 Hz |
| No. Of Contacts | 2 , 3 NO |
| Nominal Coil Voltage | 24V DC |
| Rated Insulation Voltage | 690V |
| Rated Insulation Voltage Ui (pollution Degree 3) | 600V |
| Rated Insulation Voltage Ui (pollution Degree 3)-iec 60974-4-1 | 690V |
| Rated Operational Amps | 22A |
| Rated Operational Voltage | 690V |
| Reference | CWC0 |
| Terminal Type | Screw |
| Termination | Screw |
| Ul Motor Switching | 12A |
| Width | 1.77" |
Shipping Info:
| Ship weight (kg) | 0.23 |
| Ship height (cm) | 5.79 |
| Ship length (cm) | 5.21 |
| Ship width (cm) | 4.5 |
| Country of Origin | US |
Product Variants
| Product | Model | Amps | Height | Control Voltage | Rated Operational Amps | Min. Rated Operational Frequency | Max. Rated Operational Frequency | Mechanical Lifespan (ac) | Mechanical Lifespan (dc) | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CWC09-01-30V24-X50 | 9A | 2.28" | 180-208/208-240V | 20A | 400 Hz | 25 Hz | 10 Milion Cycles | 12 Milion Cycles | €30.41 | |
|
CWC09-10-30V24-X50 | 9A | 2.28" | 180-208/208-240V | 20A | 400 Hz | 25 Hz | 10 Milion Cycles | 12 Milion Cycles | €30.41 | |
 |
CWC07-00-40L03 | 7A | 2.28" | 24V DC | 18A | 400 Hz | 25 Hz | 10 Milion Cycles | 12 Milion Cycles | €36.25 | |
 |
CWC012-10-30L02 | 12A | 2.28" | 12V DC | 22A | 400 Hz | 25 Hz | 10 Milion Cycles | 12 Milion Cycles | - | RFQ
|
 |
CWC09-00-40L03 | 9A | 2.28" | 24V DC | 20A | 400 Hz | 25 Hz | 10 Milion Cycles | 12 Milion Cycles | €44.10 | |
 |
CWC09-10-30L02 | 9A | 2.28" | 12V DC | 20A | 400 Hz | 25 Hz | 10 Milion Cycles | 12 Milion Cycles | €43.20 | |
 |
CWC09-00-40L02 | 9A | 2.28" | 12V DC | 20A | 400 Hz | 25 Hz | 10 Milion Cycles | 12 Milion Cycles | €44.10 |
