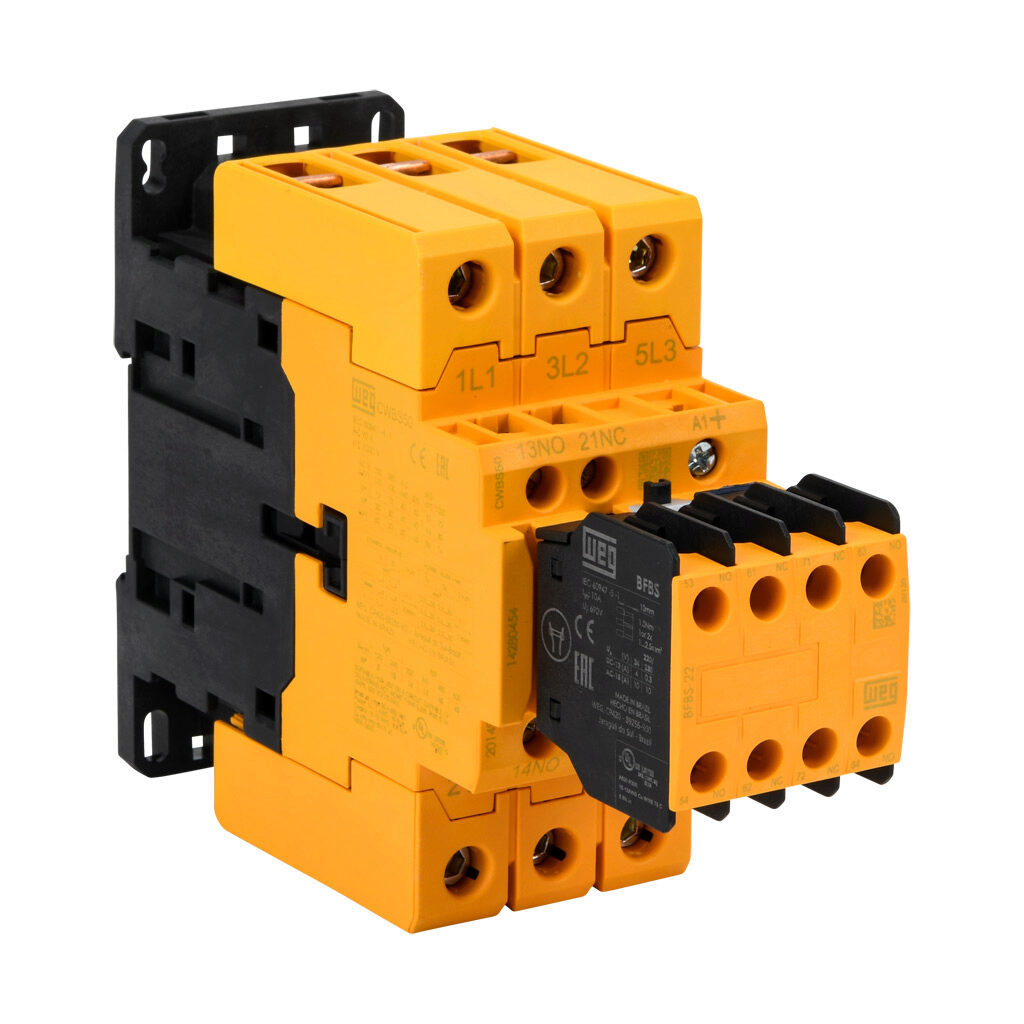

WEG CWBS50-33-30C03 14280454 Contactor, 50 A Rated, 3 NO Main Contact, 3-NO, 3-NC Aux Contact, 24V DC
Item: CV6NTRModel: CWBS50-33-30C03Cross Ref: 14280454
7 In Stock
Ships within 2 days via
€381.15 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Contactor |
| Actuator Type | Magnetic |
| Auxiliary Contacts | NO/NC |
| Coil Voltage | 24V DC |
| Contactor Type | IEC Safety |
| Control Voltage | 24V DC |
| Depth | 6.28" |
| Electrical Lifespan | 1.6 Million Cycles |
| Height | 4.53" |
| Horsepower Rating | 40 hp |
| Main Contacts | NO |
| Max. Rated Operational Frequency | 25 Hz |
| Mechanical Lifespan (ac) | 6 Milion Cycles |
| Mechanical Lifespan (dc) | 6 Milion Cycles |
| Min. Rated Operational Frequency | 400 Hz |
| Mounting | Din Rail, Panel |
| Mounting Size | 35 mm |
| No. Of Aux Contacts | 6 |
| No. Of Contacts | 3 NO |
| Number Of Poles | 3 |
| Power Poles | NO |
| Product Datasheet | weg-cwbs12-33-30c03.pdf |
| Rated Current | 50A |
| Rated Insulation Voltage | 1000V |
| Rated Operational Amps Ie Ac-1 | 90A |
| Rated Operational Voltage | 1000V |
| Sccr Rating | 5 kA |
| Series | CWBS Series |
| Terminal Type | Screw |
| Width | 2.13" |
Shipping Info:
| Ship weight (kg) | 1.06 |
| Ship height (cm) | 11.51 |
| Ship length (cm) | 15.95 |
| Ship width (cm) | 5.41 |
| Country of Origin | BR |
