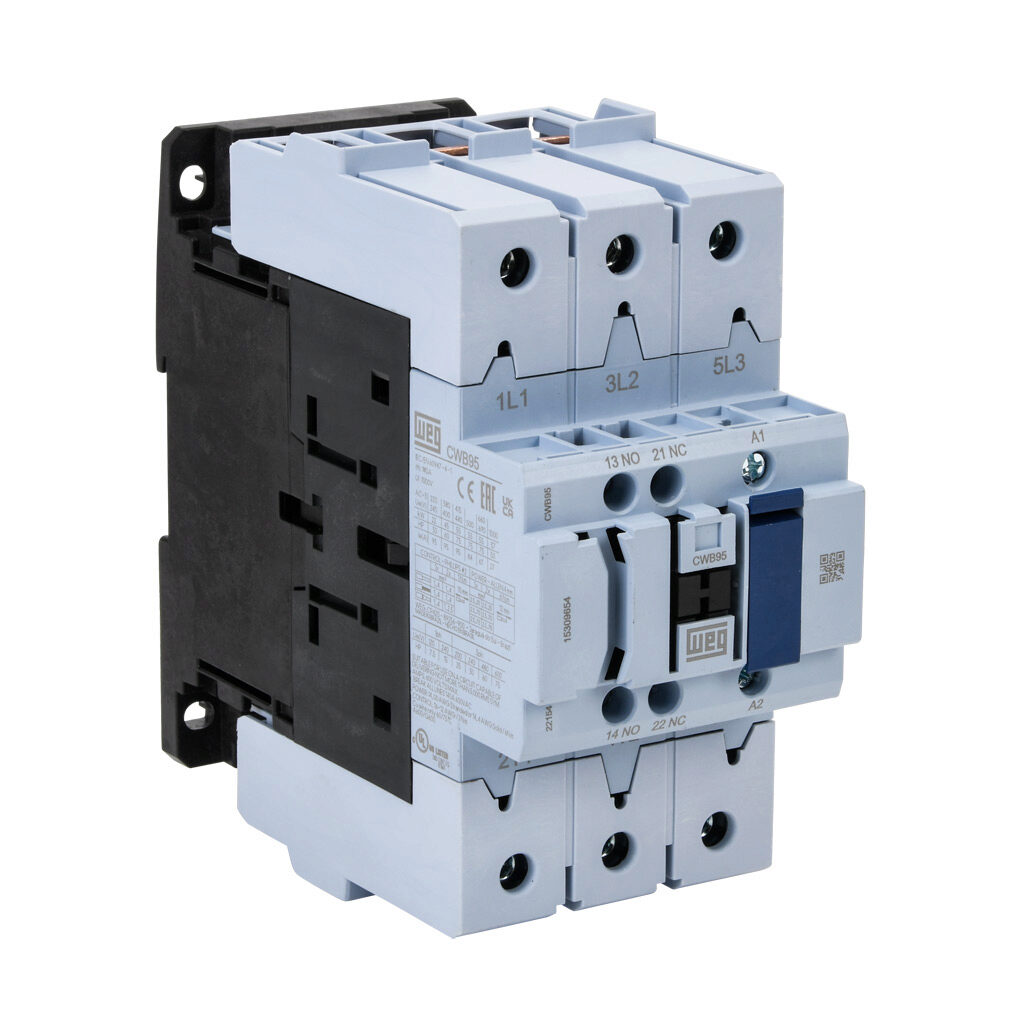

WEG CWB95-11-30D15 15309654 Iec Contactor, 95A, N.O. Power Poles, 1 N.O./1 N.C. Auxiliary Contacts
Item: CV6TBXModel: CWB95-11-30D15Cross Ref: 15309654
7 In Stock
Ships within 2 days via
€252.95 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | IEC Magnetic Contactor |
| Actuator Type | Magnetic |
| Amps | 95A |
| Auxiliary Contacts | NO/NC |
| Coil Frequency | 50/60 Hz |
| Coil Voltage | 120V AC |
| Contactor Type | IEC |
| Control Voltage | 120V |
| Depth | 5.67" |
| Electrical Lifespan | 1.1 Million Cycles |
| Frequency | 60/50 Hz |
| Height | 5.87" |
| Hp | 75 hp |
| Main Contacts | NO |
| Max. Rated Operational Frequency | 25 Hz |
| Mechanical Lifespan (ac) | 6 Milion Cycles |
| Mechanical Lifespan (dc) | 6 Milion Cycles |
| Min. Rated Operational Frequency | 400 Hz |
| Mounting | DIN Rail, Panel |
| Mounting Size | 35 mm |
| No. Of Contacts | 3 NO |
| No. Of Poles | 3 |
| Power Poles | NO |
| Product Datasheet | weg-cwbs12-33-30c03.pdf |
| Rated Insulation Voltage | 1000V |
| Rated Operational Amps | 140A |
| Rated Operational Voltage | 1000V |
| Sccr Rating | 5 kA |
| Series | CWB Series |
| Terminal Type | Screw |
| Width | 2.834" |
Shipping Info:
| Ship weight (kg) | 1.66 |
| Ship height (cm) | 14.91 |
| Ship length (cm) | 14.4 |
| Ship width (cm) | 7.2 |
| Country of Origin | BR |
