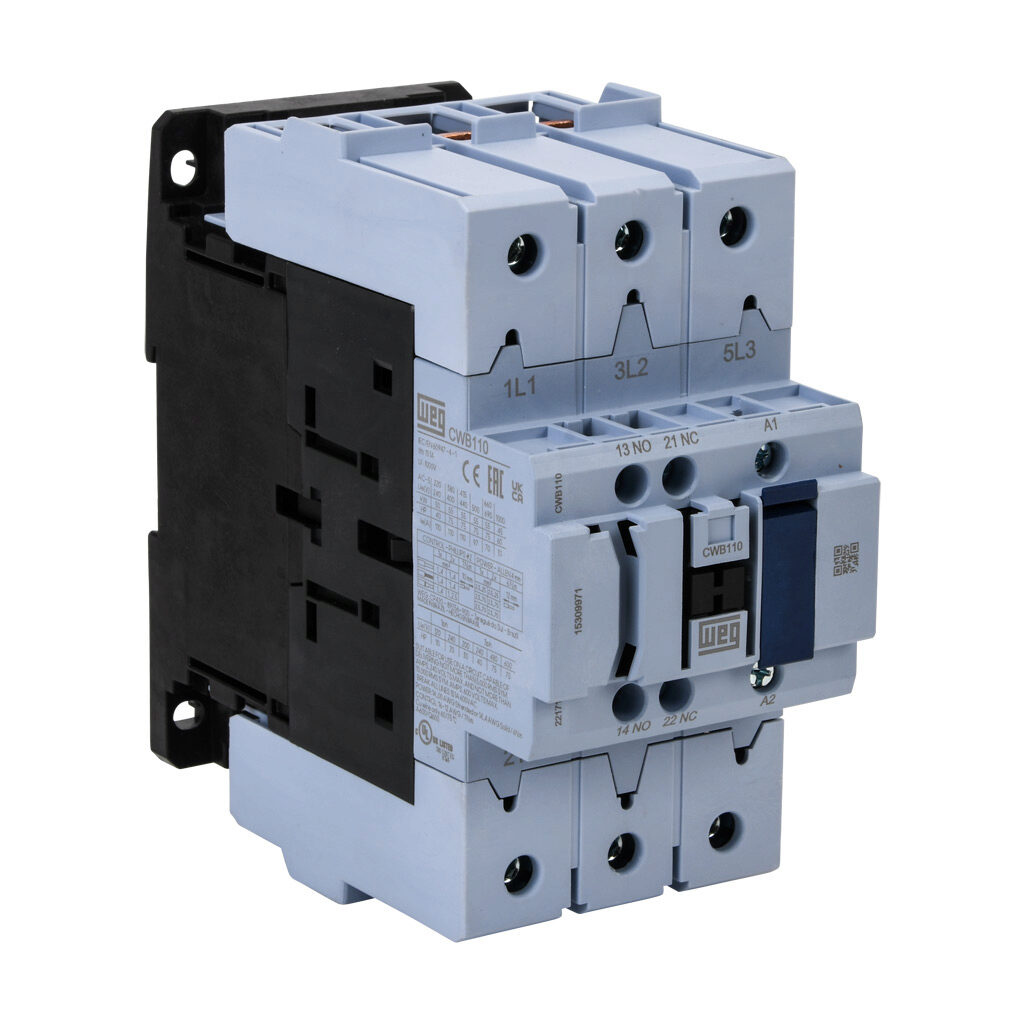

WEG CWB110-11-30D15 15309971 Contactor, 110 A Rated, 3 NO Main Contact, 1 NO, 1 NC Aux Contact, 120V 50/60Hz
Item: CV6TAZModel: CWB110-11-30D15Cross Ref: 15309971
7 In Stock
Ships within 2 days via
€291.06 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | IEC Magnetic Contactor |
| Actuator Type | Magnetic |
| Amps | 110A |
| Auxiliary Contacts | NO/NC |
| Coil Frequency | 50/60 Hz |
| Coil Voltage | 120V AC |
| Contact Type | NO |
| Contactor Type | IEC |
| Control Frequency | 50/60 Hz |
| Control Voltage | 120V |
| Degree Of Protection Ip (iec 60529) - Control Circuit | IP20 |
| Degree Of Protection Ip (iec 60529) - Main Circuit | IP10 |
| Depth | 5.688" |
| Electrical Lifespan | 1.1 Million |
| Height | 149 mm |
| Hp | 75 hp |
| Main Contact | 3 NO |
| Max. Rated Operational Frequency | 400 Hz |
| Mechanical Lifespan (ac) | 6 Million |
| Mechanical Lifespan (dc) | 6 Million |
| Min. Rated Operational Frequency | 25 Hz |
| Mounting | DIN Rail, Panel |
| Mounting Size | 35 mm |
| No. Of Contacts | 2 |
| No. Of Poles | 3 |
| Power Poles | NO |
| Product Datasheet | weg-cwbs12-33-30c03.pdf |
| Rated Insulation Voltage Ui (pollution Degree 3) | 600V |
| Rated Insulation Voltage Ui (pollution Degree 3)-iec 60974-4-1 | 1000V |
| Rated Operational Amps | 151A |
| Rated Operational Voltage | 1000V |
| Reference | CWB |
| Sccr Rating | 5 kA |
| Series | CWB Series |
| Terminal Type | Screw |
| Width | 72 mm |
Shipping Info:
| Ship weight (kg) | 1.67 |
| Ship height (cm) | 14.91 |
| Ship length (cm) | 14.45 |
| Ship width (cm) | 7.2 |
| Country of Origin | BR |
Documentation:
