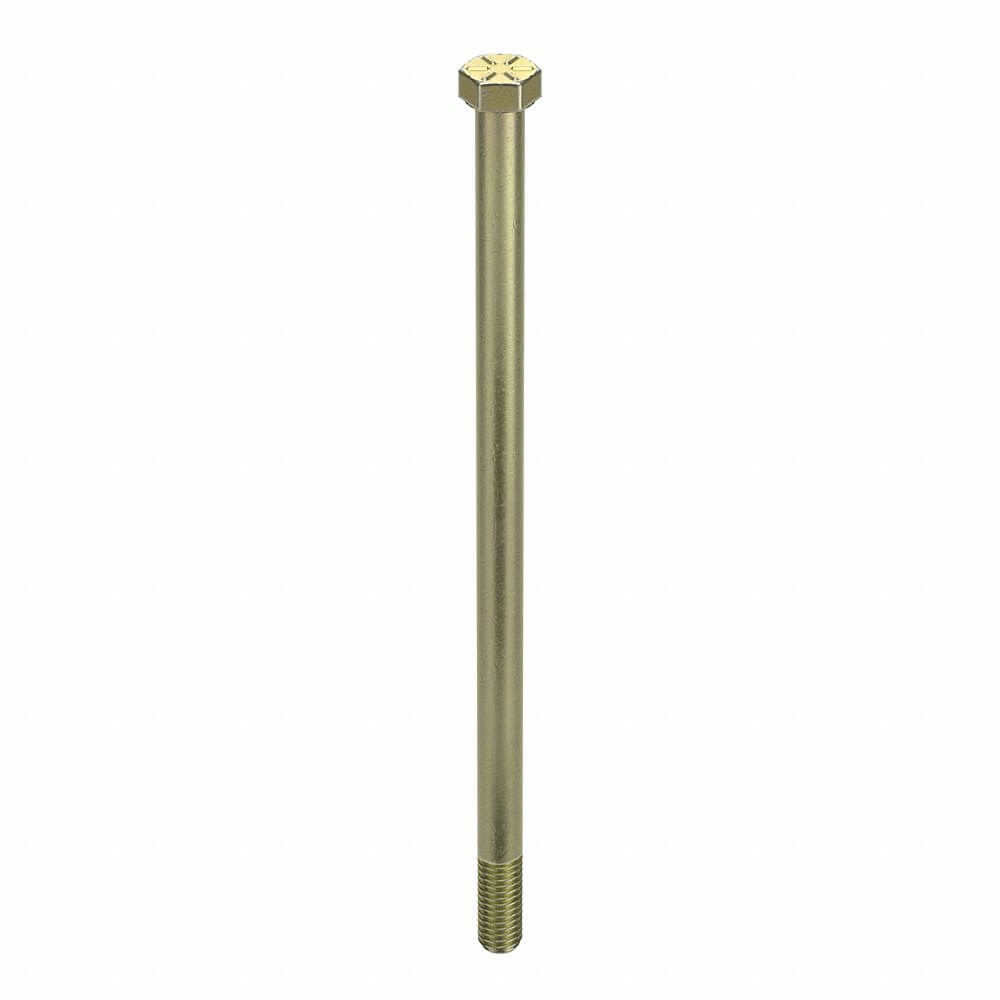

GRAINGER N04104.037.0800 Hex Head Cap Screw, 3/8 In - 16 Thread Size, Steel, 8 In Lg., 15/64 In Head Ht., Gr. 8
Item: AH8VBGModel: N04104.037.0800Cross Ref: 38ZX29
7 In Stock
Ships within 2 days via
5.00% off
€20.69 /pkg. of 5
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Hex Head Cap Screw |
| Class | Not Applicable |
| Drive | Hex |
| Fastener Length | 8" |
| Finish | Zinc Yellow |
| Grade | Grade 8 |
| Hardness | Rockwell C33-C39 |
| Head Height | 15/64" |
| Head Style | Hex |
| Head Type | Hex |
| Head Width | 9/16" |
| Hex Head Cap Screw Type | Hex Head Cap Screw |
| Length | 8" |
| Material | Steel |
| Material Grade/class | Grade 8 |
| Material Quality Standards | Sae J429 |
| Min. Thread Length | 1-1/4" |
| Min. Thread Length | 1 1/4" |
| Overall Length | 8" |
| Rockwell Hardness | Hrc33 |
| System Of Measurement | Imperial |
| Tensile Strength | 150000 psi |
| Thread Direction | Right Hand |
| Thread Fit | 2A |
| Thread Length | 1 1/4" |
| Thread Size | 3/8"-16 |
| Thread Style | Partially Threaded |
| Thread Type | Coarse |
Shipping Info:
| Ship weight (kg) | 0.58 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 32.99 |
| Ship width (cm) | 17.2 |
| Country of Origin | US |
Product Variants
| Product | Model | Thread Style | Thread Length | Fastener Length | Min. Thread Length | Head Height | Head Width | Thread Direction | Material Grade/class | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
U04104.037.0125 | Fully Threaded | 1 1/4" | 1 1/4" | 1 1/4" | 15/64" | 9/16" | Right Hand | Grade 8 | 50 | €19.15 | |
 |
U04104.037.0150 | Partially Threaded | 1" | 1 1/2" | 1" | 15/64" | 9/16" | Right Hand | Grade 8 | 50 | €29.70 | |
 |
U04104.037.0175 | Partially Threaded | 1" | 1 3/4" | 1" | 15/64" | 9/16" | Right Hand | Grade 8 | 50 | €25.81 | |
 |
U04104.037.0225 | Partially Threaded | 1" | 2 1/4" | 1" | 15/64" | 9/16" | Right Hand | Grade 8 | 25 | €19.30 | |
|
U04104.037.0250 | Partially Threaded | 1" | 2 1/2" | 1" | 15/64" | 9/16" | Right Hand | Grade 8 | 25 | €22.21 | |
 |
U04104.037.0350 | Partially Threaded | 1" | 3 1/2" | 1" | 15/64" | 9/16" | Right Hand | Grade 8 | 25 | €34.19 | |
 |
U04104.037.0400 | Partially Threaded | 1" | 4" | 1" | 15/64" | 9/16" | Right Hand | Grade 8 | 10 | €13.31 |
