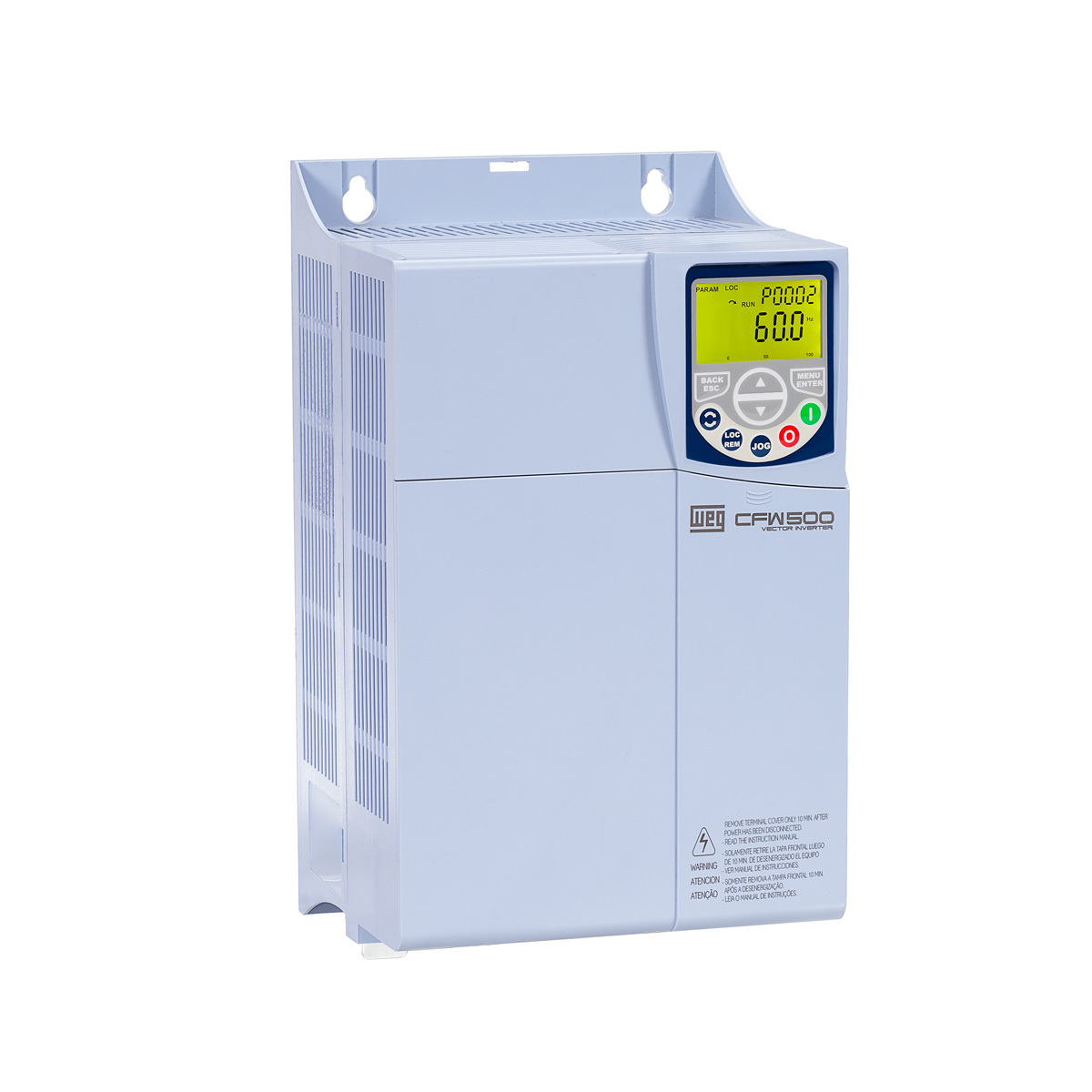

WEG CFW500D33P0T2DB20G2 15576432 Variable Speed Drive, 200-240V, Heavy Duty 33 A, IP20
Get it by Tuesday, Aug 25
€1,669.28 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Drive |
| Ac Line Option | Non-Switched |
| Braking | Dynamic |
| Configuration | With options |
| Conformal Coating | 3C2 , 3C2 (IEC 60721-3-3:2002) |
| Control Method - Induction Motor | V/F, VVW, Sensorless, Encoder And VVW PM |
| Direction Controls | Forward, Stop, Reverse |
| Display | Numeric LCD |
| Dynamic Braking | Standard With Braking |
| Electronic Supply | Not Available |
| Enclosure Rating | IP20 |
| Encoder Input | Optional |
| Environment | Panel Mount |
| Frequency | 50/60 Hz |
| Input Phase | 3 |
| Input Voltage | 200-240V |
| Link Inductor | No |
| Memory Card | Not Included In The Product |
| Output Voltage | 220-230V |
| Power Supply | 200-240V |
| Rated Amps (hd) | 33A |
| Rated Amps (nd) | Not Applicable |
| Rated Efficiency | Greater Than Equal to 97% |
| Rfi Filter | Without Filter |
| Safety Stop | Prepared To Install The Accessory CW500-SFY2 |
| Softplc | Yes, Incorporated |
| Stop/run | Key Pad |
| Temp. | -10°C to +50°C |
| Usb Port | Only With Plug-In |
Shipping Info:
| Ship weight (kg) | 7.13 |
