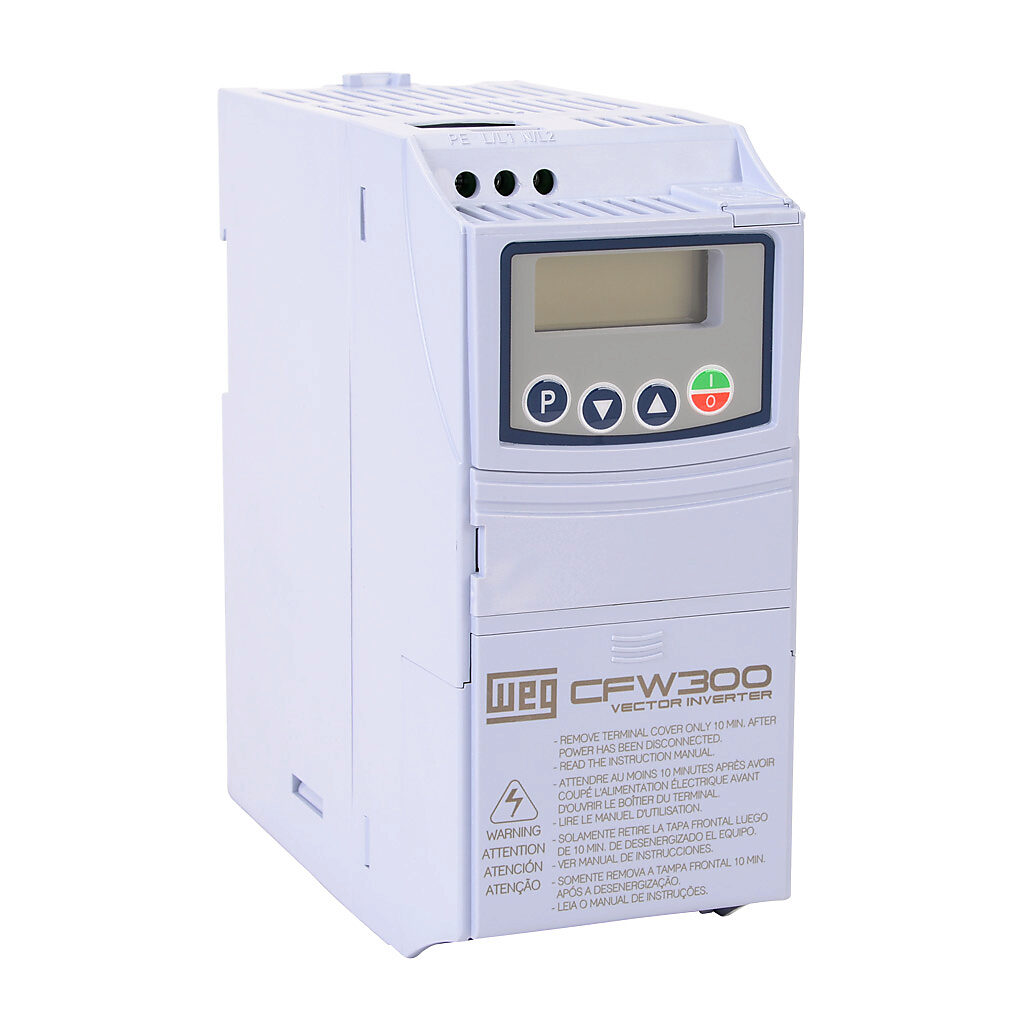

WEG CFW300A06P0T2NB20 Variable Frequency Drive, 6.0 A, 1.5 HP, 3 Phase, 230 V, No Brake
Get it by Tuesday, Apr 7
€304.20 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Drive Unit |
| Ac Line Option | Non Switched |
| Analog Input Signal Type | Current/Voltage |
| Braking | None |
| Carrier Frequency Range | 2.5-15 kHz |
| Connector Type | Screw Terminal |
| Controller Type | General Purpose |
| Direction Controls | Forward/Stop/Reverse |
| Discrete Input Type | Sinking, Sourcing |
| Discrete Output Type | Relay |
| Dynamic Braking | Standard Without braking |
| Enclosure Type | Enclosed |
| Encoder Input | Optional |
| Environment | Panel Mount |
| For Use With | 3-Phase Induction Motors |
| Frame Size | A |
| Frequency | 50/60 Hz |
| Fuse Type | User Supplied External Fuse |
| Horsepower By Input Phase | 1 1/2 hp |
| Input Current Signal Range | 4A |
| Input Phase | 3 |
| Input Resolution | 10 bits |
| Input Signal | 4-20 mA |
| Input Signal Type | Voltage or Potentiometer |
| Input Voltage | 230V AC |
| Input Voltage Signal Range | 0-10V DC |
| Internally Bypassed | No |
| Ip Enclosure Rating | IP20 |
| Ip Rating | IP20 |
| Load Current | 0.5A |
| Mounting | Din Rail, Panel, Wall |
| Mounting Size | 35 mm |
| No. Of Analog Input Channels | 1 |
| No. Of Discrete Output Points | 1 |
| No. Of Input Channels | 1 |
| No. Of Input Phase | 3 |
| No. Of Input Phases | 3 |
| No. Of Isolated Discrete Output Commons | 1 |
| No. Of Non-isolated Discrete Input Commons | 1 |
| No. Of Output Phases | 3 |
| No. Of Points Per Discrete Input Common | 4 |
| Nominal Discrete Input Voltage | 24V DC |
| Nominal Discrete Output Voltage | 240V AC |
| Nominal Drive Input Voltage | 230V AC |
| Nominal Drive Output Voltage | 230V AC |
| Number Of Discrete Input Points | 4 |
| Number Of Non-isolated Analog Input Commons | 1 |
| Number Of Points Per Analog Input Common | 1 |
| Number Of Points Per Discrete Output Common | 1 |
| Output Amps | 6A |
| Output Frequency Range | 0.1-400 Hz |
| Output Kw | 1.5 kW |
| Output Phase | 3 |
| Output Type | PWM |
| Output Voltage | 230V AC |
| Phase | 3 |
| Power Supply | 200-240V |
| Rated Amps (hd) | 6A |
| Rated Current (nd) | 6A |
| Reverse Capability | Built-In |
| Rfi Filter Option | Optional |
| Sccr Rating | 65 kA |
| Series | CFW300 Series |
| Speed Potentiometer | Optional |
| Temp. Rating | 0°C to 50°C |
| Voltage Type | AC |
Shipping Info:
| Ship weight (kg) | 0.9 |
| Ship height (cm) | 15.8 |
| Ship length (cm) | 14.83 |
| Ship width (cm) | 7.01 |
| Country of Origin | BR |
Product Variants
| Product | Model | Input Voltage | Input Phase | Output Amps | Output Voltage | Output Phase | Enclosure Type | Output Type | Hp | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CFW300A01P6S1NB20 | 115V AC | 1 | 1.6A | 230V AC | 3 | Enclosed | PWM | 1/4 hp to 1/3 hp | €226.80 | |
 |
CFW300A01P6S2NB20 | 230V AC | 1 | 1.6A | 230V AC | 3 | Enclosed | PWM | 1/4 hp to 1/3 hp | €203.40 | |
 |
CFW300A01P6T2NB20 | 230V AC | 3 | 1.6A | 230V AC | 3 | Enclosed | PWM | 1/4 hp to 1/3 hp | €216.00 |
