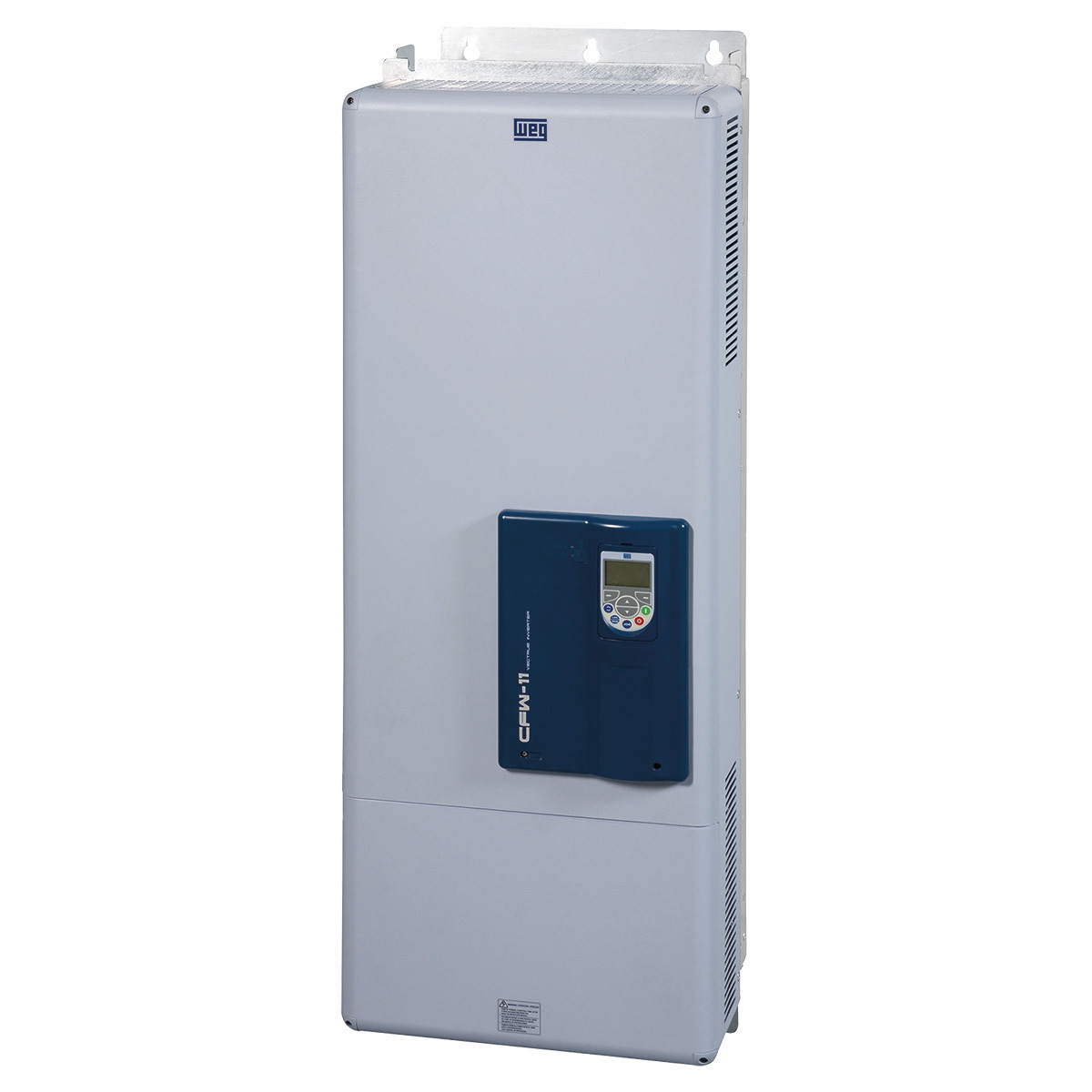

WEG CFW110477T4SZ-PGM 14396173 Multi Drive Pump System, 477 Amps Line, F Frame Size, 380-480V
Get it by Tuesday, Aug 25
€40,402.43 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Drive |
| Ac Line Option | Non-Switched |
| Accessories/options | Pump Genius Memory Stick |
| Communication Module | RS485-01 |
| Conformal Coating | 3c2 |
| Direction Controls | Forward, Stop, Reverse |
| Enclosure Ip | IP20 |
| Enclosure Nema | NEMA1 |
| Encoder Input | Not Available |
| Environment | Indoor |
| Frame Size | F |
| Frequency | 50/60 Hz |
| Hd Amps 60s | 555A |
| Hd Output Amps | 370A |
| Line Amps | 477A |
| Line Frequency | 50/60 Hz |
| Line Voltage | 380-480V |
| Max. Ambient Temp. | 113°F |
| Nd Amps 60s | 525A |
| Nd Output Amps | 477A |
| Output Amps | 370A |
| Output Frequency | 0-300 Hz |
| Output Phase | 3 |
| Special Software | Pump Genius Multiplex |
| Standard I/o+ | RS-485 |
| Stop/run | Key Pad |
Shipping Info:
| Ship weight (kg) | 139.05 |
