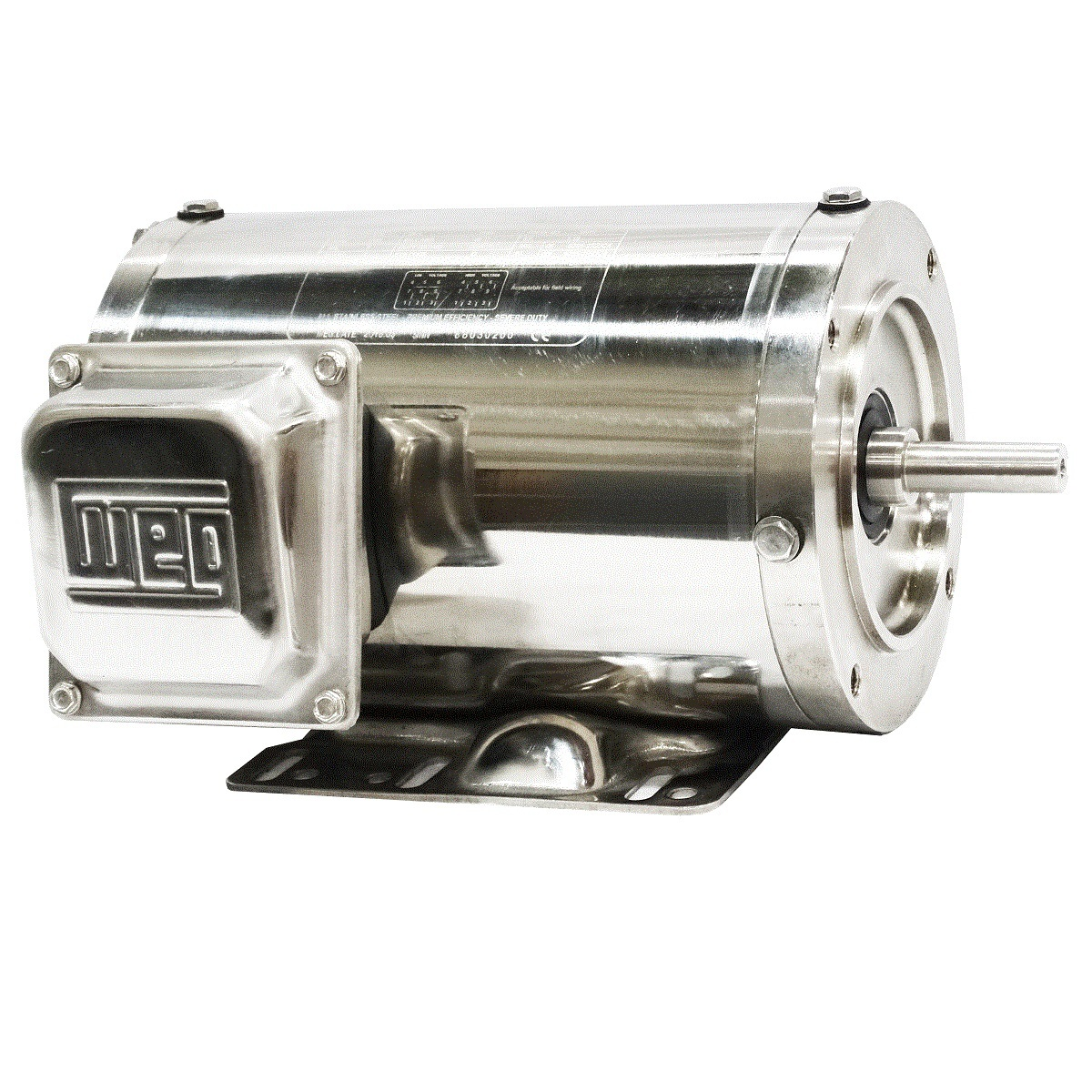

WEG .7536EP3ESS56C 14418917 Washdown Motor, 0.75 HP, 2 Poles, 56C Frame, 230/460 V, 60 Hz, TENV, Foot Mounted
0.75 hp
56C
3600 rpm
Get it by Tuesday, Jun 30
€824.84 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Electric Motor |
| Application | Washdown Stainless |
| Body Design | Rolled Stainless Steel |
| Ct Speed Range | 2:1 |
| Efficiency | 75.5% , High Efficiency |
| Enclosure | Tenv |
| Enclosure Iec | IP56 |
| Enclosure Nema Rating | Totally Enclosed Non Ventilated |
| Feet | Yes |
| Flange | C |
| Frame | 56C |
| Frame Material | Stainless Steel |
| Frame Size | 56C |
| Frequency | 60 Hz |
| Hp | 3/4 hp |
| Inverter Rating | Inverter Duty |
| Motor Application | Shark |
| Mounting | Foot Mounted |
| Mounting Arrangement | F1 |
| Nema Frame | NEMA 56C |
| Nema Mount | C Face With Base |
| No. Of Poles | 2 |
| Output Hp | 3/4 hp |
| Output Kw | 0.55 kW |
| Output Rating | 3/4 hp |
| Output Speed | 3410 RPM |
| Phase | 3 |
| Service Factor | 1.15 |
| Speed | 3600 RPM |
| Synchronous Speed | 3600 RPM |
| Temp. Code | T3 = 200°C |
| Terminal Box | Left Position |
| Voltage | 230/460V |
Shipping Info:
| Ship weight (kg) | 13.5 |
| Ship height (cm) | 25.4 |
| Ship length (cm) | 28.58 |
| Ship width (cm) | 25.4 |
| Country of Origin | BR |
Product Variants
| Product | Model | Voltage | Hp | Frame | Efficiency | Synchronous Speed | Output Rating | Output Kw | No. Of Poles | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
.5018EP3ESS56C | 230/460V | 1/2 hp | 56C | 77% | 1800 RPM | 1/2 hp | 0.37 kW | 4 | €842.99 | |
|
.7518EP3ESS56C | 230/460V | 3/4 hp | 56C | 78% | 1800 RPM | 3/4 hp | 0.55 kW | 4 | €966.54 | |
|
.5036EP3ESS56C | 230/460V | 1/2 hp | 56C | 74% | 3600 RPM | 1/2 hp | 0.37 kW | 2 | €748.53 | |
 |

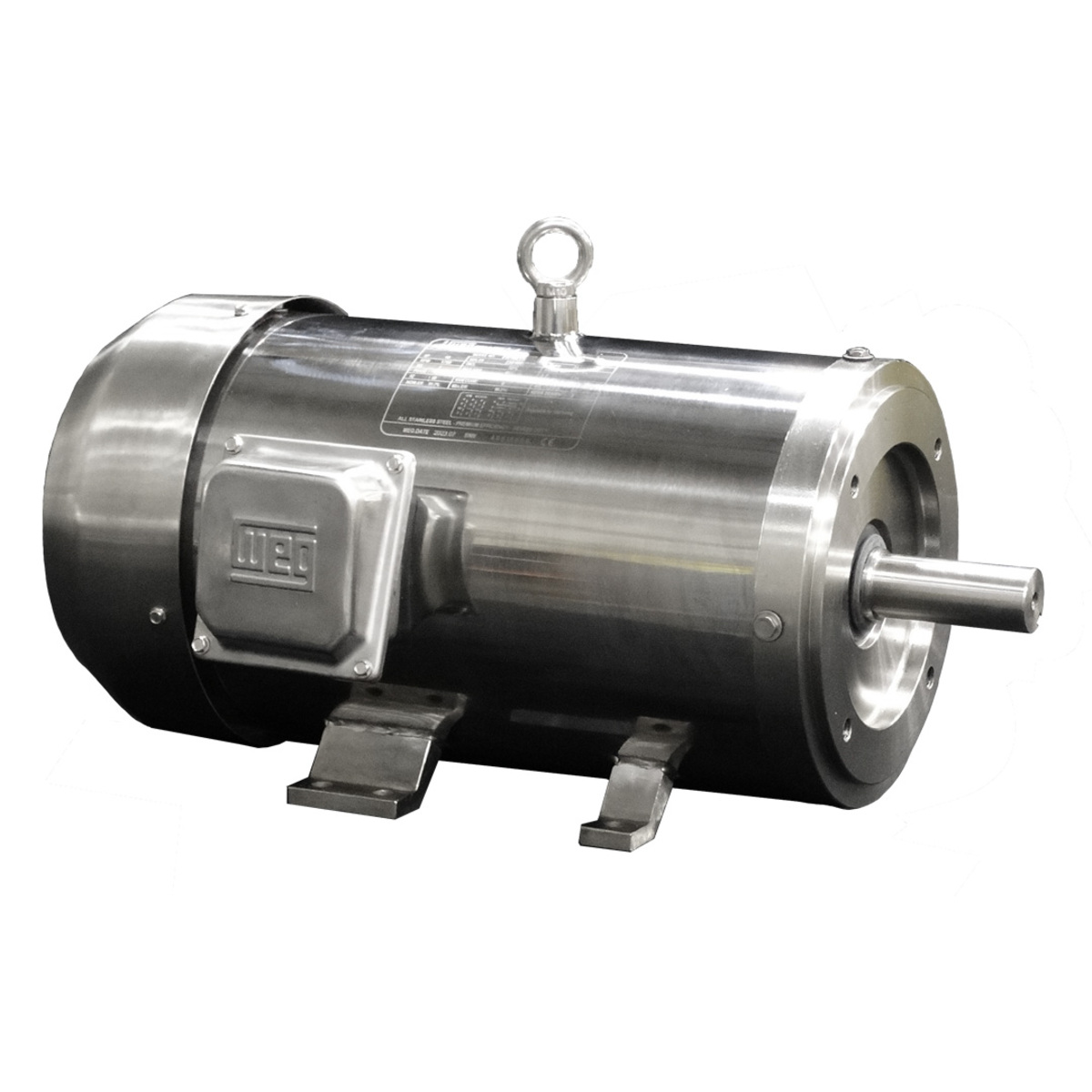

00736ET3ESS213TC | 208-230/460V | 7 1/2 hp | 213TC | 89.7% | - | - | 5.5 kW | - | €3,963.24 | |
 |

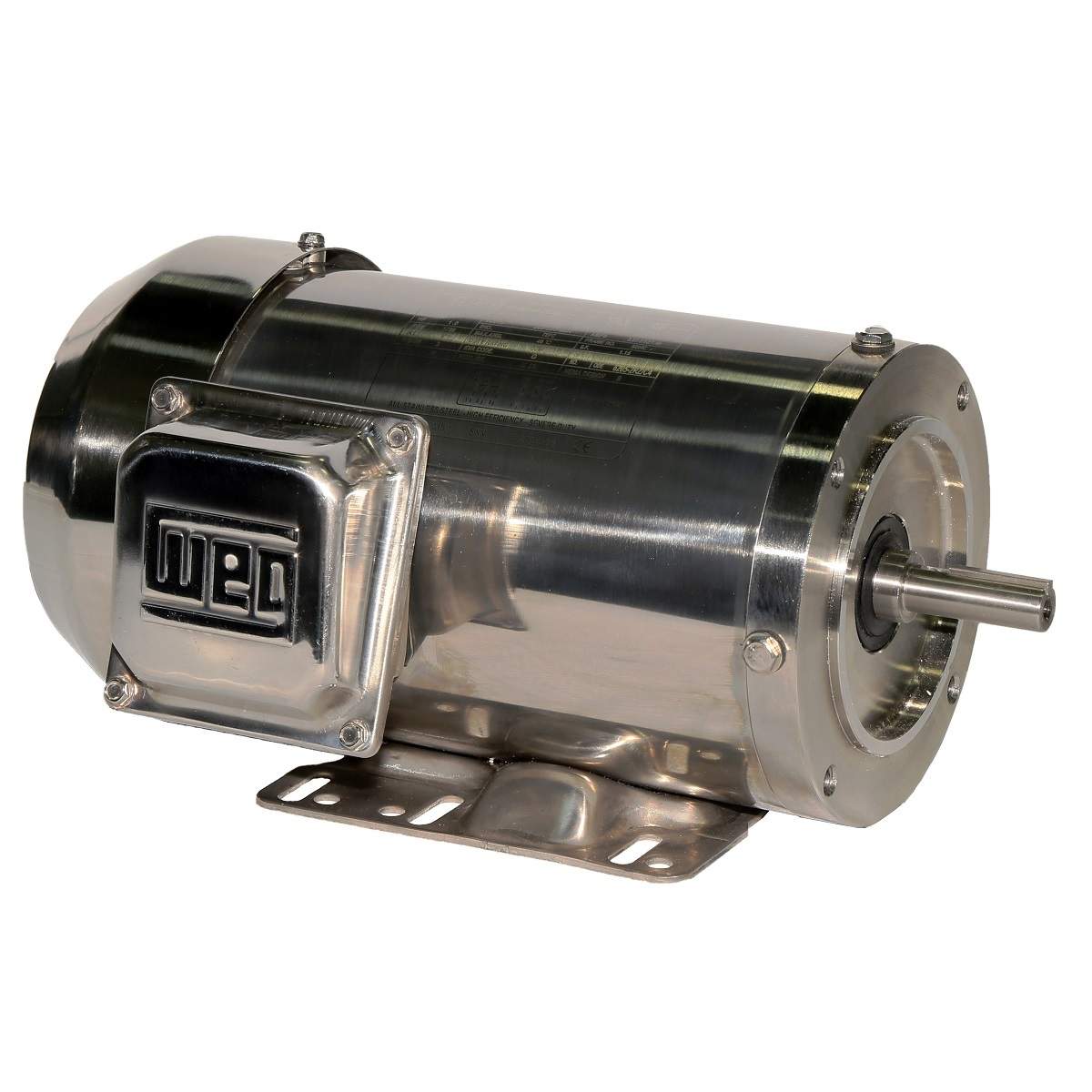

00218ET3ESS145TC | 230/460V | - | 145TC | 86.5% | 1800 RPM | 2 hp | 1.5 kW | 4 | €1,522.49 | |
|
.7512EP3ESS56C | 230/460V | 3/4 hp | 56HC | 77% | 1200 RPM | 3/4 hp | 0.55 kW | 6 | €1,051.32 | |
|
.5012EP3ESS56C | 230/460V | 1/2 hp | 56C | 74% | 1200 RPM | 1/2 hp | 0.37 kW | 6 | €920.51 |
