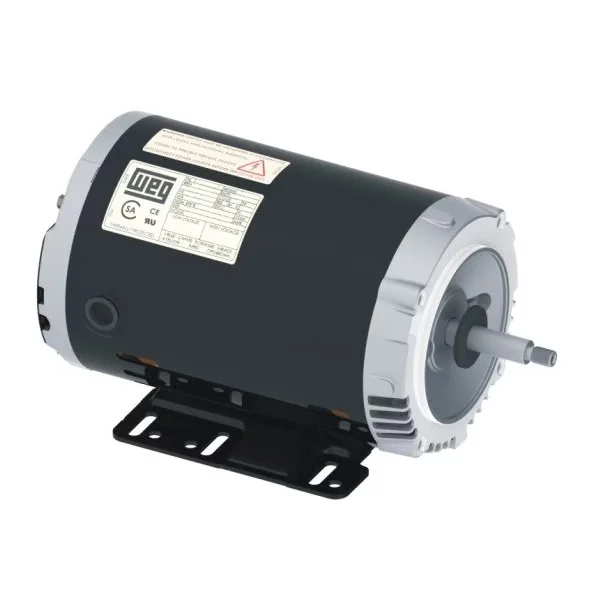

WEG .3336OS3EJP56J-S 12676611 Electric Motor, 0.33Hp, 60Hz, 3600 Rpm
Get it by Friday, Dec 19
€277.93 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Electric Motor |
| Altitude | 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Balancing Method | Without Key |
| Bearing Cap | Yes |
| Bolt Material | Carbon Steel |
| Break-down Torque | 320% |
| Cold Locked Rotor Time | 68 sec. |
| Connection Cables Quantity | 9 |
| Drip Cover | Without |
| Duty Cycle | Continuous |
| Efficiency At 1 % | 74% |
| Efficiency At 50 % | 54% |
| Efficiency At 75 % | 65% |
| Enclosure Type | ODP |
| Fan Cover Material | Without Fan Cover |
| Fan Material | Without Fan |
| Flange Type | C |
| Frame | 56J |
| Frame Material | Rolled Steel |
| Frame Size | 56J |
| Frequency | 50/60 Hz |
| Grounding Lugs | Single |
| Horsepower | 0.33 hp |
| Hot Locked Rotor Time | 38 sec. |
| Hz | 60 Hz |
| Impregnation Method | Dip And Bake Polyester |
| L. R. Amps | 9.25-8.36/4.18A |
| Locked Rotor Torque | 240% |
| Lrc | 6.7X(Code M) |
| Moment Of Inertia | 0.0389 lbs.-sq. ft. |
| Motor Enclosure Design | Open Dripproof |
| Motor Speed | 3515 RPM |
| Mounting | Foot Mounted |
| No Load Amps | 0.776-0.9/0.45A |
| No. Of Poles | 2 |
| Noise Level | 62 dBA |
| Output | 1/3 hp |
| Output Rating | 1/3 hp |
| Overload Protector | Without Overload Protector |
| Painting | Only Primer |
| Phase | 3 |
| Power Factor At 1 % | 68 |
| Power Factor At 50 % | 57.5 |
| Power Factor At 75 % | 66 |
| Rated Current | 1.38-1.25/0.624A |
| Rated Torque | 0.493 lbs.-ft. |
| Rated Voltage | 208-230/460V AC |
| Resilient Base | Without |
| Rpm | 3400-3600 RPM |
| Service Factor | 1.75 |
| Shaft Material | Stainless Steel |
| Shaft Material Grade | Grade 304 |
| Slip | 2.36% |
| Starting Method | Direct On Line |
| Synchronous Speed | 3600 RPM |
| Temp. Rise | 80 K |
| Terminal Box | Without Terminal Box |
| Tropicalized Painting | Without |
| Voltage | 230/460V |
Shipping Info:
| Ship weight (kg) | 9.45 |
| Ship height (cm) | 25.4 |
| Ship length (cm) | 50.8 |
| Ship width (cm) | 25.4 |
| Country of Origin | US |
Product Variants
| Model | Frequency | Service Factor | Hp | Duty Cycle | No Load Amps | Mounting | Output Rating | Altitude | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

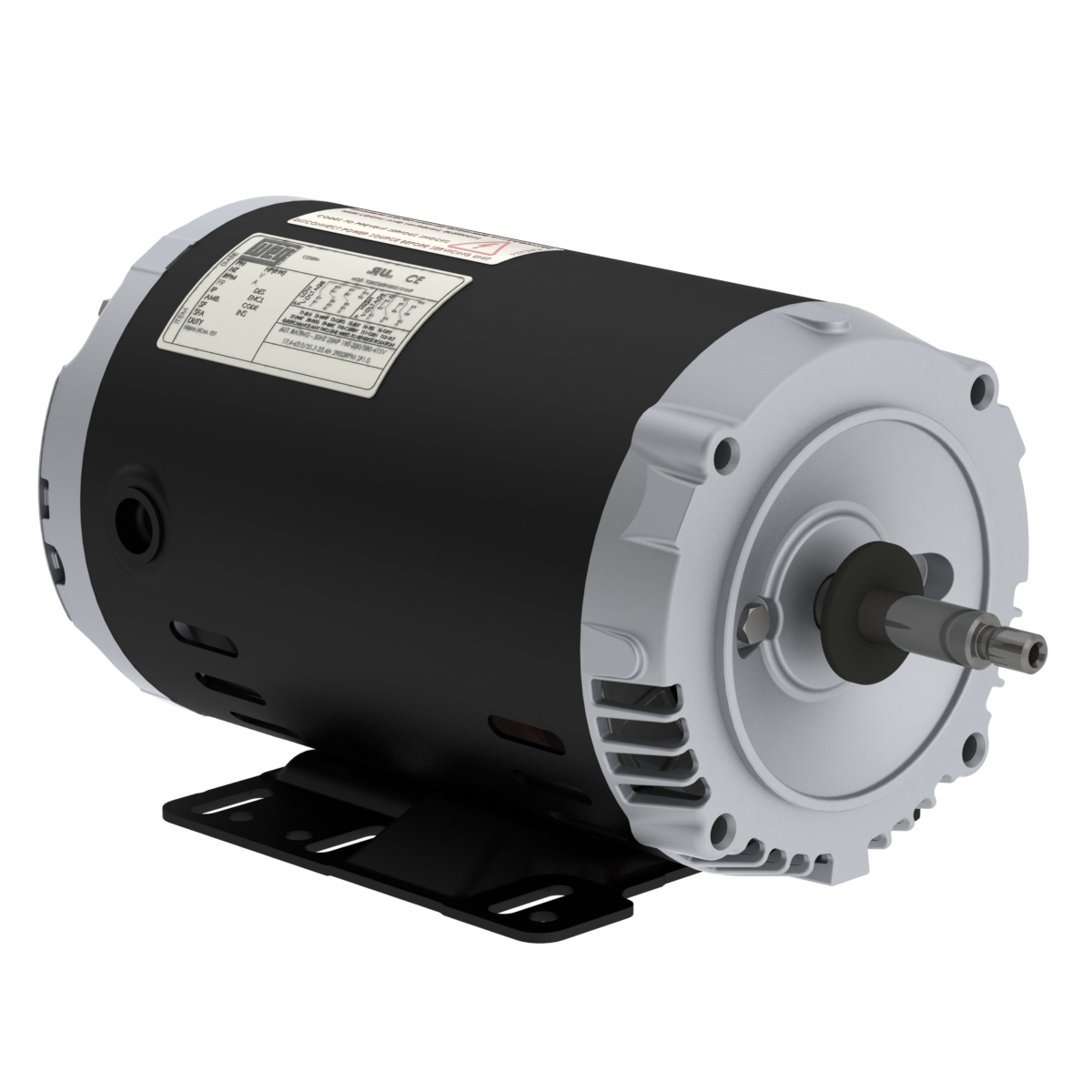

| 00236OS3EJP56J-S | 50/60 Hz | 1.2 | 2 hp | S1 | 2.6/1.3A | Foot Mounted | 2 hp | 1000 MASL | €377.02 | |

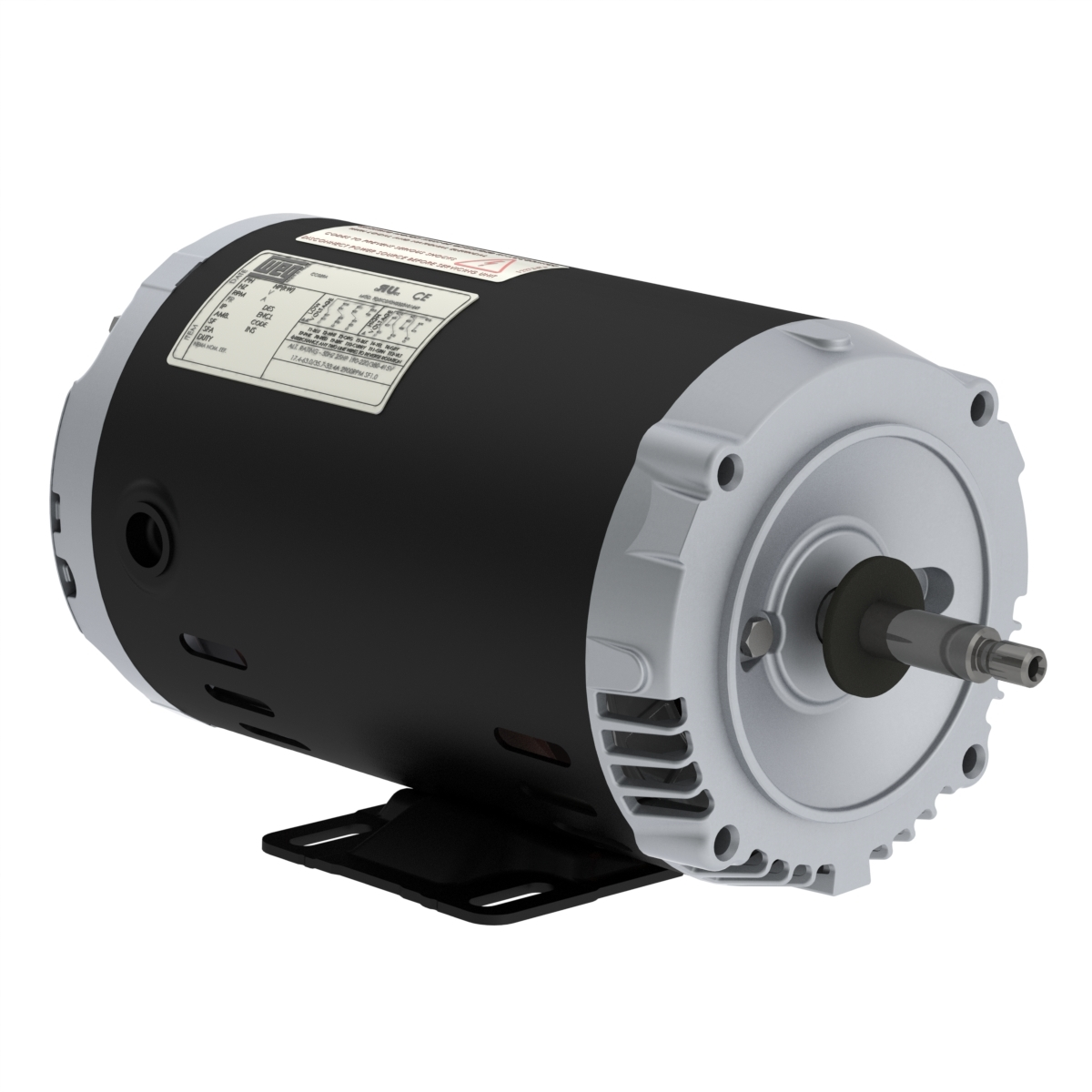

| .5036OS3EJP56J-S | 60 Hz | 1.6 | 1/2 hp | S1 | 0.65/1.12-1.3A | Foot Mounted | 1/2 hp | 1000 M.A.S.L. | €292.83 | |
| 00336OS3EJP56J-S | 60 Hz | 1.15 | - | S1 | 3.2/1.6A | Foot Mounted | 3 hp | 1000 MASL | €404.44 | |
| 00136OS3EJP56J-S | 60 Hz | 1.4 | 1 hp | S1 | 0.95/1.9A | Foot Mounted | 1 hp | 1000 M.A.S.L. | €341.22 | |
| 00136OS3HJP56J-S | 60 Hz | 1.4 | 1 hp | S1 | 0.76A | Foot Mounted | 1 hp | 1000 MASL | €341.22 | |
| 00336OS3HJP56J-S | 60 Hz | 1.15 | - | S1 | 1.28A | Foot Mounted | 3 hp | 1000 MASL | €404.44 | |
| 00156OS3EJP56J-S | 60 Hz | 1.3 | - | S1 | 2.2/1.1A | Foot Mounted | 1 1/2 hp | 1000 MASL | €353.16 |
