WEG .3336OS1BJPW56J-S Electric Motor, 0.33Hp, 60Hz, 3600 Rpm | BC2DVU

WEG .3336OS1BJPW56J-S 13923293 Jet Pump Motor, 0.33 HP, 3600 RPM, 115/208-230 V, 1 Phase, ODP, 56J Frame, Footed

Item: BC2DVUModel: .3336OS1BJPW56J-SCross Ref: 13923293
Check Availability
In Stock

Get it by Monday, Aug 24

€303.04 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Electric Motor
Altitude 1000 M.A.S.L. , 1000 MASL
Ambient Temp. -20°C to +40°C
Amps 2.5-2.76/5A , 5/2.76-2.5A
Balancing Method Not Balanced
Bearing Cap Yes
Bolt Material Carbon Steel
Break Down Torque 300%
Cable Press Material Sem
Cold Locked Rotor Time 14 sec.
Design No
Drip Cover Without
Duty Cycle S1
Efficiency 50% 49% , 57%
Efficiency 75% 56%
Efficiency @ 1 % 74%
Efficiency @ 100% 59%
Efficiency @ 75 % 66%
Enclosure IC01
Enclosure Type ODP
Fan Cover Material Without Fan Cover
Fan Material Without Fan
Flange C
Flange Type C
Frame W56J
Frame Material Rolled Steel
Frequency 60 Hz
Grounding Lugs Single
Hot Locked Rotor Time 8 sec.
Impregnation Method Dip And Bake Polyester
Insulation Class Class F
L. R. Amps 18.5-20.4/37A , 37/20.4-18.5A
Locked Rotor Time 8 sec.
Locked Rotor Time (cold) 14 sec.
Locked Rotor Torque 300%
Lrc 7.4X(Code P)
Moment Of Inertia 0.019 lbs.-sq. ft.
Moment Of Inertia (j) 0.019 lbs.-sq. ft.
Motor Enclosure Design Open Dripproof
Motor Speed 3500 RPM
Mounting F-1 , Foot Mounted
No Load Amps 1.47-1.7/3.4A , 3.4/1.47-1.7A
No. Of Poles 2
Noise Level 56 dBA
Output 1/3 hp
Output Rating 0.33 hp , 1/3 hp
Overload Protection Automatic
Overload Protector Automatic
Painting Only Primer
Phase 1
Power Factor 100% 0.74
Power Factor 50% 0.57
Power Factor 75% 0.66
Power Factor @ 1 % 59
Power Factor @ 50 % 49
Power Factor @ 75 % 56
Resilient Base Without
Rotation CCW
Service Factor 1.75
Shaft Material Stainless Steel
Shaft Material Grade Grade 304
Slip 2.78%
Speed 3400-3600 RPM , 3500 RPM
Starting Method Direct On Line
Synchronous Speed 3600 RPM
Temp. Rise 80 K
Terminal Box Without Terminal Box
Torque 0.495 lbs.-ft.
Tropicalized Painting Without
Voltage 115/208-230V , 115/208-230V AC

Shipping Info:

Ship weight (kg) 11.25
Ship height (cm)2.54
Ship length (cm)2.54
Ship width (cm)2.54
Country of OriginMX

Product Variants

ProductModelVoltageService FactorHpFrameDuty CycleNo Load AmpsMountingOutput RatingPrice

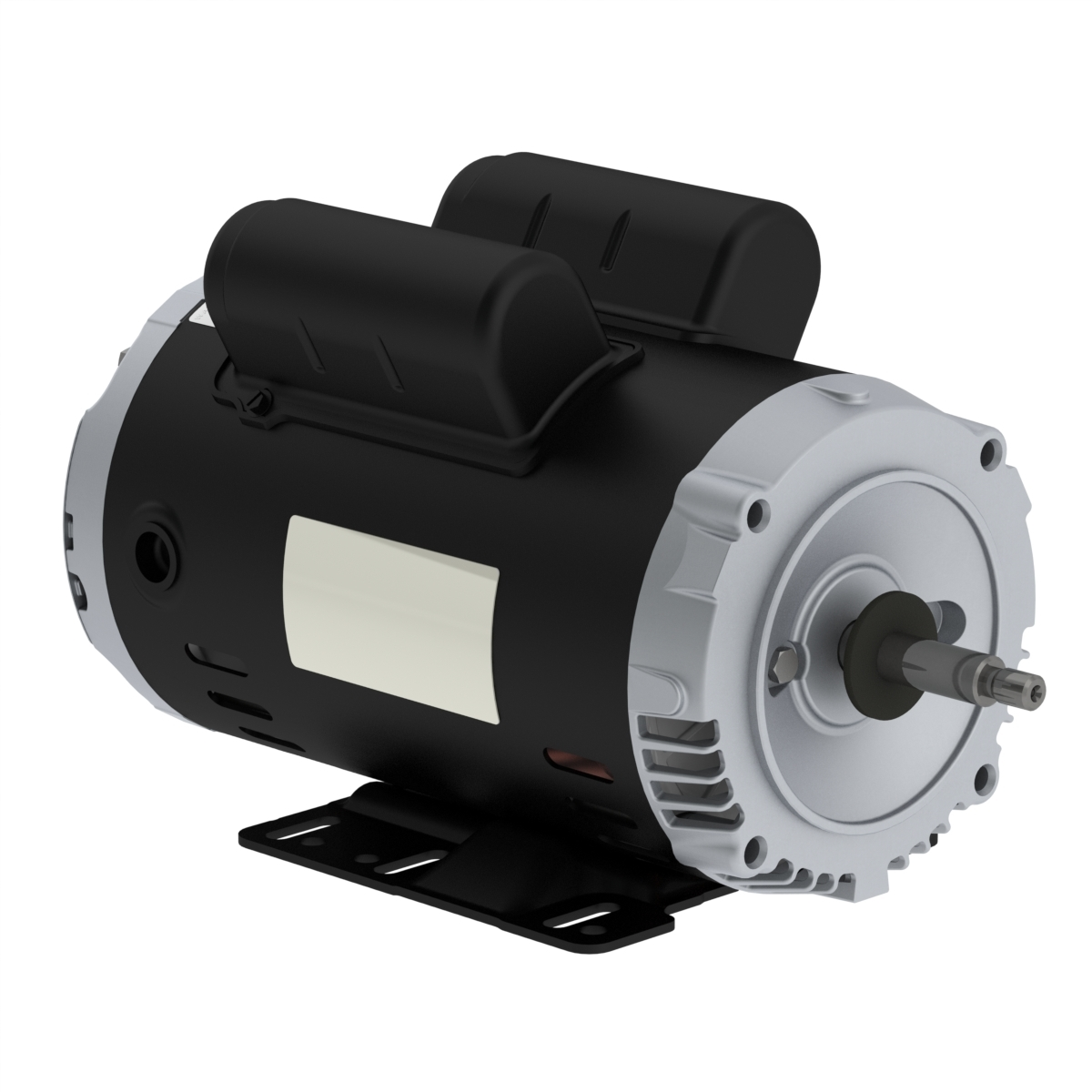

WEG 00336OS1DJP56J-S Electric Motor, 3Hp, 60Hz, 3600 Rpm | BB9RJB 00336OS1DJP56J-S230V1.153 hp56HJS14.5AFoot Mounted3 hp€595.35

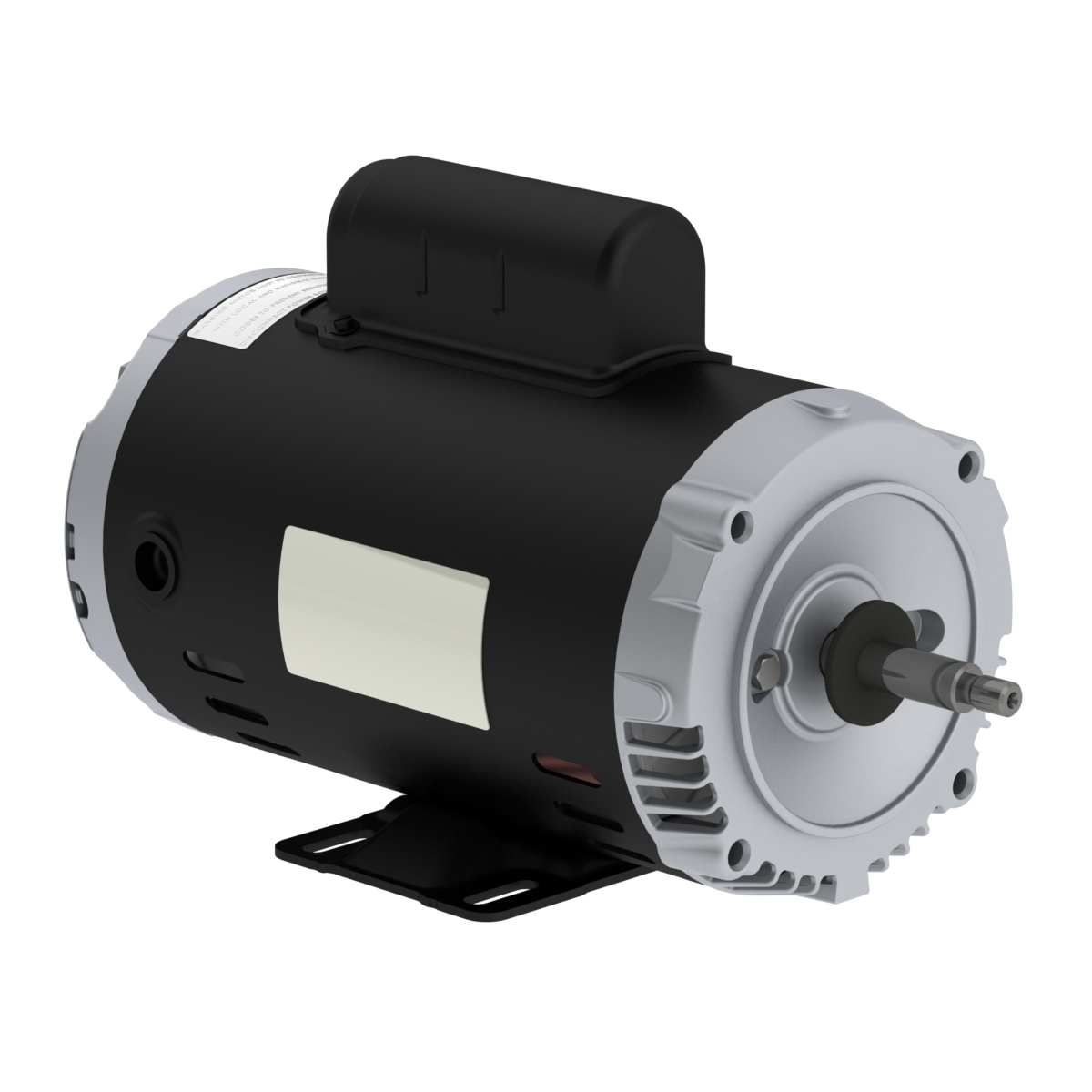

WEG 00136OS1BJP56J-S Electric Motor, 1Hp, 60Hz, 3600 Rpm | BB9TAT 00136OS1BJP56J-S115/208-230V AC1.41 hp56JS18.4/3.62-4.2AFoot Mounted1 hp€398.48

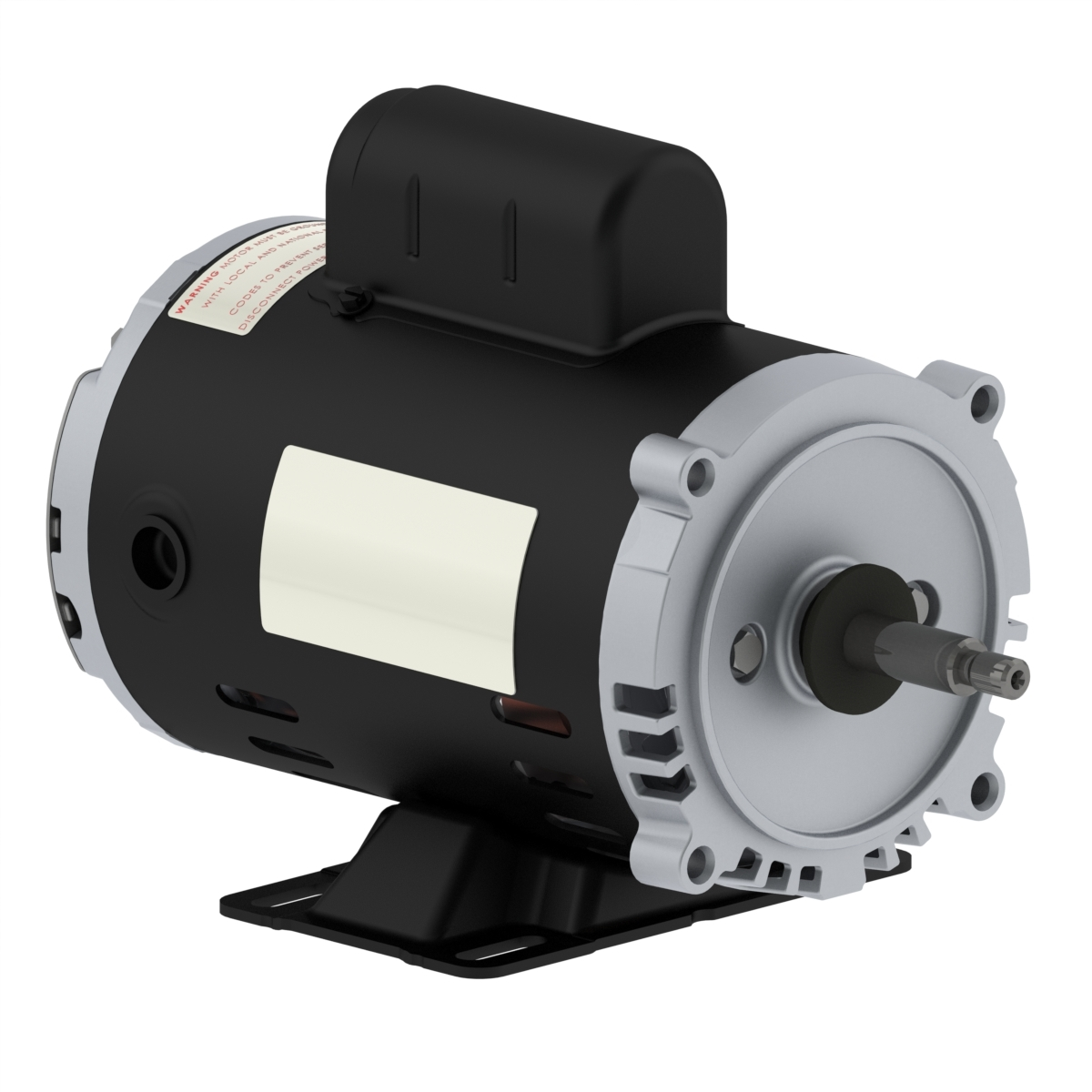

WEG .7536OS1BJPW56J-S Electric Motor, 0.75Hp, 60Hz, 3600 Rpm | BB9WPK .7536OS1BJPW56J-S115/208-230V AC1.5-W56JS17.4/3.19-3.7AFoot Mounted3/4 hp€353.16
WEG 00236OS1BJP56J-S Electric Motor, 2Hp, 60Hz, 3600 Rpm | BB9YRV 00236OS1BJP56J-S115/208-230V AC1.22 hp56HJS112.6/5.43-6.3AFoot Mounted2 hp€522.56
WEG .5036OS1BJPW56J-S Electric Motor, 0.5Hp, 60Hz, 3600 Rpm | BC2EUA .5036OS1BJPW56J-S115/208-230V AC1.61/2 hpW56JS11.98-2.3/4.6AFoot Mounted1/2 hp€307.80
WEG 00156OS1BJP56J-S Electric Motor, 1.5Hp, 60Hz, 3600 Rpm | BC2GDV 00156OS1BJP56J-S115/208-230V AC1.31 1/2 hp56JContinuous11/4.74-5.5AFoot Mounted1 1/2 hp€455.77
