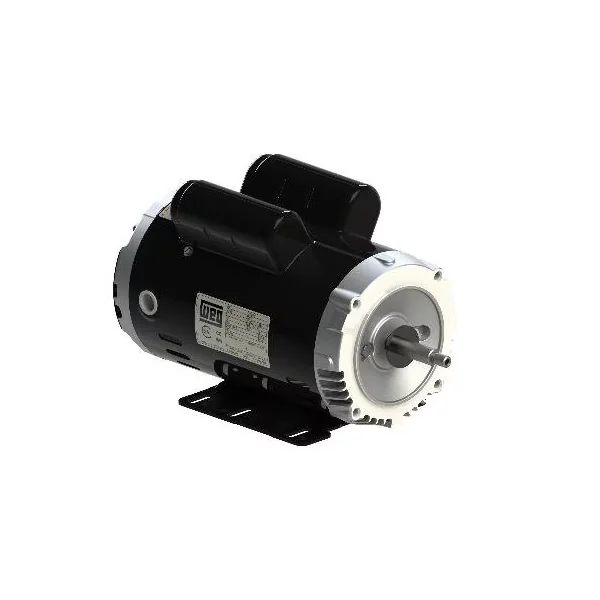

WEG 00156OS1BJP56J-S Electric Motor, 1.5Hp, 60Hz, 3600 Rpm | BC2GDV

WEG 00156OS1BJP56J-S 14061745 Electric Motor, 1.5Hp, 60Hz, 3600 Rpm

Item: BC2GDVModel: 00156OS1BJP56J-SCross Ref: 14061745
Check Availability
In Stock

Get it by Monday, Dec 22

€455.77 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Electric Motor
Altitude 1000 MASL
Ambient Temp. -20°C to +40°C
Balancing Method Without Key
Bearing Cap Yes
Bolt Material Carbon Steel
Break-down Torque 270%
Cold Locked Rotor Time 10 sec.
Composition Steel
Design L
Drip Cover Without
Duty Cycle Continuous
Efficiency At 1 % 77%
Efficiency At 50 % 57%
Efficiency At 75 % 69%
Enclosure Type ODP
Fan Cover Material Without Fan Cover
Fan Material Without Fan
Flange Type C
Frame 56J
Frame Material Rolled Steel
Frame Size 56J
Frequency 60 Hz
Grounding Lugs Single
Hot Locked Rotor Time 6 sec.
Hp 1 1/2 hp
Impregnation Method Dip And Bake Polyester
L. R. Amps 126/69.4-63A
Locked Rotor Torque 250%
Lrc 7.3X(Code L)
Moment Of Inertia 0.0589 lbs.-sq. ft.
Motor Enclosure Design Open Dripproof
Motor Speed 3500 RPM
Mounting Foot Mounted
No Load Amps 11/4.74-5.5A
No. Of Poles 2
Noise Level 58 dBA
Output 1 1/2 hp
Output Rating 1 1/2 hp
Overload Protector Automatic
Painting Only Primer
Phase 1
Power Factor At 1 % 72
Power Factor At 50 % 65
Power Factor At 75 % 70
Rated Current 17.3/9.51-8.63A
Rated Torque 2.25 lbs.-ft.
Rated Voltage 115/208-230V AC
Resilient Base Without
Rpm 3400-3600 RPM
Service Factor 1.3
Shaft Material Stainless Steel
Shaft Material Grade Grade 304
Ships Factory Direct No
Slip 2.78%
Starting Method Direct On Line
Synchronous Speed 3600 RPM
Temp. Rise 80 K
Terminal Box Without Terminal Box
Tropicalized Painting Without
Voltage 115/208-230V

Shipping Info:

Ship weight (kg) 14.85
Ship height (cm)25.4
Ship length (cm)31.5
Ship width (cm)25.4
Country of OriginBR

Product Variants

ProductModelVoltageService FactorHpFrameDuty CycleNo Load AmpsMountingOutput RatingPrice
WEG 00336OS1DJP56J-S Electric Motor, 3Hp, 60Hz, 3600 Rpm | BB9RJB 00336OS1DJP56J-S230V AC1.153 hp56HJS14.5AFoot Mounted3 hp€595.35
WEG 00136OS1BJP56J-S Electric Motor, 1Hp, 60Hz, 3600 Rpm | BB9TAT 00136OS1BJP56J-S115/208-230V AC1.41 hp56JS18.4/3.62-4.2AFoot Mounted1 hp€398.48
WEG .7536OS1BJPW56J-S Electric Motor, 0.75Hp, 60Hz, 3600 Rpm | BB9WPK .7536OS1BJPW56J-S115/208-230V AC1.5-W56JS17.4/3.19-3.7AFoot Mounted3/4 hp€353.16
WEG 00236OS1BJP56J-S Electric Motor, 2Hp, 60Hz, 3600 Rpm | BB9YRV 00236OS1BJP56J-S115/208-230V AC1.22 hp56HJS112.6/5.43-6.3AFoot Mounted2 hp€522.56
WEG .3336OS1BJPW56J-S Electric Motor, 0.33Hp, 60Hz, 3600 Rpm | BC2DVU .3336OS1BJPW56J-S115/208-230V AC1.75-W56JS13.4/1.47-1.7AFoot Mounted1/3 hp€303.04
WEG .5036OS1BJPW56J-S Electric Motor, 0.5Hp, 60Hz, 3600 Rpm | BC2EUA .5036OS1BJPW56J-S115/208-230V AC1.61/2 hpW56JS11.98-2.3/4.6AFoot Mounted1/2 hp€307.80
