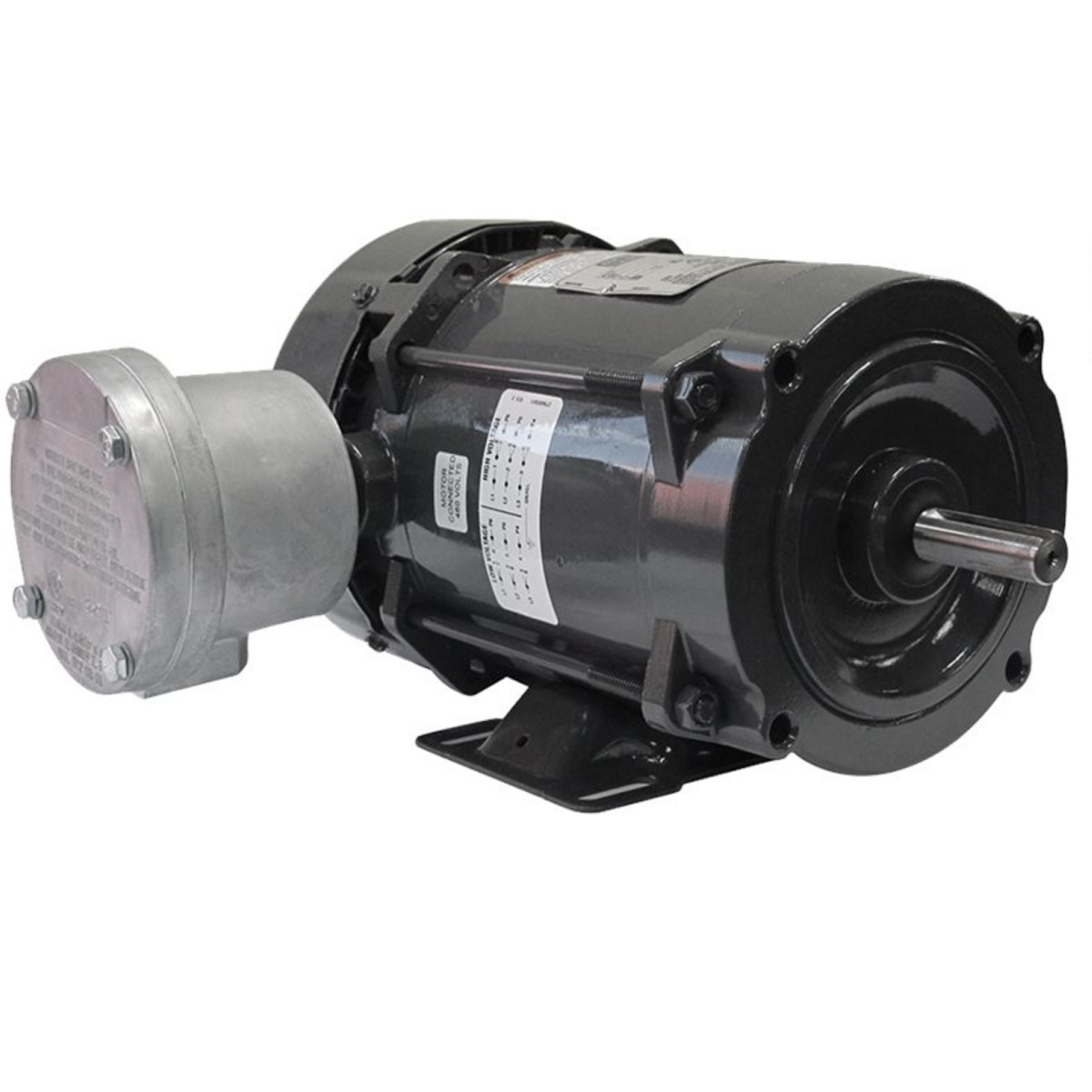

WEG .3318XS1B56 15380333 Explosion Proof Motor, 0.33 HP, 04 Poles, 56 Frame, 115/208-230V, 60 Hz
1800 rpm
0.33 hp
56
Get it by Thursday, Apr 2
€803.00 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hazardous Location Motor |
| Bolt Material | Carbon Steel |
| Composition | Steel |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Enclosure | Tefc |
| Flange | Without |
| Frame | 56 |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Horsepower | 0.33 hp |
| Hp | 1/3 hp |
| Insulation Class | Class F |
| Mounting | F-1/B3R |
| Mounting Type | F-1 |
| No. Of Poles | 4 |
| Overload Protection | Automatic |
| Phase | 1 |
| Regreasing System | Without |
| Rpm | 1700-1800 RPM |
| Service Factor | 1 |
| Synchronous Speed | 1800 RPM |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Voltage | 115/208-230V |
Shipping Info:
| Ship weight (kg) | 11.25 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Voltage | Phase | Frame | Hp | Synchronous Speed | Mounting Type | Flange | No. Of Poles | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
00118XS1B56C | 115/208-230V | 1 | 56C | 1 hp | 1800 RPM | F-1 | C | - | €1,241.67 | |
 |

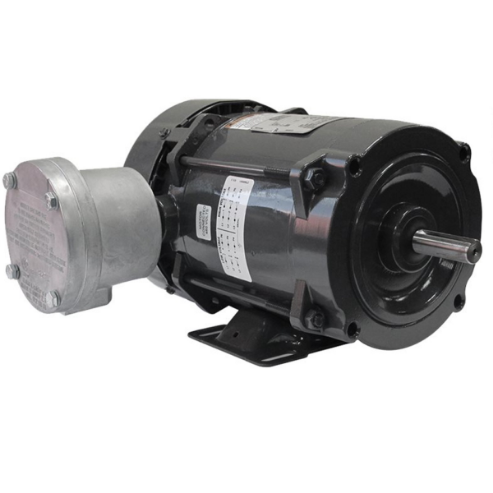

.7518XS1B56 | 115/208-230V | 1 | 56 | 3/4 hp | 1800 RPM | Foot Mounted | Without | 4 | €1,040.32 | |
 |
.5018XS1B56 | 115/208-230V | 3 | 56 | 1/2 hp | 1800 RPM | Foot Mounted | Without | 4 | €885.71 | |
 |
00158XS1C56H | 208-230V | 1 | 56H | 1 1/2 hp | 1800 RPM | F-1 | Without | 4 | €1,478.80 | |
|
.3318XS1B56C | 115/208-230V | 1 | 56C | 1/3 hp | 1800 RPM | Foot Mounted | C | 4 | €977.99 | |
|
.7536XS1B56 | 115/208-230V | 1 | 56 | 3/4 hp | 3600 RPM | F-1 | Without | 2 | €859.35 | |
 |
.3336XS1B56C | 115/208-230V | 1 | 56C | 1/3 hp | 3600 RPM | Foot Mounted | C | 2 | €823.18 |
