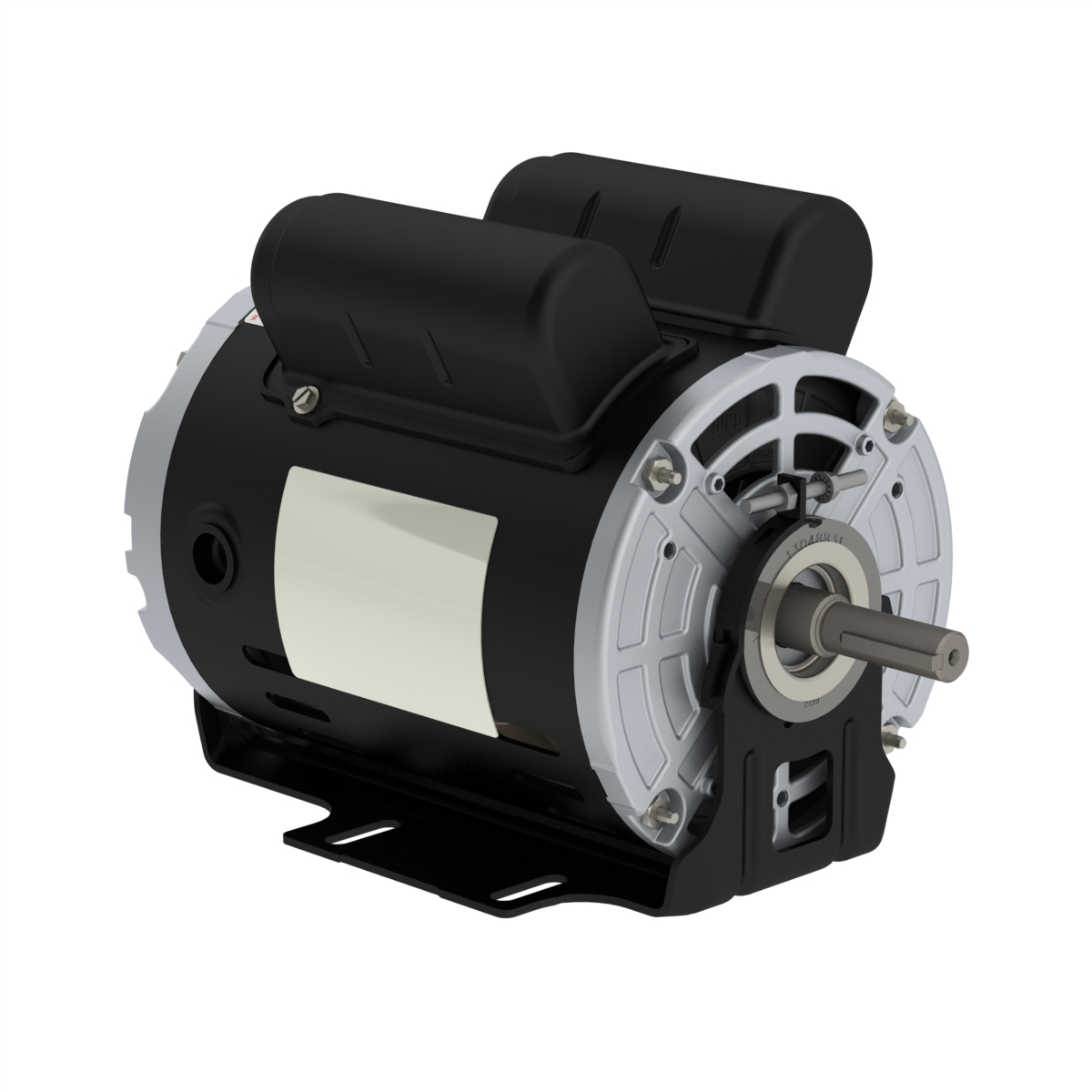

WEG .3318OT1BRBOW56-S Electric Motor, 0.33Hp, 60Hz, 1800 Rpm | BC3JJD

WEG .3318OT1BRBOW56-S 14573011 Air Handling Motor, Fan and Blower, 0.33 HP, 0.25 kW, 1800 RPM, W56 Frame, 115/208-230 V

Item: BC3JJDModel: .3318OT1BRBOW56-SCross Ref: 14573011
Check Availability
In Stock

Get it by Tuesday, Apr 7

€387.75 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item General Purpose Motor
Altitude 1000 M.A.S.L. , 1000 MASL
Ambient Temp. -20°C to +40°C
Balancing Method Not Balanced
Bearing Cap No
Bolt Material Carbon Steel
Break-down Torque 300%
Breakdown Torque 300%
Cable Press Material Sem
Cold Locked Rotor Time 30 sec.
Design N
Drip Cover Without
Duty Cycle S1
Efficiency @ 100% 72.4%
Efficiency @ 50% 61%
Efficiency @ 75% 68%
Efficiency At 1 % 73%
Efficiency At 50 % 53%
Efficiency At 75 % 67%
Enclosure IC01
Enclosure Type ODP
Fan Cover Material Without Fan Cover
Fan Material Without Fan
Flange Without
Flange Type Without
Frame W56
Frame Material Rolled Steel
Frequency 60 Hz
Grounding Lugs Single
Hot Locked Rotor Time 17 sec.
Hp 1/3 hp
Impregnation Method Dip And Bake Polyester
Insulation Class Class F
L. R. Amps 30.1/16.9-15A
L.r. Amperes 15-16.9/30.1A
Locked Rotor Time (cold) 30 sec.
Locked Rotor Time (hot) 17 sec.
Locked Rotor Torque 320%
Lrc 7.3X(Code M)
Moment Of Inertia 0.0439 lbs.-sq. ft.
Moment Of Inertia (j) 0.0439 lbs.-sq. ft.
Motor Enclosure Design Open Dripproof
Motor Speed 1745 RPM
Mounting F-1 , Foot Mounted
No Load Amps 1.34-1.55/3.1A , 3.1/1.34-1.55A
No. Of Poles 4
Noise Level 50 dBA
Output 1/3 hp
Output Rating 0.33 hp , 1/3 hp
Overload Protection Automatic
Overload Protector Automatic
Painting Only Primer
Phase 1
Power Factor 50% 0.53
Power Factor 75% 0.67
Power Factor At 1 % 72.4
Power Factor At 50 % 61
Power Factor At 75 % 68
Power Factor_100% 0.73
Rated Current 2.06-2.32/4.12A , 4.12/2.32-2.06A
Rated Speed 1745 RPM
Rated Torque 0.993 lbs.-ft.
Rated Voltage 115/208-230V , 115/208-230V AC
Resilient Base With
Rotation CW/CCW
Rpm 1700-1800 RPM
Service Factor 1.35
Shaft Material Carbon Steel
Shaft Material Grade Grade 1040/45
Slip 3.06%
Starting Method Direct On Line
Synchronous Speed 1800 RPM
Temp. Rise 80 K
Terminal Box Without Terminal Box
Tropicalized Painting Without
Voltage 115/208-230V AC

Shipping Info:

Ship weight (kg) 11.7
Ship height (cm)2.54
Ship length (cm)2.54
Ship width (cm)2.54

Product Variants

ProductModelVoltageService FactorHpRpmFrameNo. Of PolesSynchronous SpeedMountingPrice
WEG .3318OS1BSPRBOW56-S Electric Motor, 0.33Hp, 60Hz, 1800 Rpm | BC3AVH .3318OS1BSPRBOW56-S115/208-230V--1700-1800 RPMW5641800 RPMFoot Mounted€343.60
WEG 00536OS1CCDW184Y-S Electric Motor, 5Hp, 60Hz, 3600 Rpm | BC3DBL 00536OS1CCDW184Y-S208-230V AC1.155 hp3400-3600 RPMW182/4Y23600 RPMFoot Mounted€627.56
WEG .3318OS1BSPRBW56-S Electric Motor, 0.33Hp, 60Hz, 1800 Rpm | BC3FCQ .3318OS1BSPRBW56-S115/208-230V AC1.351/3 hp1700-1800 RPMW5641800 RPMFoot Mounted€329.28
WEG .5018OS1BRBFBOW56-S Electric Motor, 0.5Hp, 60Hz, 1800 Rpm | BC3FFH .5018OS1BRBFBOW56-S115/208-230V AC1.251/2 hp1700-1800 RPMW5641800 RPMFoot Mounted€387.75
WEG .5018OS1BRBFBW56-S Electric Motor, 0.5Hp, 60Hz, 1800 Rpm | BC3FFJ .5018OS1BRBFBW56-S115/208-230V1.251/2 hp1700-1800 RPMW5641800 RPMFoot Mounted€349.60
WEG .5018OS1BSPOW56-S Electric Motor, 0.5Hp, 60Hz, 1800 Rpm | BC3FFK .5018OS1BSPOW56-S115/208-230V AC1.25-1700-1800 RPMW5641800 RPMFoot Mounted€307.16
WEG .5018OS1BSPRB48Z-S Electric Motor, 0.5Hp, 60Hz, 1800 Rpm | BC3FFL .5018OS1BSPRB48Z-S115/208-230V AC1.251/2 hp1700-1800 RPM-41800 RPMFoot Mounted€356.73
