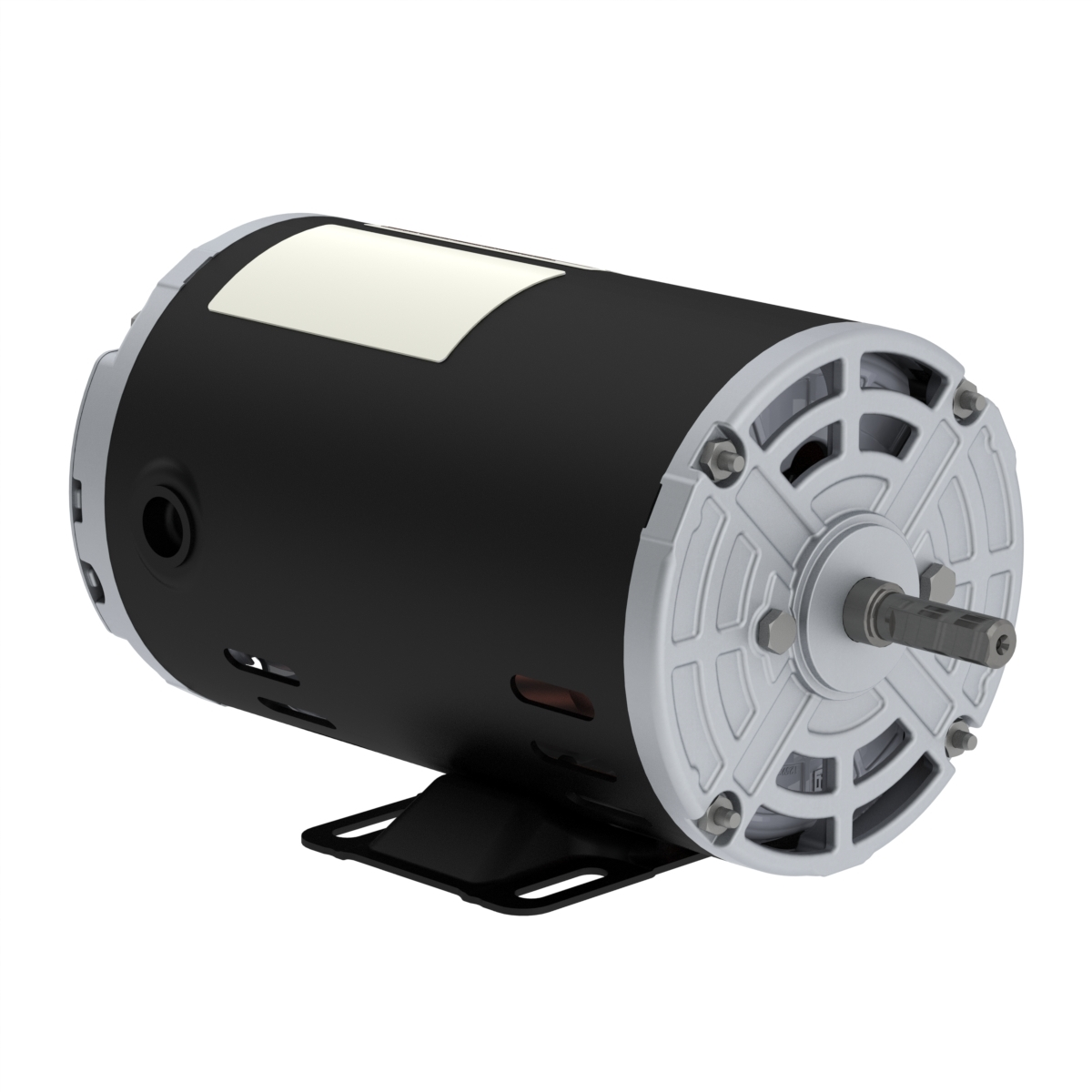

WEG .2518OT3E48-S 13497507 General Purpose Motor, ODP Rolled Steel 48 Frame, 0.25 HP, 1440 RPM, 415 V
Get it by Monday, Apr 6
€291.58 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Altitude | 1000 M.A.S.L. |
| Ambient Temp. | -20°C to +40°C |
| Bearing Cap | No |
| Bolt Material | Carbon Steel |
| Breakdown Torque | 340% |
| Composition | Steel |
| Connection Cables Quantity | 9 |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency @ 100% | 70% |
| Efficiency @ 50% | 59.5% |
| Efficiency @ 75% | 68% |
| Enclosure | IC01 |
| Enclosure Type | ODP |
| Fan Cover Material | Without Fan Cover |
| Fan Material | Without Fan |
| Flange | Without |
| Flange Type | Without |
| Frame | 48 |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Grounding Lugs | Single |
| Hp | 1/4 hp |
| Impregnation Method | Dip and Bake Polyester |
| Insulation Class | Class F |
| L.r. Amperes | 2.75/5.49-6.04A |
| Locked Rotor Time (cold) | 61 sec. |
| Locked Rotor Time (hot) | 34 sec. |
| Locked Rotor Torque | 250% |
| Moment Of Inertia (j) | 0.028 lbs.-sq. ft. |
| Motor Enclosure Design | Open Dripproof |
| Mounting | F-1 , Foot Mounted |
| No Load Amps | 0.383/0.66-0.766A |
| No. Of Poles | 4 |
| Noise Level | 50 dBA |
| Output Rating | 1/4 hp |
| Overload Protection | No |
| Phase | 3 |
| Power Factor 50% | 0.46 |
| Power Factor 75% | 0.58 |
| Power Factor_100% | 0.67 |
| Rated Current | 0.482/0.964-1.06A |
| Rated Speed | 1740 RPM |
| Rated Torque | 0.754 lbs.-ft. |
| Resilient Base | Without |
| Rotation | CW/CCW |
| Rpm | 1700-1800 RPM |
| Service Factor | 1.35 |
| Shaft Material | Carbon Steel |
| Slip | 3.33% |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 80 K |
| Terminal Box | Without Terminal Box |
| Voltage | 190-220/208-230/380-415/460V , 208-230/460/190-220/380-415V AC |
Shipping Info:
| Ship weight (kg) | 8.1 |
| Ship height (cm) | 24.38 |
| Ship length (cm) | 39.88 |
| Ship width (cm) | 30.99 |
| Country of Origin | US |
