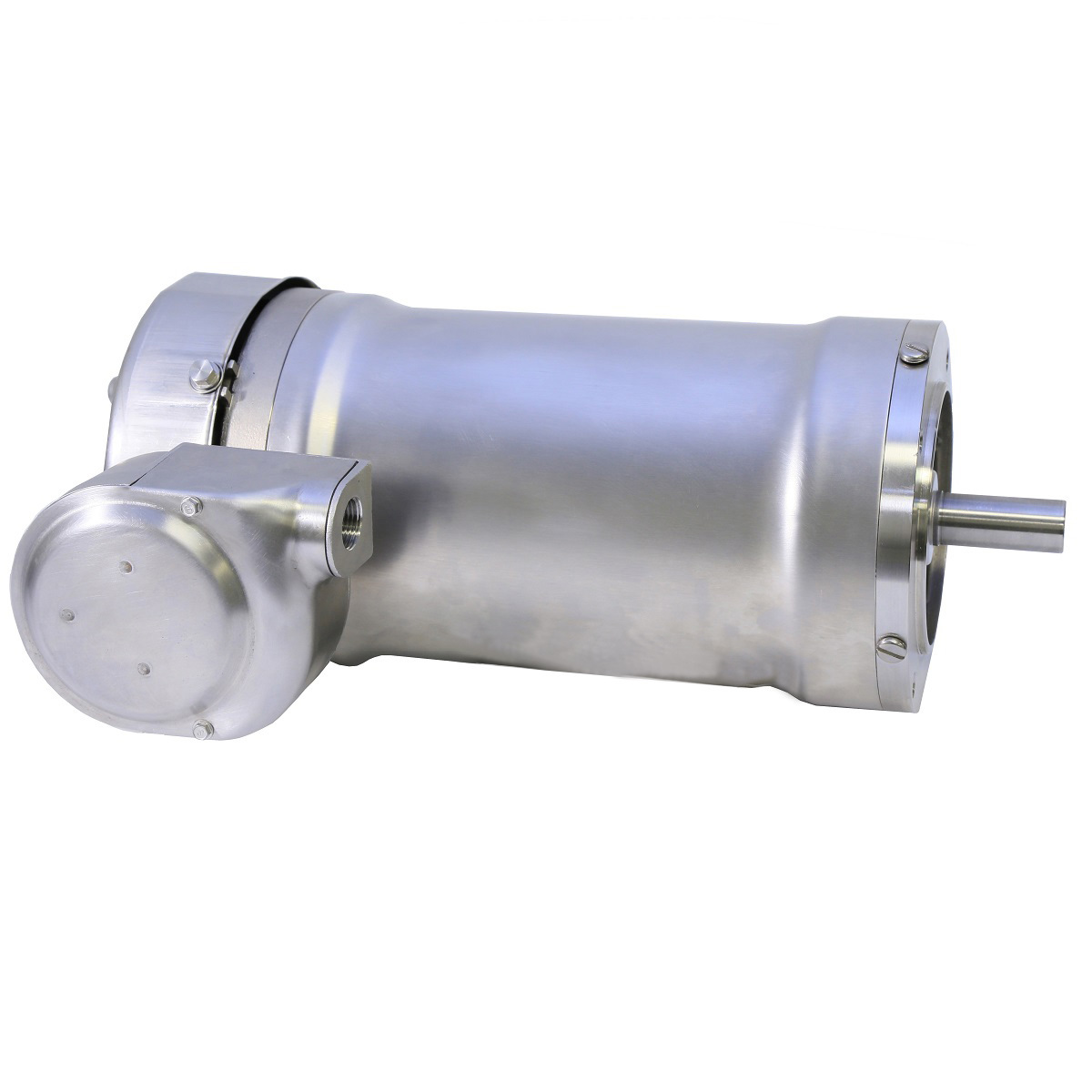

WEG 1311087125 16554517 Washdown Motor, 1 HP, 4 Poles, 143TC Frame, 230/460 V, 60 Hz, TEFC, F-1/B14R(D) Mounting
Get it by Monday, Aug 24
€1,920.19 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | AC Motor |
| Application | Washdown Stainless |
| Balancing Method | 1/2 Key |
| Body Design Material | Rolled Stainless Steel |
| Bolt Material | Stainless Steel |
| Degree Of Protection | IP69K |
| Design | B |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency | 85.5% |
| Enclosure Type | TEFC , Totally Enclosed Fan Cooled |
| Flange | C |
| Frame | 143tc |
| Frame Material | Stainless Steel |
| Frame Size Nema | NEMA 143tc |
| Frequency | 50/60 Hz , 60 Hz |
| Insulation Class | F |
| Inverter Rating | Inverter Duty |
| Mount Arrangement | F1 |
| Mounting | F-1 , F-1/B14R(D) |
| No. Of Poles | 4 |
| Output Speed | 1725/1425 RPM |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Not Applicable |
| Regreasing System | Without |
| Service Factor | 1.15 |
| Shaft Grounded Sgr | Not Available |
| Shaft Material | ACO INOX ASTM 17-4 PH |
| Synchronous Speed | 1800 RPM |
| Terminal Block | With Terminal Block W50 |
| Terminal Box | Left Position |
| Voltage | 230/460V |
Shipping Info:
| Ship weight (kg) | 27 |
| Country of Origin | BR |
