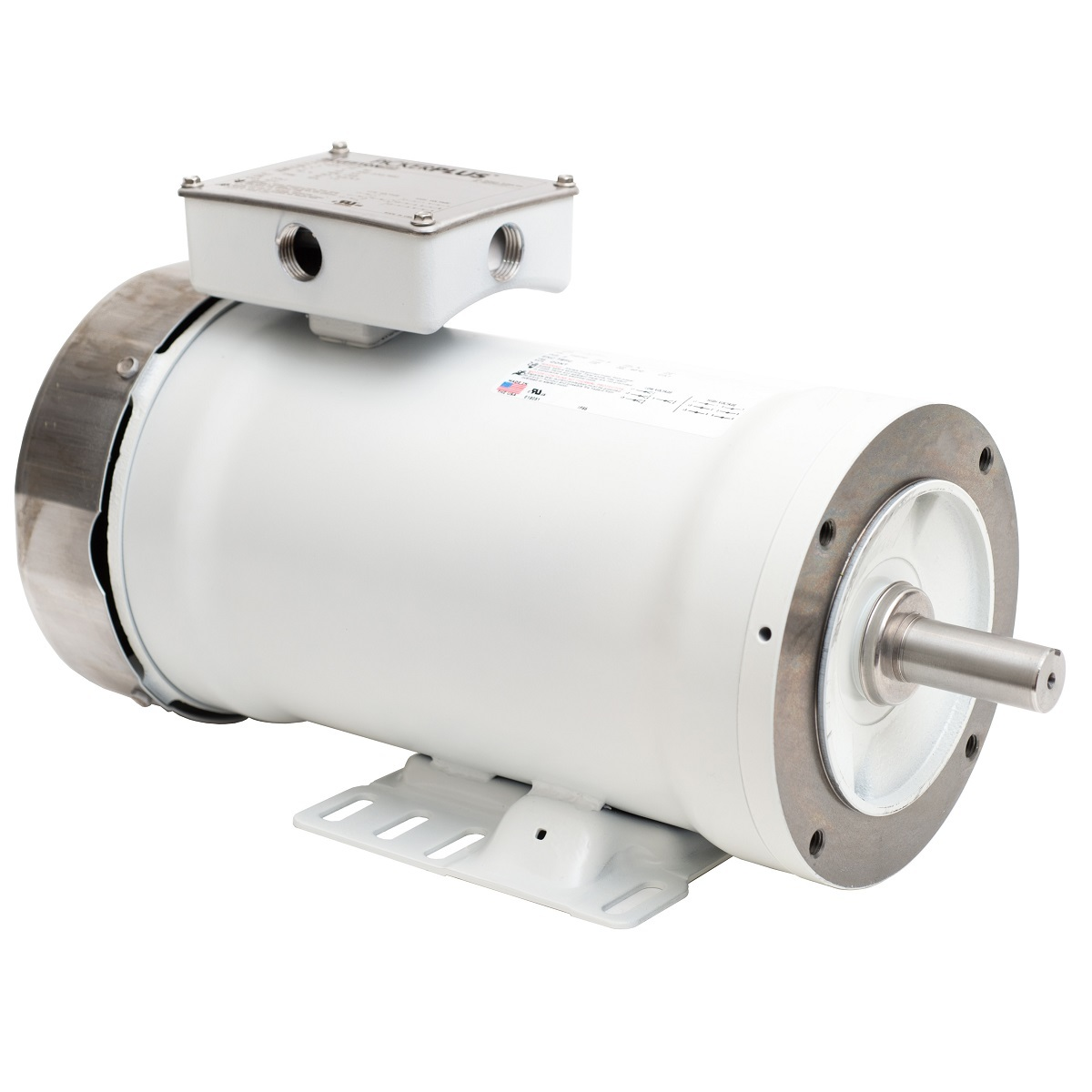

WEG 1311017192 16577998 Washdown, 3 HP, 4 Poles, 143/5TC Frame, 230/460 V, 60 Hz, TEFC
Get it by Tuesday, Jun 30
€2,050.09 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Electric Motor |
| Application | Washdown Epoxy |
| Body Design | Rolled Steel |
| Bolt Material | Stainless Steel |
| Composition | Steel |
| Ct Speed Range | 5:1 |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency | 81.5% |
| Enclosure | Tefc |
| Enclosure Iec | IP69K |
| Enclosure Nema Rating | Totally Enclosed Fan Cooled |
| Flange | C |
| Frame | 143/5TC |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Hp | 3 hp |
| Insulation Class | Class F |
| Inverter Rating | Inverter Ready |
| Mounting | F-3/B34T |
| Mounting Arrangement | F3 |
| Nema Frame | NEMA 143-5TC |
| Nema Mount | C Face With Base |
| No. Of Poles | 4 |
| Output Hp | 3 hp |
| Output Kw | 2.2 kW |
| Output Speed | 1700 RPM |
| Overload Protection | No |
| Phase | 3 |
| Regreasing System | Without |
| Rotation | CW, CCW |
| Service Factor | 1 |
| Speed | 1700-1800 RPM |
| Synchronous Speed | 1800 RPM |
| Terminal Block | Without |
| Terminal Box | Top |
| Voltage | 230/460V |
Shipping Info:
| Ship weight (kg) | 30.6 |
| Ship height (cm) | 25.4 |
| Ship length (cm) | 50.8 |
| Ship width (cm) | 25.4 |
| Country of Origin | BR |
Product Variants
| Product | Model | Frame | Frame Material | Voltage | Phase | Hp | Frequency | Service Factor | Insulation Class | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
1311017196 | 100L | Stainless Steel | 230/460V | 3 | 3 hp | 60 Hz | 1 | Class F | €2,187.08 |
