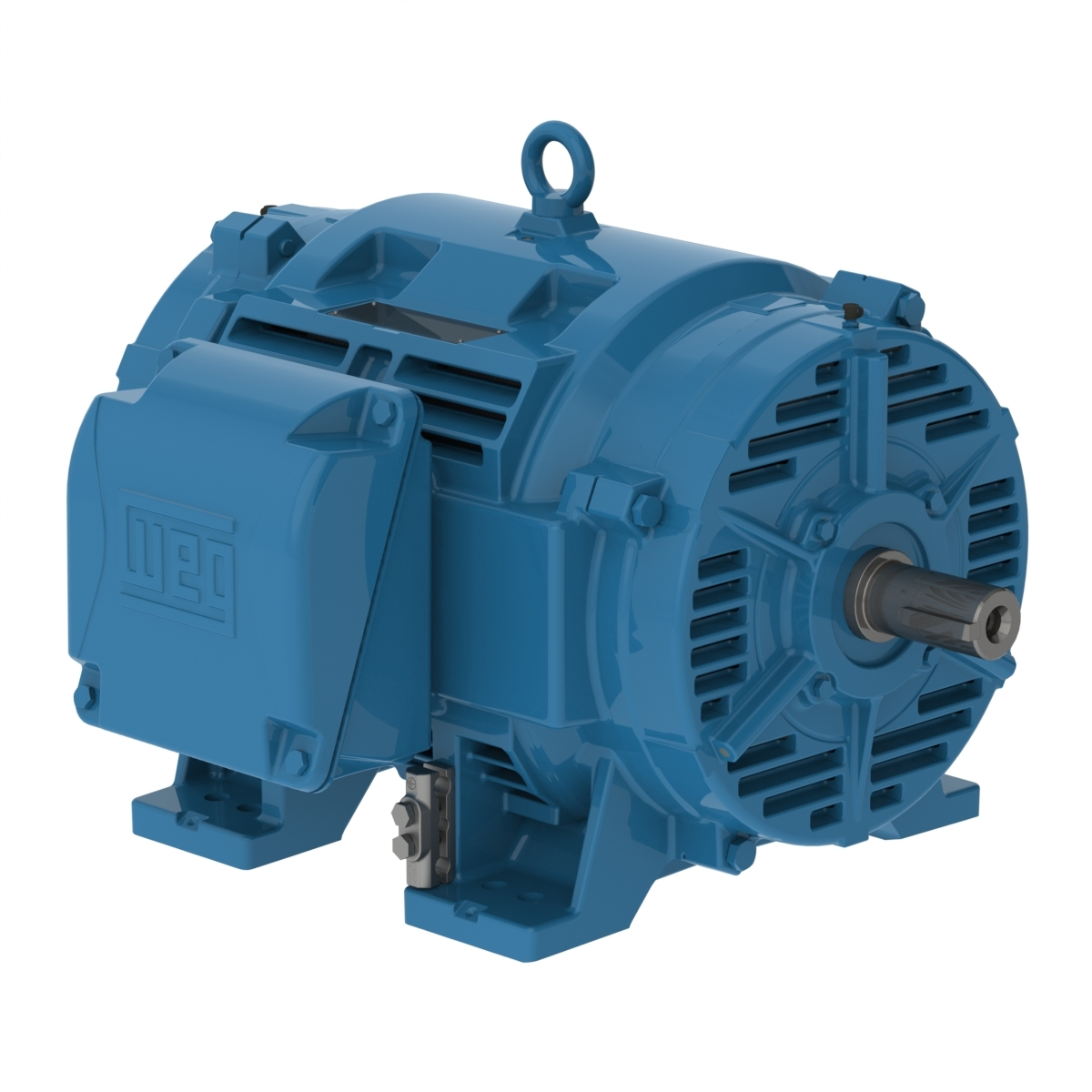

WEG 07536OT3E364TS-RFVFD 16063396 General Purpose Motor, ODP Cast Iron 364/5TS Frame, 75 HP, 3570 RPM, 230/460 V
Get it by Monday, Aug 24
€9,747.67 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | AC Motor |
| Altitude | 1000 m.a.s.l. |
| Ambient Temp. | -20°C to +40°C |
| Balancing Method | 1/2 Key |
| Bearing Cap | Yes |
| Bolt Material | Carbon Steel |
| Break Down Torque | 370% |
| Cold Locked Rotor Time | 23 sec. |
| Connection Cables Quantity | 12 |
| De Bearing Seal | No |
| Degree Of Protection | IP23 |
| Design | A |
| Drip Cover | Without |
| Duty Cycle | Cont.(S1) |
| Enclosure Rating | IC01 |
| Enclosure Type | Open Dripproof |
| Fan Cover Material | Without Fan Cover |
| Fan Material | Without Fan |
| Flange | Without |
| Frame | 364/5ts |
| Frame Material | Cast Iron |
| Frequency | 50/60 Hz |
| Grade | Grade 1010/20 |
| Grounding Lugs Type | Double |
| Impregnation Method | Constant Resin Flow |
| Insulation Class | F |
| L. R. Amps | 1426/711A |
| Locked Rotor Time(hot) | 13 sec. |
| Locked Rotor Torque | 330% |
| Lrc | 8.1x(Code J) |
| Main Terminal Box Hole | 3" |
| Main Terminal Box Hole Type | NPT |
| Material | Carbon Steel |
| Moment Of Inertia | 7.2 lbs.-sq. ft. |
| Mounting | Foot-Mounted, F-1 |
| Nde Bearing Seal | No |
| No Load Amps | 66/33A |
| No. Of Poles | 2 |
| Noise Level | 84 dBA |
| Output Rating | 55 kW |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer |
| Rated Amps | 176/87.8A |
| Rated Speed | 3570 RPM |
| Rated Torque | 110 lbs.-ft. |
| Rated Voltage | 230/460V |
| Regreasing System | At Drive End And Non-Drive End |
| Rotation | CW And CCW |
| Service Factor | 1.15 |
| Shaft Locking Device | Without |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Slip | 0.83% |
| Space Heater Voltage | 110-127/200-240V |
| Starting Method | Vfd |
| Synchronous Speed | 3600 RPM |
| Temp. Rise | 105 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Tropicalized Painting | Without |
| Voltage | 208-230/460/380V |
Shipping Info:
| Ship weight (kg) | 348.3 |
