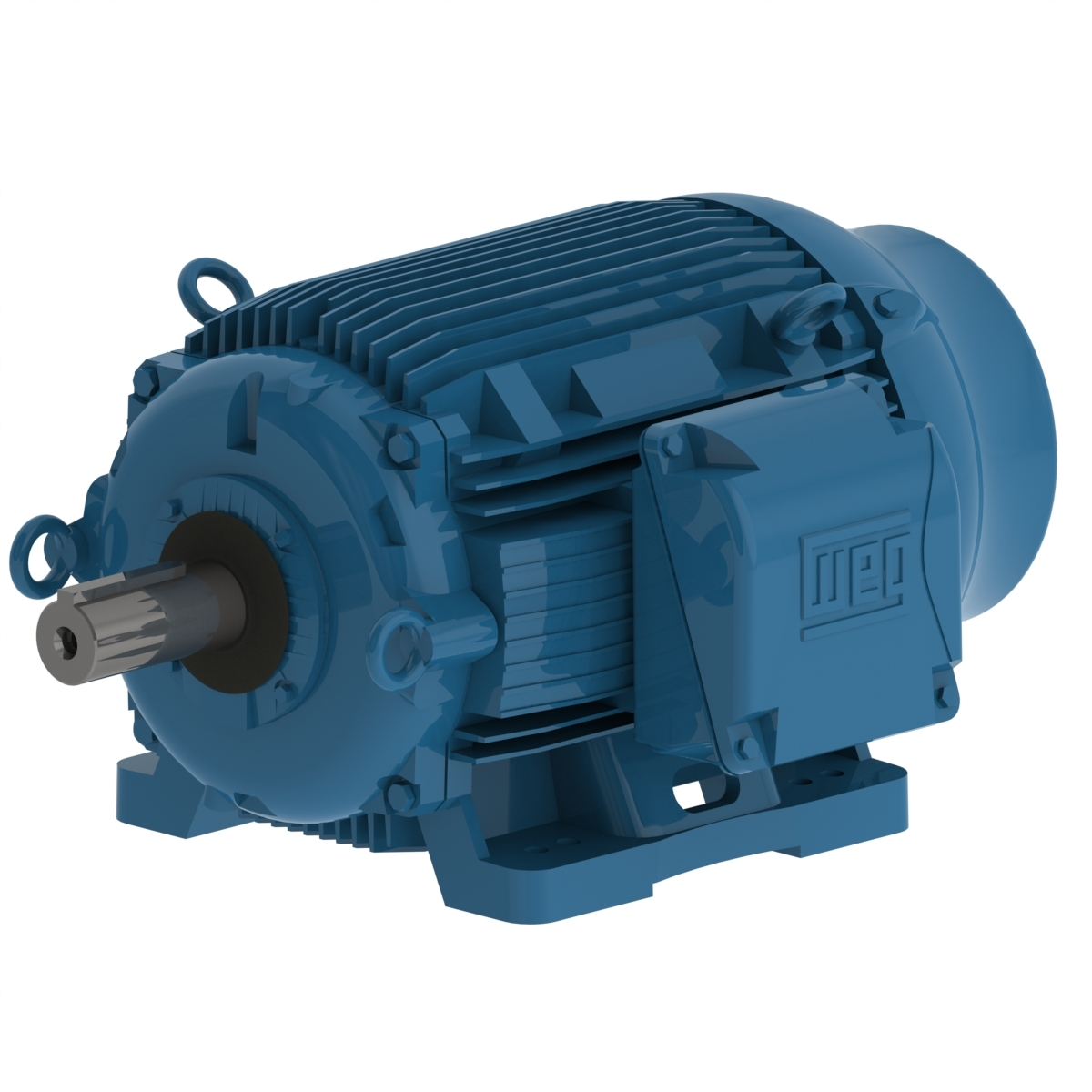

WEG 06089EP3PCT365V-W22 12175359 AC Severe Duty Motors, TEFC Enclosure, 364/5T Frame, 60/15 HP, 60 Hz, 3 Phase
Item: EC2LQHModel: 06089EP3PCT365V-W22Cross Ref: 12175359
7 In Stock
1800/900 rpm
60/15 hp
200V
Ships within 2 days via
€13,865.21 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | AC Motor |
| Application | Cooling Tower, Two Speed |
| Body Design Material | Cast Iron |
| Efficiency | 93% |
| Enclosure Iec | IP55 |
| Frame Size Nema | NEMA 364/5t |
| Frequency | 60 Hz |
| Hp | 60 hp, 15 hp |
| Inverter Rating | Non Compatible |
| Mount Arrangement | F2 |
| Mount Orientation | Horizontal, Vertical |
| Output Speed | 1780/900 RPM |
| Service Factor | 1.15 |
| Shaft Grounded Sgr | Not Available |
| Space Heater | 110-127/200-240VAC |
| Speed | 900/1800 RPM |
| Voltage | 200V |
| Vt Speed Range | 1000:1 |
| Windings | 1 |
Shipping Info:
| Ship weight (kg) | 0.99 |
Product Variants
| Product | Model | Voltage | Service Factor | Hp | Full Load Amps | Duty Cycle | Synchronous Speed | Shaft Material | Mounting | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
04089EP3QCT326V-W22 | 460V AC | 1 | 10 hp | 18A | S1 | 900/1800 RPM | Carbon Steel | Foot Mounted | - | RFQ
|
 |
00526EP3QCT254VF1-W2 | 460V AC | 1.15 | 5 hp | - | Continuous | 600/1200 RPM | Carbon Steel | Foot Mounted | €2,819.72 | |
 |
05089EP3PCT364VF1-W2 | 200V AC | 1.15 | - | - | S1 | 900/1800 RPM | Carbon Steel | Foot Mounted | €8,754.63 | |
|
10089EP3QCT444VF1-W2 | 460V AC | 1.15 | - | - | S1 | 900/1800 RPM | Carbon Steel | Foot Mounted | €19,074.96 | |
 |
01589EP3HCT254VF1-W2 | 575V AC | 1.15 | 3 3/4 hp, 15 hp | - | Continuous | 900/1800 RPM | Carbon Steel | Foot Mounted | €2,973.31 | |
|
05089EP3QCT364VF1-W2 | 460V AC | 1.15 | - | - | S1 | 900/1800 RPM | Carbon Steel | Foot Mounted | €8,621.57 | |
 |
00789EP3QCT213VF1-W2 | 460V AC | 1.15 | - | - | S1 | 900/1800 RPM | Carbon Steel | Foot Mounted | €1,932.88 |
