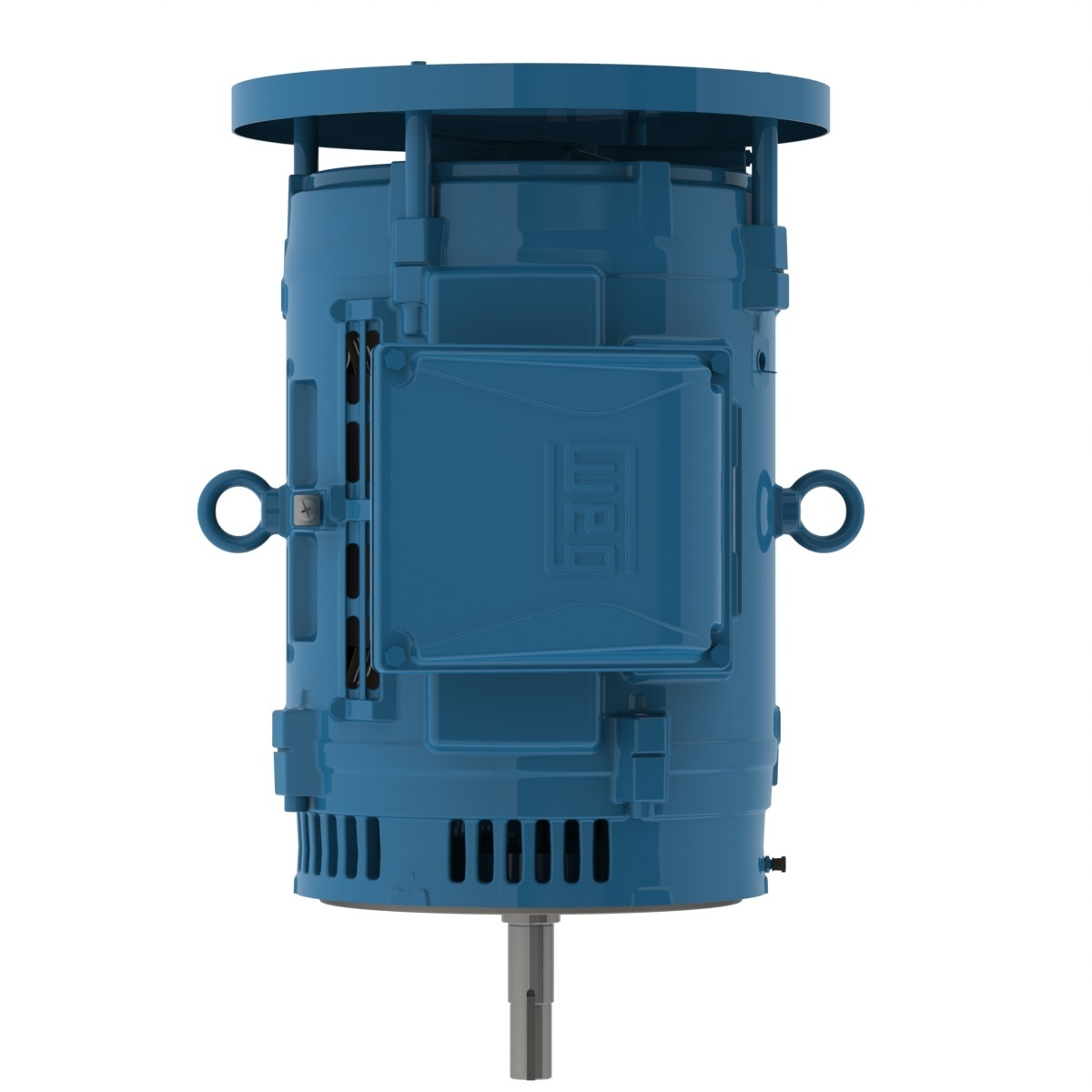

WEG 04018OT3E324JMV-W40 14837500 Pump Motor, 40 HP, 1800 RPM, 208-230/460V, ODP, 324/6JM, Footless
Get it by Tuesday, Aug 25
€5,122.35 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Close-Coupled Pump Motor |
| Altitude | 1000 m.a.s.l. |
| Ambient Temp. | -20°C to +40°C |
| Amps | 41.7A |
| Application | Closed Coupled |
| Balancing Method | 1/2 Key |
| Bearing Cap | Yes |
| Body Design Material | Cast Iron |
| Bolt Material | Carbon Steel |
| Break Down Torque | 330% |
| Cold Locked Rotor Time | 25 sec. |
| Connection Cables Quantity | 12 |
| Ct Speed Range | 2:1 |
| De Bearing Seal | No |
| Degree Of Protection | IP23 |
| Design | B |
| Drip Cover | With |
| Duty Cycle | Cont.(S1) |
| Efficiency | 94.1% |
| Enclosure Iec | IP23 |
| Enclosure Nema | Odp |
| Enclosure Rating | IC01 |
| Enclosure Type | Open Dripproof |
| Fan Cover Material | Without Fan Cover |
| Fan Material | Without Fan |
| Flange | C |
| Frame | 324/6jm |
| Frame Material | Cast Iron |
| Frame Size Nema | NEMA 324/6jm |
| Frequency | 50/60 Hz |
| Grade | Grade 1010/20 |
| Grounding Lugs Type | Single |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | F |
| Inverter Rating | Inverter Duty |
| L. R. Amps | 313A |
| Locked Rotor Time(hot) | 14 sec. |
| Locked Rotor Torque | 280% |
| Lrc | 7.5x(Code J) |
| Main Terminal Box Hole | 2" |
| Main Terminal Box Hole Type | NPT |
| Material | Carbon Steel |
| Moment Of Inertia | 5.69 lbs.-sq. ft. |
| Mount Arrangement | W6 |
| Mount Orientation | Vertical |
| Mounting | Footless, W-6 |
| Nde Bearing Seal | No |
| No Load Amps | 22.1A |
| No. Of Poles | 4 |
| Noise Level | 66 dBA |
| Output Rating | 22 kW |
| Output Speed | 1775 RPM |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer |
| Product Datasheet | weg-04018ot3e324jmv-w40.pdf |
| Rated Speed | 1480 RPM |
| Rated Torque | 106 lbs.-ft. |
| Regreasing System | At Drive End And Non-Drive End |
| Rotation | CW And CCW |
| Service Factor | 1 , 1.25 |
| Shaft Locking Device | Without |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Slip | 1.33% |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Tropicalized Painting | Without |
| Voltage | 230/460/380V , 415V |
| Vt Speed Range | 1000:1 |
Shipping Info:
| Ship weight (kg) | 213.3 |
