WEG 02536OP3EFP256JMV-S 13550954 Fire Pump Motor, 25 HP, 3600 RPM, 208-230/460 V, 3 Phase, ODP, 256JMV Frame, Footless
25 hp
256JMV
208-230/460V
Get it by Tuesday, Aug 25
€2,718.98 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Electric Motor |
| Altitude | 1000 M.A.S.L. , 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Amps | 29/58A , 58/29A |
| Balancing Method | 1/2" Key |
| Bearing Cap | Yes |
| Bolt Material | Carbon Steel |
| Break Down Torque | 280% |
| Cable Press Material | Sem |
| Cold Locked Rotor Time | 16 sec. |
| Composition | Steel |
| Connection Cables Quantity | 12 |
| Design | B |
| Drip Cover | With |
| Duty Cycle | S1 |
| Efficiency 50% | 75% , 90.2% |
| Efficiency 75% | 91% |
| Efficiency @ 1 % | 88% |
| Efficiency @ 100% | 91% |
| Efficiency @ 75 % | 84% |
| Enclosure | IC01 |
| Enclosure Type | ODP |
| Fan Cover Material | Without Fan Cover |
| Fan Material | Without Fan |
| Flange | C |
| Flange Type | C |
| Frame | 254/6JM |
| Frame Material | Rolled Steel |
| Frame Size | 254/6JM |
| Frequency | 50/60 Hz , 60 Hz |
| Grounding Lugs | Superior |
| Hot Locked Rotor Time | 9 sec. |
| Hp | 25 hp |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | Class F |
| L. R. Amps | 180/360A , 360/180A |
| Locked Rotor Time | 9 sec. |
| Locked Rotor Time (cold) | 16 sec. |
| Locked Rotor Torque | 180% |
| Lrc | 6.2X(Code G) |
| Main Terminal Box Hole | 1.732" |
| Main Terminal Box Hole Size | 1.732" |
| Moment Of Inertia | 0.8718 lbs.-sq. ft. |
| Moment Of Inertia (j) | 0.8718 lbs.-sq. ft. |
| Motor Enclosure Design | Open Dripproof |
| Motor Speed | 3530 RPM |
| Mounting | Footless , W-6 |
| No Load Amps | 11.2/22.4A , 22.4/11.2A |
| No. Of Poles | 2 |
| Noise Level | 70 dBA |
| Output | 25 hp |
| Output Rating | 25 hp |
| Overload Protection | No |
| Overload Protector | Without Overload Protector |
| Painting | RAL3002 207N (ISO 12944-C2) |
| Phase | 3 |
| Power Factor 100% | 0.88 |
| Power Factor 50% | 0.75 |
| Power Factor 75% | 0.84 |
| Power Factor @ 1 % | 91 |
| Power Factor @ 50 % | 90.2 |
| Power Factor @ 75 % | 91 |
| Regreasing System | At Drive End And Non Drive End , At Drive End And Non-Drive End |
| Resilient Base | Without |
| Rotation | CW, CCW |
| Screw Cap | Carbon Steel |
| Service Factor | 1.15 |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Slip | 1.94% |
| Speed | 3400-3600 RPM , 3530 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 3600 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Torque | 37.2 lbs.-ft. |
| Tropicalized Painting | Without |
| Voltage | 190-220/230/380-415/460V , 230/460/190-220/380-415V AC , 230/460V AC |
Shipping Info:
| Ship weight (kg) | 98.55 |
| Ship height (cm) | 25.4 |
| Ship length (cm) | 50.8 |
| Ship width (cm) | 25.4 |
| Country of Origin | US |
Product Variants
| Model | Voltage | Hp | Frequency | No Load Amps | Mounting | Output Rating | Grounding Lugs | Altitude | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

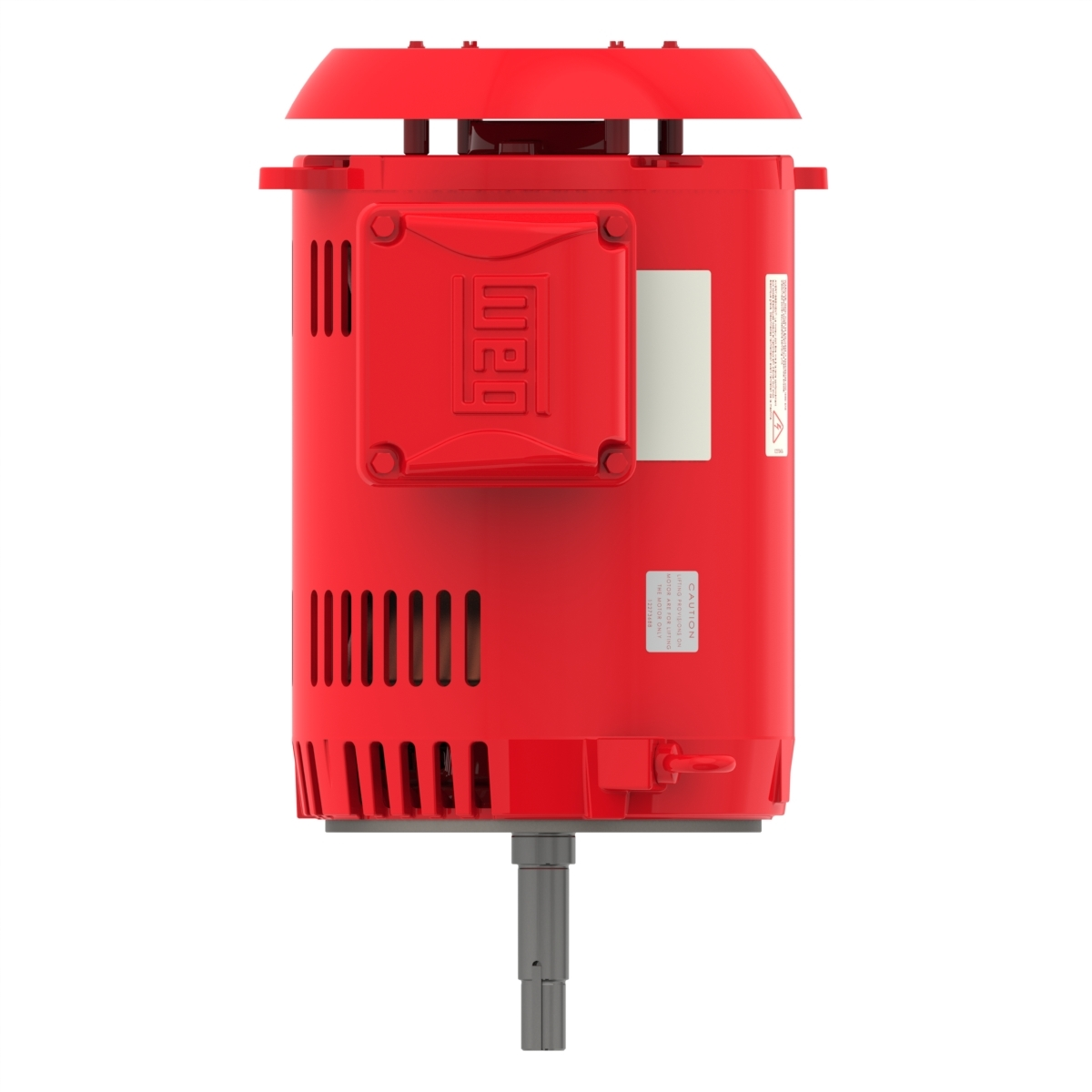

| 01036OP3VFP213JMV-S | 200/400V AC | 10 hp | 60 Hz | 11.8/5.89A | Footless | 10 hp | Single | 1000 MASL | €1,432.89 | |

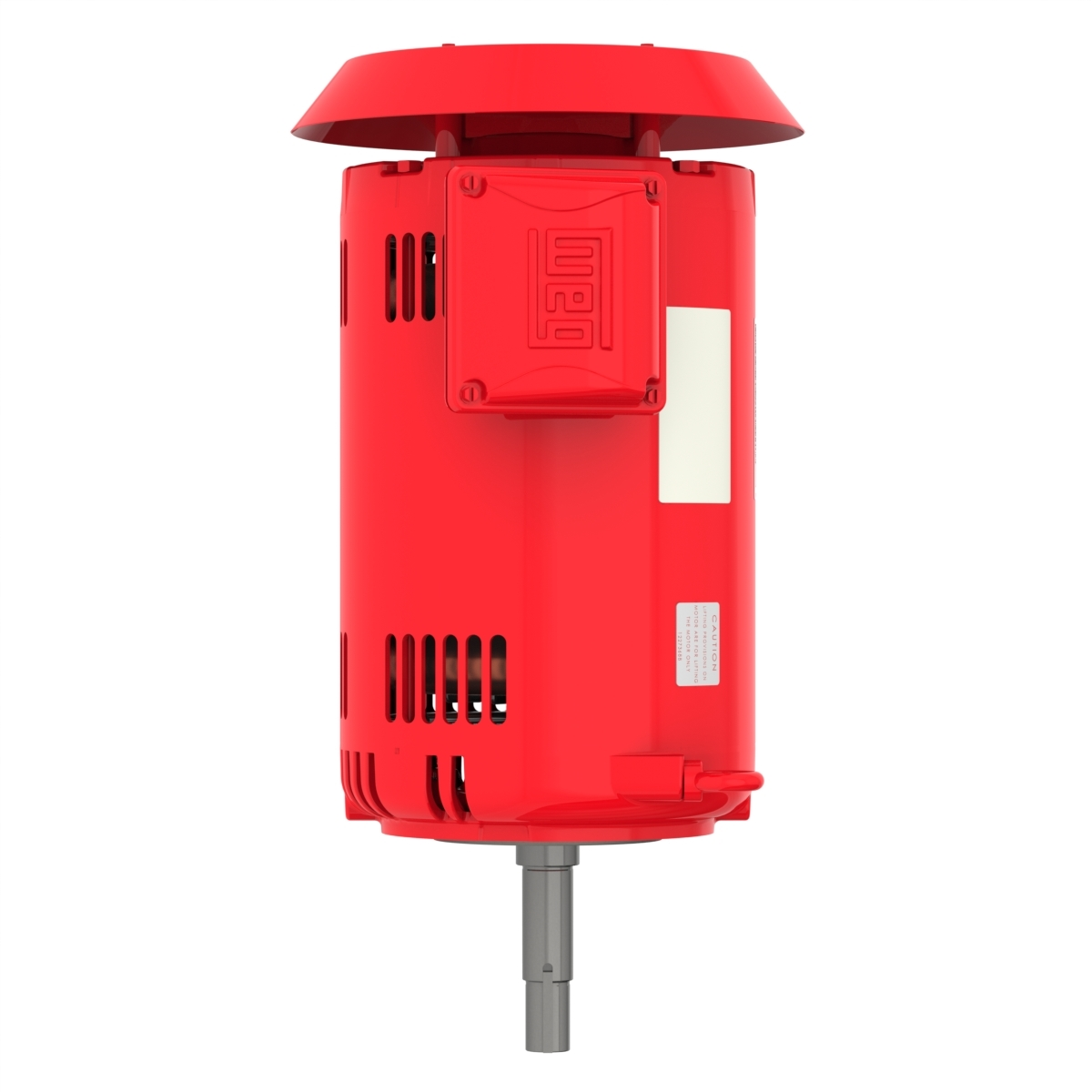

| 00736OP3EFP184JMV-S | 230/460V AC | 7 1/2 hp | 60 Hz | 6.99/3.49A | Footless | 7 1/2 hp | Single | 1000 MASL | €1,109.11 | |
| 00736OP3HFP184JMV-S | 575V AC | 7 1/2 hp | 60 Hz | 2.8A | Footless | 7 1/2 hp | Single | 1000 MASL | €1,109.11 | |
| 00736OP3VFP184JMV-S | 200/400V AC | 7 1/2 hp | 60 Hz | 8.04/4.02A | Footless | 7 1/2 hp | Single | 1000 MASL | €1,109.11 | |
| 01036OP3EFP213JMV-S | 230/460V AC | 10 hp | 60 Hz | 10.3/5.13A | Footless | 10 hp | Single | 1000 MASL | €1,432.89 | |
| 01036OP3HFP213JMV-S | 575V AC | 10 hp | 60 Hz | 4.1A | Footless | 10 hp | Single | 1000 MASL | €1,432.89 | |
| 01536OP3EFP215JMV-S | 230/460V AC | 15 hp | 60 Hz | 14.7/7.36A | Footless | 15 hp | Single | 1000 MASL | €1,880.99 |
