WEG 02018OP3EFP256JPV-S 13550883 Electric Motor, 20Hp, 60Hz, 1800 Rpm
Get it by Friday, Dec 19
€2,549.04 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Electric Motor |
| Altitude | 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Balancing Method | 1/2" Key |
| Bearing Cap | Yes |
| Bolt Material | Carbon Steel |
| Break-down Torque | 220% |
| Cold Locked Rotor Time | 21 sec. |
| Composition | Steel |
| Connection Cables Quantity | 12 |
| Design | B |
| Drip Cover | With |
| Duty Cycle | S1 |
| Efficiency At 1 % | 81% |
| Efficiency At 50 % | 67% |
| Efficiency At 75 % | 78% |
| Enclosure Type | ODP |
| Fan Cover Material | Without Fan Cover |
| Fan Material | Without Fan |
| Flange Type | C |
| Frame | 254/6JP |
| Frame Material | Rolled Steel |
| Frame Size | 254/6JP |
| Frequency | 60 Hz |
| Grounding Lugs | Superior |
| Hot Locked Rotor Time | 12 sec. |
| Hp | 20 hp |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | Class F |
| L. R. Amps | 281/140A |
| Locked Rotor Torque | 190% |
| Lrc | 5.5X(Code F) |
| Main Terminal Box Hole Size | 1.732" |
| Moment Of Inertia | 1.28 lbs.-sq. ft. |
| Motor Enclosure Design | Open Dripproof |
| Motor Speed | 1755 RPM |
| Mounting | Footless |
| No Load Amps | 23/11.5A |
| No. Of Poles | 4 |
| Noise Level | 64 dBA |
| Output | 20 hp |
| Output Rating | 20 hp |
| Overload Protector | Without Overload Protector |
| Painting | RAL3002 207N (ISO 12944-C2) |
| Phase | 3 |
| Power Factor At 1 % | 91 |
| Power Factor At 50 % | 91 |
| Power Factor At 75 % | 91 |
| Rated Current | 51/25.5A |
| Rated Torque | 59.8 lbs.-ft. |
| Rated Voltage | 230/460V AC |
| Regreasing System | At Drive End And Non Drive End |
| Resilient Base | Without |
| Rotation | CW/CCW |
| Rpm | 1700-1800 RPM |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Ships Factory Direct | No |
| Slip | 2.5% |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Tropicalized Painting | Without |
| Voltage | 230/460/190-220/380-415V AC |
Shipping Info:
| Ship weight (kg) | 98.55 |
| Ship height (cm) | 25.4 |
| Ship length (cm) | 50.8 |
| Ship width (cm) | 25.4 |
| Country of Origin | US |
Product Variants
| Model | Voltage | Hp | Frequency | Frame | Break-down Torque | Synchronous Speed | No Load Amps | Mounting | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

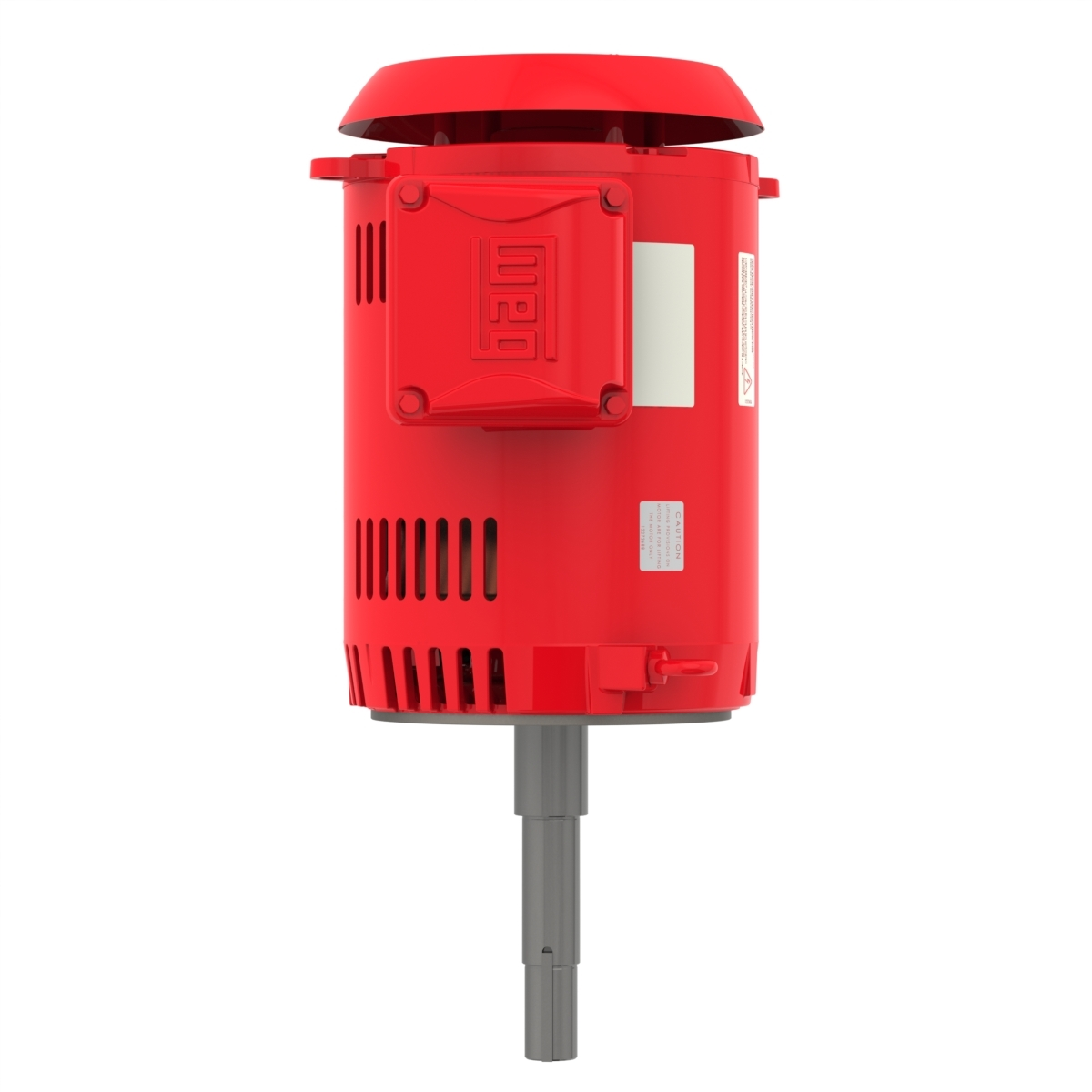

| 01518OP3EFP254JPV-S | 230/460/190-220/380-415V AC | 15 hp | 50/60 Hz | 254/6JP | 229% | 1800 RPM | 16.9/8.47A | Footless | €2,135.19 | |
| 00718OP3EFP213JPV-S | 230/460/190-220/380-415V AC | 7 1/2 hp | 60 Hz | 213/5JP | 260% | 1800 RPM | 8.64/4.32A | Footless | €1,226.48 | |
| 00718OP3HFP213JPV-S | 575V AC | 7 1/2 hp | 60 Hz | 213/5JP | 260% | 1800 RPM | 3.46A | Footless | €1,226.48 | |

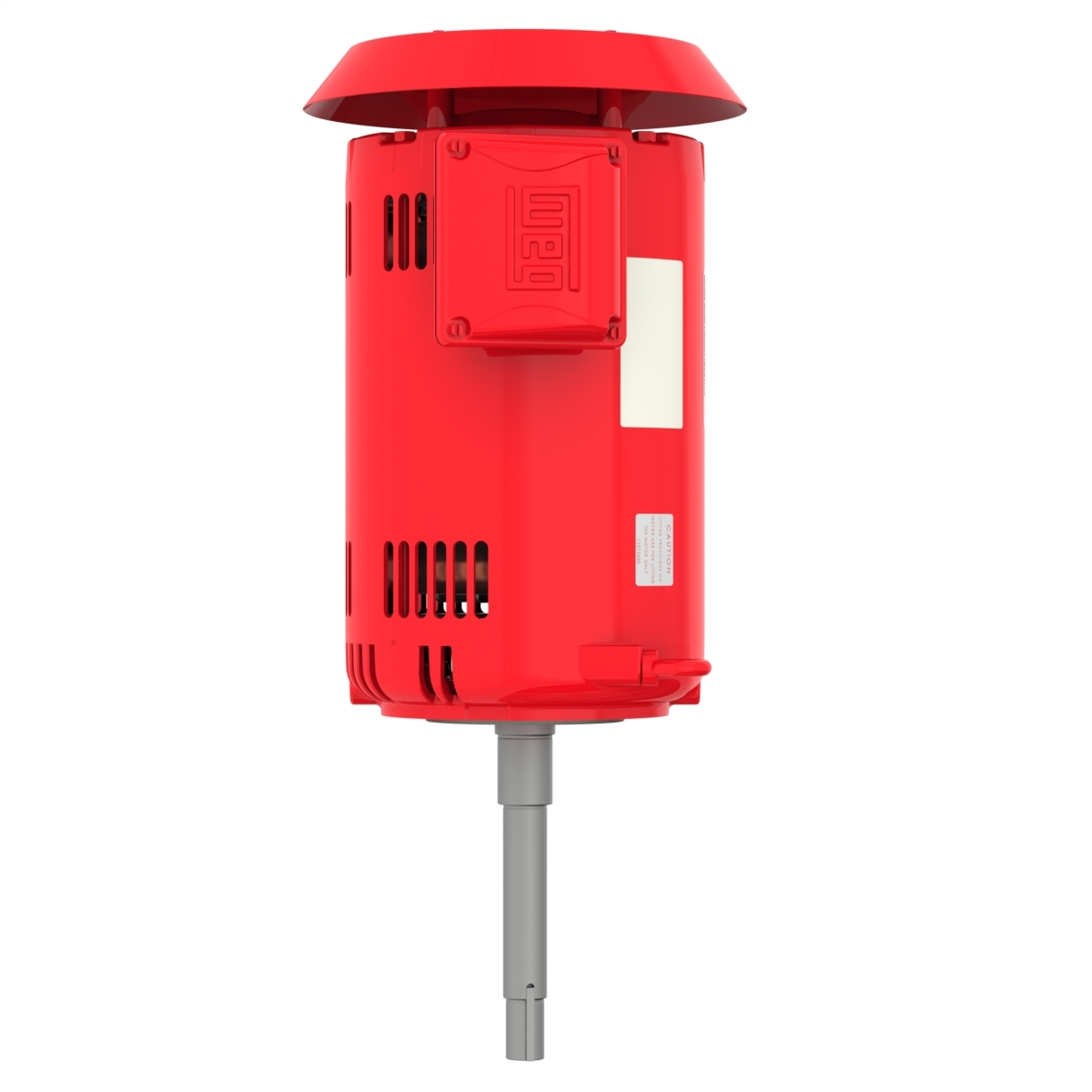

| 00736OP3EFP184JPV-S | 230/460/190-220/380-415V AC | 7 1/2 hp | 50/60 Hz | 182/4JP | 280% | 3600 RPM | 6.99/3.49A | Footless | €1,184.72 | |
| 00736OP3HFP184JPV-S | 575V AC | 7 1/2 hp | 60 Hz | 182/4JP | 280% | 3600 RPM | 2.8A | Footless | €1,184.72 | |
| 00736OP3VFP184JPV-S | 200/400V AC | 7 1/2 hp | 60 Hz | 182/4JP | 280% | 3600 RPM | 8.04/4.02A | Footless | €1,184.72 | |
| 01018OP3EFP215JPV-S | 230/460/190-220/380-415V AC | 10 hp | 50/60 Hz | 213/5JP | 270% | 1800 RPM | 11.2/5.62A | Footless | €1,485.39 |
