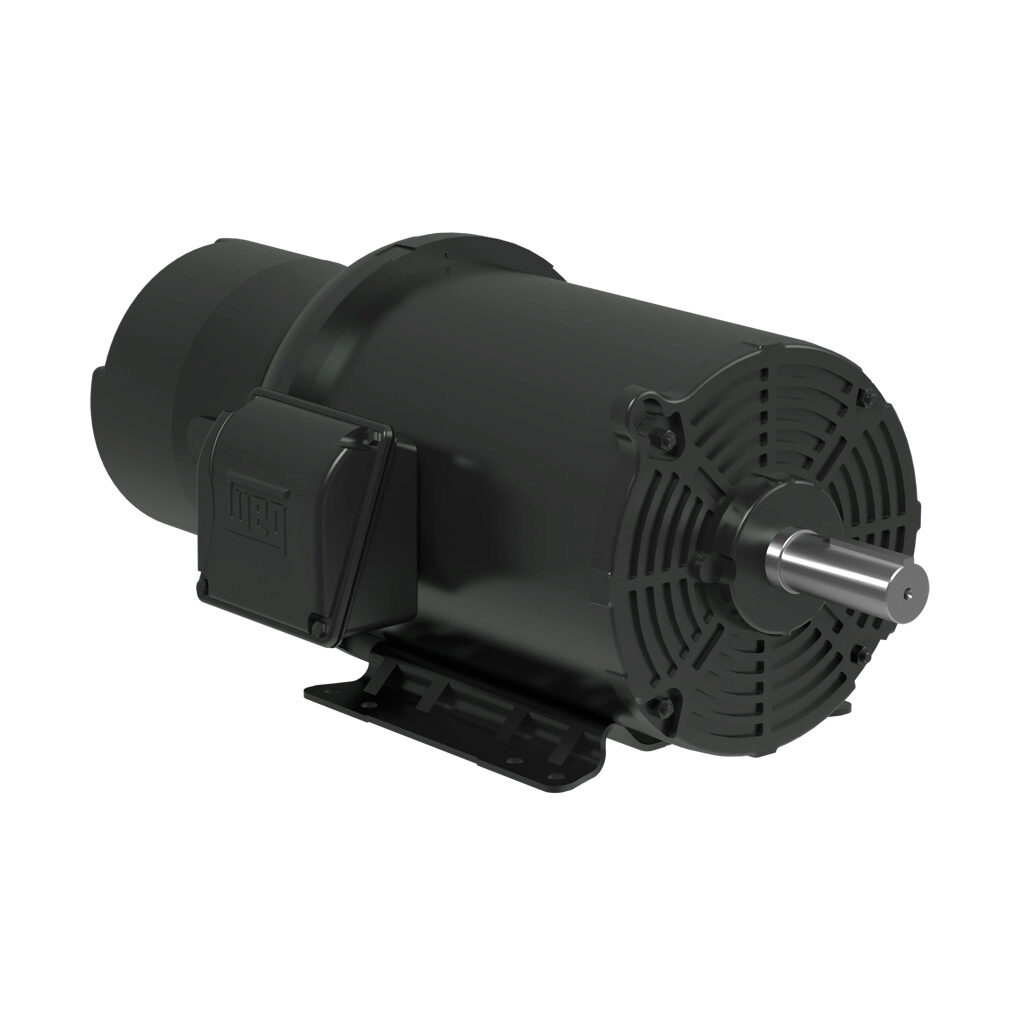

WEG 01518ET3EBM254T-S 14593678 Brake Motor, 15 HP, 1800 RPM, 254/6T Frame, 415 V Rated
Get it by Monday, Aug 24
€8,001.81 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | AC Induction Motor |
| Altitude | 1000 m.a.s.l. |
| Ambient Temp. | -20°C to +40°C |
| Amps | 20.6A |
| Application | Brakemotor |
| Balancing Method | 1/2 Key |
| Bearing Cap | No |
| Body Design Material | Rolled Steel |
| Bolt Material | Carbon Steel |
| Brake | 75 lbs.-ft. |
| Brake Input Voltage | 208-230/460/190/380V |
| Break Down Torque | 280% |
| Cold Locked Rotor Time | 0 sec. |
| Connection Cables Quantity | 12 |
| Ct Speed Range | 2:1 |
| De Bearing Seal | V Ring |
| Degree Of Protection | IP55 |
| Design | B |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | Cont.(S1) |
| Efficiency | 92.4% |
| Enclosure Iec | IP55 |
| Enclosure Nema | Tefc |
| Enclosure Rating | IC411 |
| Enclosure Type | Totally Enclosed Fan Cooled |
| Fan Cover Material | Aluminum |
| Fan Material | Plastic |
| Flange | Without |
| Frame | 254/6t |
| Frame Material | Rolled Steel |
| Frame Size Nema | NEMA 254/6t |
| Frequency | 50/60 Hz |
| Grade | Grade 1010/20 |
| Grounding Lugs Type | Superior |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | F |
| Inverter Rating | Inverter Ready |
| L. R. Amps | 134A |
| Locked Rotor Time(hot) | 0 sec. |
| Locked Rotor Torque | 229% |
| Lrc | 6.5x(Code H) |
| Main Terminal Box Hole | 1 1/4" |
| Main Terminal Box Hole Type | NPT |
| Material | Carbon Steel |
| Moment Of Inertia | 2.15 lbs.-sq. ft. |
| Mount Arrangement | F1 |
| Mounting | Foot-Mounted, F-1 |
| Nde Bearing Seal | No |
| No Load Amps | 9.86A |
| No. Of Poles | 4 |
| Noise Level | 65 dBA |
| Output Rating | 11 kW |
| Output Speed | 1770/1455 RPM |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer |
| Rated Speed | 1465 RPM |
| Rated Torque | 53.8 lbs.-ft. |
| Regreasing System | At Drive End And Non-Drive End |
| Resilient Base | Without |
| Rotation | CW And CCW |
| Service Factor | 1 , 1.15 |
| Shaft Grounded Sgr | Not Available |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Slip | 2.33% |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 105 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Tropicalized Painting | Without |
| Voltage | 230/460/190-220/380-415V , 415V |
| Vt Speed Range | 1000:1 |
Shipping Info:
| Ship weight (kg) | 116.55 |
| Country of Origin | BR |
