WEG 01036ES3ESA90LR 13574454 Arbor Motor, 10 Hp, 3480 Rpm, 208-230/460v
Get it by Wednesday, Dec 24
10.00% off
€2,473.05 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Saw Arbor Motor |
| Ambient Temp. Range | 40°C |
| Bearing Type | Ball |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1 |
| Duty Cycle | Continuous |
| Efficiency | 50% |
| Enclosure Type | Tefc |
| Extended Thru-bolts | No |
| Frame | 90L |
| Frame Material | Cast Iron |
| Frequency | 60 Hz |
| Full Load Amps | 27.2-24.6/12.3A |
| Hp | 10 hp |
| Hz | 60 Hz |
| Includes | Terminal Box |
| Ins. Class | Class F |
| Insulation Class | Class F |
| Length Less Shaft | 23 15/16" |
| Manufacturers Warranty Length | 1.5 yrs. |
| Max. Ambient Temp. | 40°C |
| Motor Application | Power Tool |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Air Over |
| Motor Frame Material | Cast Iron |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Counter Clockwise Shaft End |
| Motor Type | Three Phase |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 3480 RPM |
| No. Of Shafts | 1 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 85% |
| Number Of Poles | 2 |
| Overall Length | 26 7/16" |
| Phase | 3 |
| Rotation | CCW |
| Rpm | 3480 RPM |
| Service Factor | 1 |
| Shaft Dia. | 1 3/16" |
| Shaft Length | 2 1/2" |
| Shaft Material | Carbon Steel |
| Starting Method | Direct On Line |
| Synchronous Speed | 3600 RPM |
| Thermal Protection | None |
| Torque | 14.9 lbs.-ft. |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 208-230/460V AC |
| Weight | 166 lbs. |
Shipping Info:
| Ship weight (kg) | 84.6 |
| Ship height (cm) | 25.4 |
| Ship length (cm) | 67.15 |
| Ship width (cm) | 35.56 |
| HS code | 8501524000 |
| Country of Origin | BR |
Product Variants
| Model | Voltage | Hp | Nameplate Rpm | Frame | Full Load Amps | Service Factor | Usable @ 208v | Nominal Efficiency | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 00336ES3ESA80SR | 208-230/460V AC | 3 hp | 3500 RPM | 80S/MS | 9.49-8.58/4.29A | 1 | Yes | 80.5% | €1,485.15 | |
| 00536ES3ESA80MR | 208-230/460V AC | 5 hp | 3470 RPM | 80M | 13.3-14.7/6.7A | 1 | Yes | 80.5% | €1,733.47 | |
| 00518ES3ESA90LR | 208-230/460V AC | 5 hp | 1740 RPM | 90L | 15.5-14.1/7.03A | 1.15 | Yes | 84.5% | €2,444.71 | |

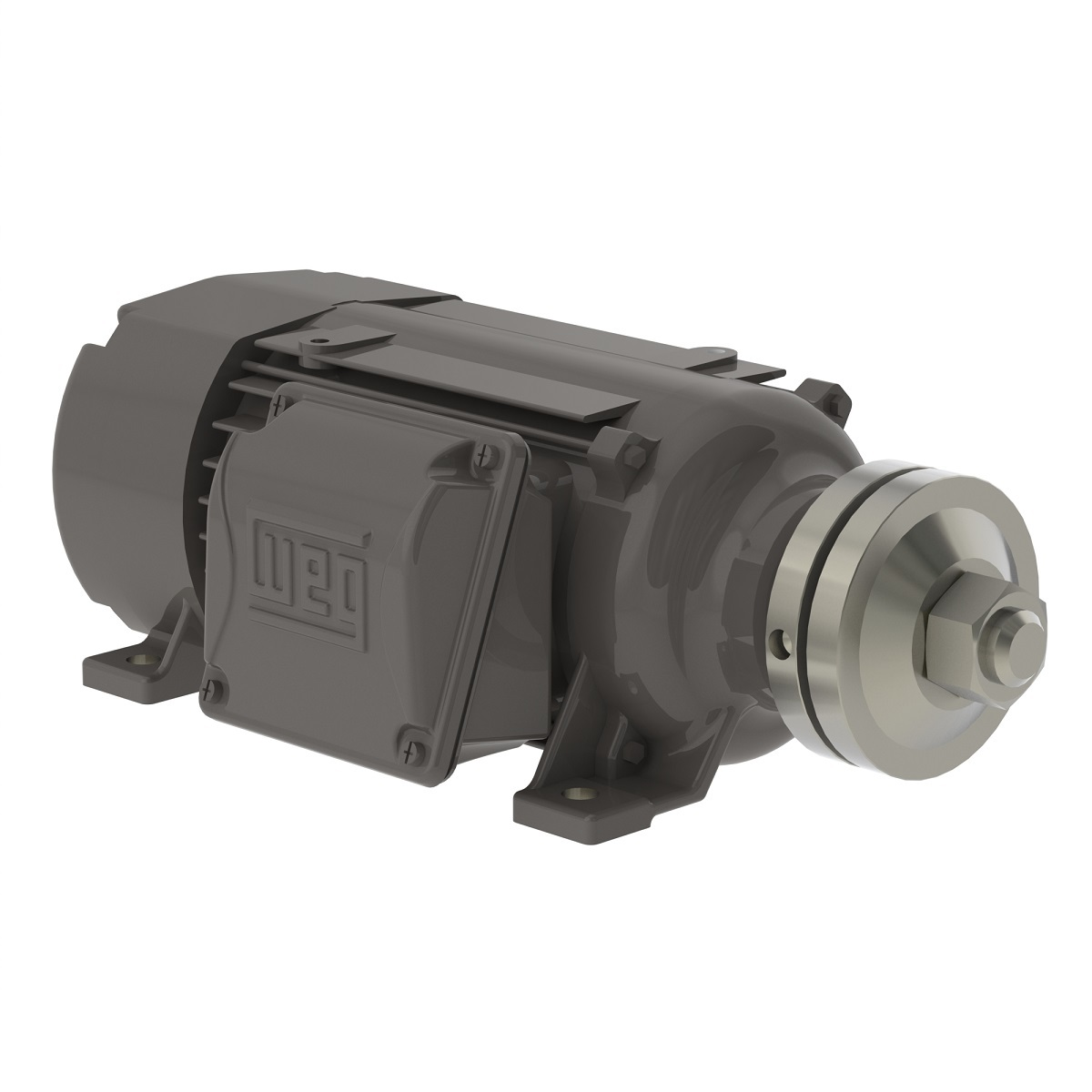

| 00736ES3ESA80LR | 208-230/460V AC | 7 1/2 hp | 3490 RPM | 80L | 21.6-19.5/9.76A | 1 | Yes | 87.4% | €2,278.86 | |
| 00736ES3HSA80LR | 575V | 7 1/2 hp | 3600 RPM | 80L | 7.8A | 1 | No | 87.4% | €2,133.76 | |
| 00718ES3ESA90LR | 208-230/460V AC | 7 1/2 hp | 1730 RPM | 90L | 22.4-20.3/10.1A | 1 | Yes | 85.3% | €2,654.92 | |
| 01036ES3HSA90LR | 575V AC | 10 hp | 3600 RPM | 90L | 9.83A | 1 | No | 85% | - | RFQ
|
