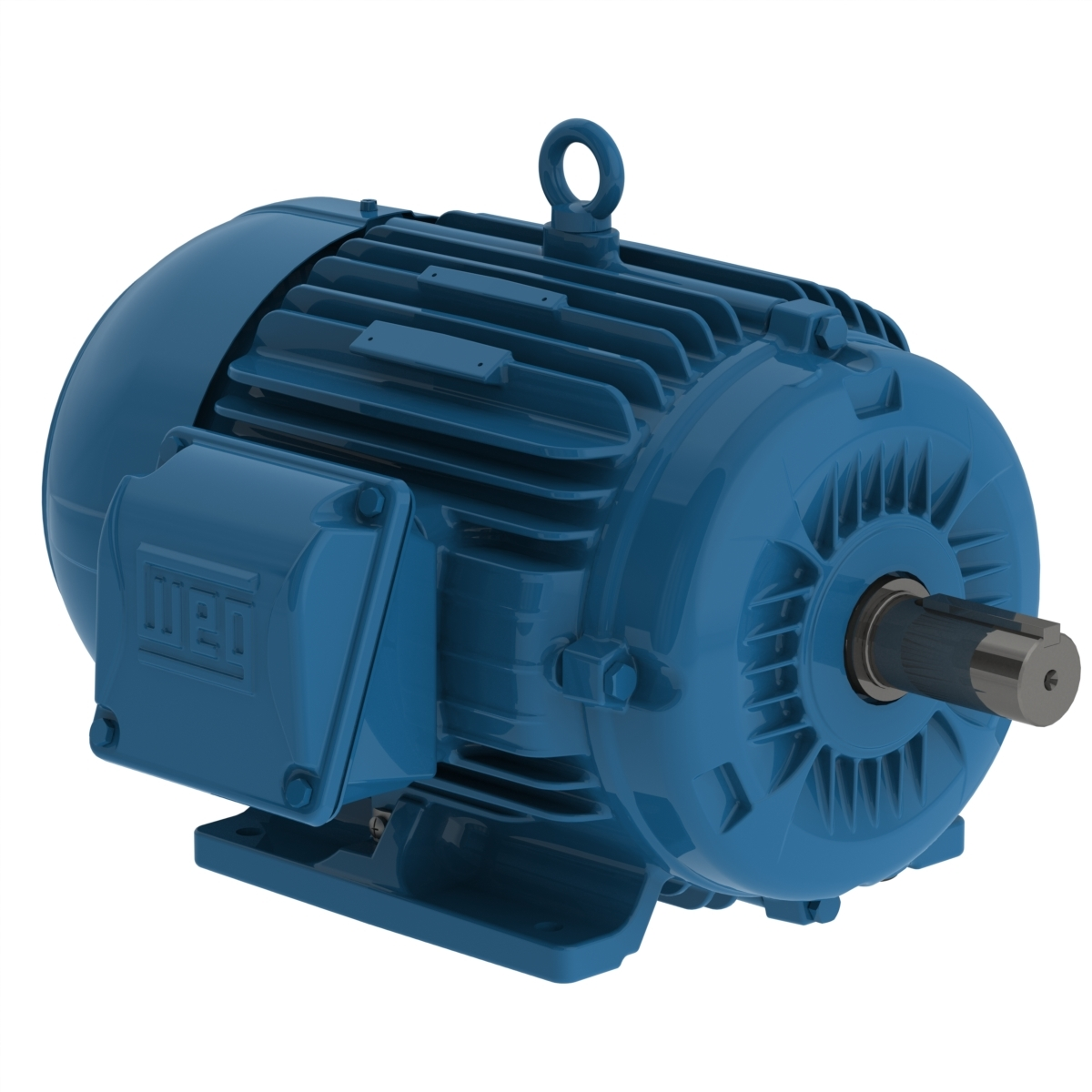

WEG 01018ET3E215T-W22G 13367319 Pump Motor, 10 HP, 4 Poles, 213/5T Frame, 3 Phase, 230/460//380 V, 60//50 Hz, IC411-TEFC, Foot Mounted
Get it by Tuesday, Feb 24
€1,713.46 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Altitude | 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Balancing Method | 1/2" Key |
| Bearing Cap | Yes |
| Break-down Torque | 2.95 lbs.-ft. |
| Cold Locked Rotor Time | 30 sec. |
| Connection Cables Quantity | 9 |
| Design | B |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | Continuous |
| Efficiency At 1 % | 83% |
| Efficiency At 50 % | 66% |
| Efficiency At 75 % | 77% |
| Enclosure Type | Tefc |
| Fan Cover Material | Steel |
| Fan Material | Plastic |
| Flange Type | Without |
| Frame | 213/5T |
| Frame Material | Cast Iron |
| Frame Size | 215T |
| Frequency | 50/60 Hz |
| Grounding Lugs | Single |
| Hot Locked Rotor Time | 17 sec. |
| Impregnation Method | Dip And Bake Polyester |
| L. R. Amps | 159/79.4A |
| Locked Rotor Torque | 200% |
| Lrc | 6.4X(Code H) |
| Main Terminal Box Hole Size | 1" |
| Main Terminal Box Hole Type | NPT |
| Moment Of Inertia | 1.51 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Speed | 1765 RPM |
| Mounting | Foot Mounted |
| No Load Amps | 11.3/5.65A |
| No. Of Poles | 4 |
| Noise Level | 58 dBA |
| Output | 10 hp |
| Output Rating | 10 hp |
| Overload Protector | Without Overload Protector |
| Painting | RAL5009 207A (ISO 12944-C2) |
| Phase | 3 |
| Power Factor At 1 % | 91.7 |
| Power Factor At 50 % | 91 |
| Power Factor At 75 % | 91.7 |
| Rated Current | 24.8/12.4A |
| Rated Torque | 29.8 lbs.-ft. |
| Rated Voltage | 230/460V AC |
| Rotation | Clockwise/Counter Clockwise |
| Rpm | 1700-1800 RPM |
| Service Factor | 1.25 |
| Shaft Locking Device | Without |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Slip | 1.94% |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Tropicalized Painting | Without |
| Voltage | 230/460/380V AC |
Shipping Info:
| Ship weight (kg) | 85.5 |
| Ship height (cm) | 23.83 |
| Ship length (cm) | 32.39 |
| Ship width (cm) | 24.13 |
| Country of Origin | US |
Product Variants
| Model | Service Factor | Frequency | Hp | Full Load Amps | Nameplate Rpm | Motor Type | Mounting Type | Rpm | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 00158ET3W90L-W22 | 1 | 50 Hz | 2 hp | 2.8A | 1755 RPM | - | Rigid Base | 1700-1800 RPM | €914.46 | |
| 00218ET3W100L-W22 | 1 | 60 Hz | 3 hp | 4.1A | 1750 RPM | - | Rigid Base | 1700-1800 RPM | €1,095.12 | |
| 00418ET3Y112M-W22 | 1 | 50 Hz | 5 1/2 hp | 7.3A | 1755 RPM | - | Rigid Base | 1700-1800 RPM | €1,177.86 | |
| 00518ET3Y132S-W22 | 1 | 60 Hz | 7 1/2 hp | 9.1A | 1775 RPM | - | Rigid Base | 1700-1800 RPM | €1,613.01 | |
| 00718ET3Y132M-W22 | 1 | 50 Hz | 10 hp | 12.2A | 1770 RPM | - | Rigid Base | 1700-1800 RPM | €1,918.09 | |
| 01818ET3Y180MFF-W22 | 1.25 | 50/60 Hz | 25 hp | 30.6A | 1775 RPM | - | Face/Base | 1700-1800 RPM | €4,486.20 | |
| 02218ET3Y180LFF-W22 | 1.25 | 50/60 Hz | 30 hp | 36A | 1775 RPM | - | Face/Base | 1700-1800 RPM | €5,926.53 |
