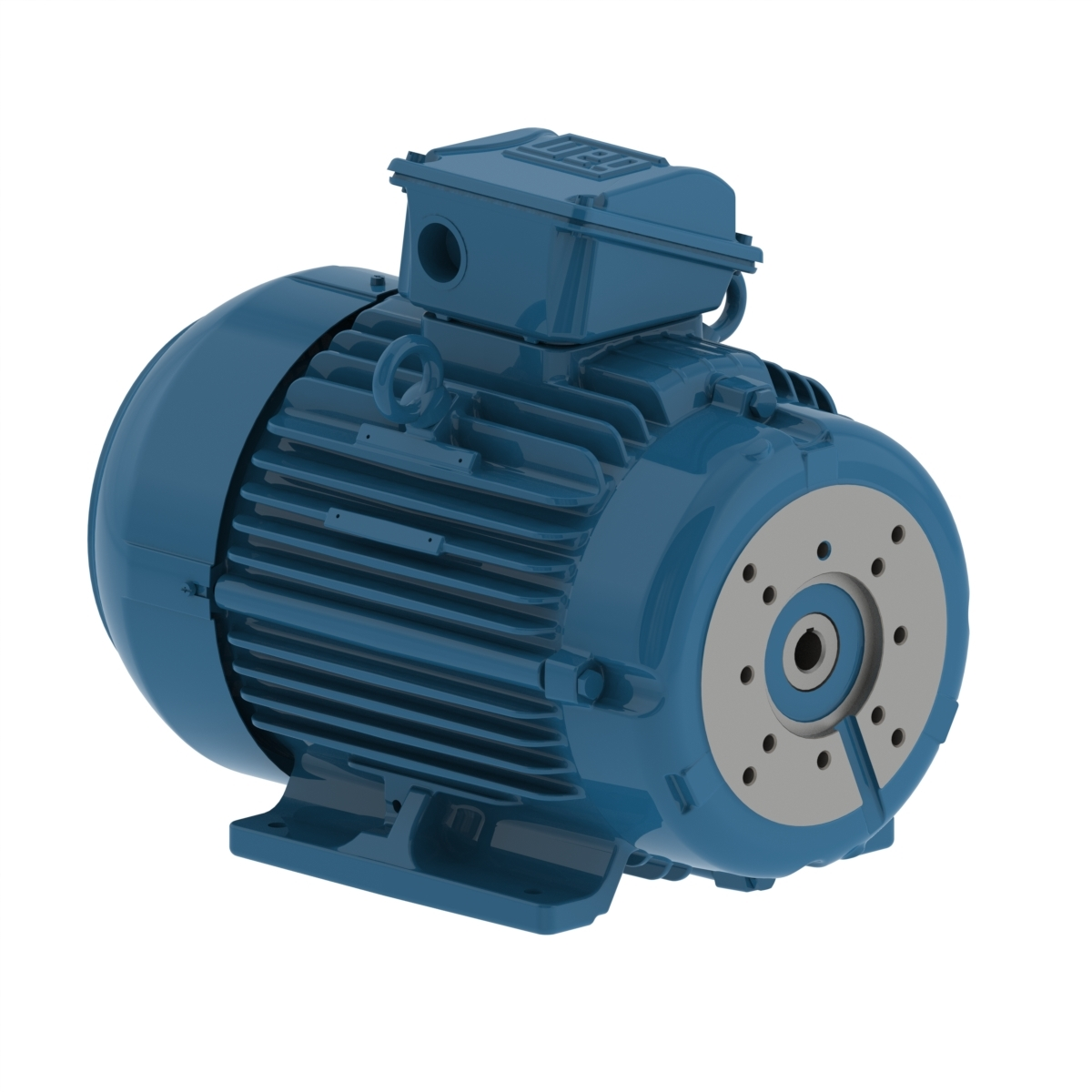

WEG 01018EP3EHP215TYZ7F3 13565753 Hydraulic Pump, 10 HP, 1800 RPM, 208/230/460V, TEFC, 215TYZ, Footed, F3 Mounting-High Efficiency, Hydraulic Pump
Get it by Tuesday, May 19
€1,503.45 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Electric Motor |
| Altitude | 1000 M.A.S.L. , 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Balancing Method | 1/2" Key |
| Bearing Cap | No |
| Break-down Torque | 430% |
| Breakdown Torque | 430% |
| Cable Press Material | Sem |
| Cold Locked Rotor Time | 18 sec. |
| Composition | Cast Iron |
| Connection Cables Quantity | 9 |
| Design | A |
| Dimension(c) | 16.312" |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | Intermittent , S3 |
| Efficiency @ 100% | 89.5% |
| Efficiency @ 50% | 84% |
| Efficiency @ 75% | 87.5% |
| Efficiency At 1 % | 67% |
| Efficiency At 50 % | 43% |
| Efficiency At 75 % | 57% |
| Enclosure | IC411 |
| Enclosure Type | Tefc |
| Fan Cover Material | Steel |
| Fan Material | Plastic |
| Fl Amps | 15A |
| Fl Efficiency | 89.5% |
| Flange | Special |
| Flange Type | Special |
| Frame | 215 TYZ , 215TYZ |
| Frame Material | Cast Iron |
| Frequency | 60 Hz |
| Grounding Lugs | Single |
| Hot Locked Rotor Time | 10 sec. |
| Hp | 10 hp |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | Class F |
| Kw | 7.5 kW |
| L. R. Amps | 316-286/143A |
| L.r. Amperes | 143/286-316A |
| Locked Rotor Time (cold) | 18 sec. |
| Locked Rotor Time (hot) | 10 sec. |
| Locked Rotor Torque | 340% |
| Lrc | 9.1X(Code N) |
| Main Terminal Box Hole | 1" |
| Main Terminal Box Hole Size | 1" |
| Main Terminal Box Hole Type | NPT |
| Main Terminal Box Type | NPT |
| Moment Of Inertia | 1.51 lbs.-sq. ft. |
| Moment Of Inertia (j) | 1.51 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Speed | 1775 RPM |
| Mounting | F-3 , Foot Mounted |
| No Load Amps | 10.8/21.6-23.9A , 23.9-21.6/10.8A |
| No. Of Poles | 4 |
| Noise Level | 58 dBA |
| Output | 10 hp |
| Output Rating | 10 hp |
| Overload Protection | No |
| Overload Protector | Without Overload Protector |
| Painting | RAL5009 207A (ISO 12944-C2) |
| Phase | 3 |
| Power Factor 50% | 0.43 |
| Power Factor 75% | 0.57 |
| Power Factor At 1 % | 89.5 |
| Power Factor At 50 % | 84 |
| Power Factor At 75 % | 87.5 |
| Power Factor_100% | 0.67 |
| Rated Current | 15.7/31.4-34.7A , 34.7-31.4/15.7A |
| Rated Speed | 1775 RPM |
| Rated Torque | 29.6 lbs.-ft. |
| Rated Voltage | 208-230/460V , 208-230/460V AC |
| Rotation | CW/CCW |
| Rpm | 1800 RPM |
| Screw Cap | Carbon Steel |
| Service Factor | 1.15 |
| Shaft Locking Device | Without |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Slip | 1.39% |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Top |
| Tropicalized Painting | Without |
| Voltage | 208-230/460V AC |
Shipping Info:
| Ship weight (kg) | 85.05 |
| Ship height (cm) | 32.26 |
| Ship length (cm) | 52.83 |
| Ship width (cm) | 37.08 |
| Country of Origin | US |
Product Variants
| Product | Model | Hp | Frame | Duty Cycle | Break-down Torque | No Load Amps | Mounting | Output Rating | Altitude | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
00718EP3EHP213TYZ7F3 | 7 1/2 hp | 213TYZ | Intermittent | 409% | 16.8-15.2/7.6A | Foot Mounted | 7 1/2 hp | 1000 MASL | €1,307.80 |
