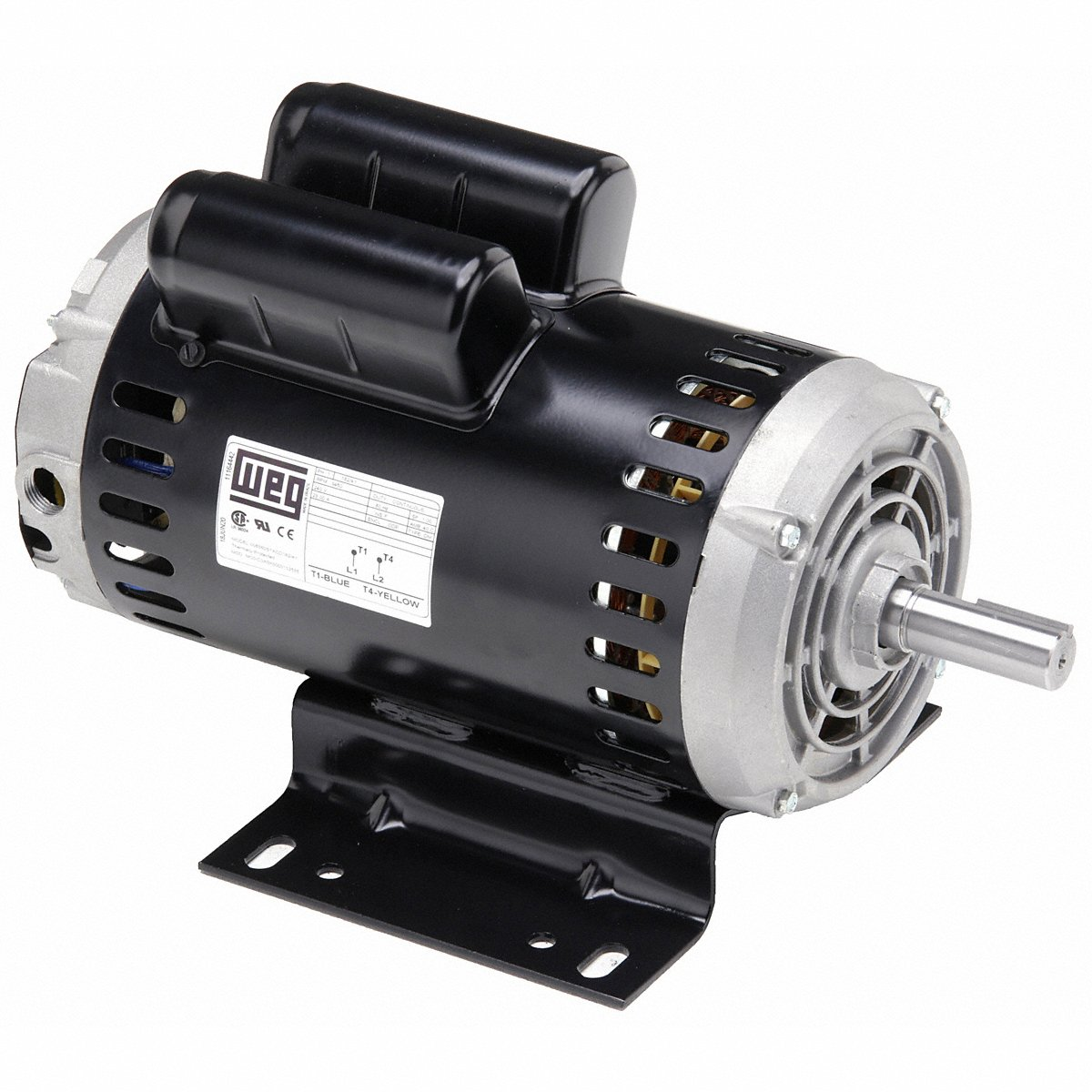

WEG 00636OS1XCD182/4Y 11164442 Air Compressor Motor, 6.5 Hp, 3510rpm 240v 182/4t
Get it by Tuesday, Apr 7
5.00% off
€780.82 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Air Compressor Motor |
| Altitude | 1000 M.A.S.L. |
| Ambient Temp. | -20°C to +40°C |
| Bearing Cap | No |
| Bearing Type | Ball |
| Bearings | Ball |
| Breakdown Torque | 200% |
| Capacitor Included | Yes |
| Capacitor Required | Yes |
| Drip Cover | Without |
| Duty | Continuous |
| Duty Cycle | S1 |
| Efficiency @ 100% | 82% |
| Efficiency @ 50% | 79% |
| Efficiency @ 75% | 83% |
| Enclosure | IC01 |
| Enclosure Type | ODP |
| Fan Material | Plastic |
| Feet | Yes |
| Flange | Without |
| Frame | 182/4 |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Full Load Amps | 23A |
| Grounding Lugs | Single |
| Hp | 6 3/8 hp |
| Impregnation Method | Dip and Bake Polyester |
| Includes | Capacitor |
| Ins. Class | Class F |
| Insulation Class | Class F |
| L.r. Amperes | 129A |
| Length Less Shaft | 13 7/16" |
| Locked Rotor Time | 8 sec. |
| Locked Rotor Time (cold) | 14 sec. |
| Locked Rotor Torque | 190% |
| Max. Ambient Temp. | 40°C |
| Moment Of Inertia (j) | 0.0759 lbs.-sq. ft. |
| Motor Application | Air Compressor |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start/Run |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Counter Clockwise Shaft End |
| Motor Thermal Protection | Manual |
| Motor Type | Capacitor Start/Run |
| Mounting | F-1 |
| Mounting Type | Rear/Foot |
| Nameplate Rpm | 3450 RPM |
| No Load Amps | 5.08A |
| No. Of Speeds | 1 |
| Nominal Efficiency | 83% |
| Number Of Poles | 2 |
| Number Of Speeds | 1 |
| Output Rating | 6.4 hp |
| Overall Length | 15 11/16" |
| Overload Protection | Manual |
| Phase | 1 |
| Power Factor 50% | 0.95 |
| Power Factor 75% | 0.97 |
| Power Factor_100% | 0.98 |
| Rated Current | 23A |
| Rated Speed | 3450 RPM |
| Rated Torque | 9.74 lbs.-ft. |
| Rated Voltage | 240V |
| Resilient Base | Without |
| Rotation | CCW |
| Rpm | 3600 RPM |
| Rpm Range | 3001-3600 RPM |
| Screw Cap | Carbon Steel |
| Service Factor | 1 |
| Shaft Dia. | 7/8" |
| Shaft Length | 2 1/4" |
| Shaft Material | Carbon Steel |
| Slip | 4.17% |
| Starting Method | Direct On Line |
| Synchronous Speed | 3600 RPM |
| Temp. Rise | 105 K |
| Terminal Box | Without Terminal Box |
| Thermal Protection | Manual |
| Voltage | 230V AC |
Shipping Info:
| Ship weight (kg) | 23.81 |
| Ship height (cm) | 38.1 |
| Ship length (cm) | 39.85 |
| Ship width (cm) | 35.81 |
| HS code | 8501524000 |
| Country of Origin | BR |
Product Variants
| Product | Model | Voltage | Hp | Nameplate Rpm | Rpm Range | Frame | Motor Shaft Rotation | Thermal Protection | Service Factor | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
00436OS1DCDG56HZ | 230V AC | 4 hp | 3480 RPM | 3001-3600 RPM | 56HZ | Counter Clockwise Shaft End | Manual | 1 | €708.04 | |
 |
00518OS1CCD184T | 208-230V AC | 5 hp | 1750 RPM | 1701-1800 RPM | 184T | Clockwise/Counter Clockwise | None | 1.25 | €1,067.36 | |
|
00518OS1CCDOL184T | 208-230V AC | 5 hp | 1750 RPM | 1701-1800 RPM | 184T | Clockwise/Counter Clockwise | Manual | 1.15 | €1,146.41 | |
 |
00718OS1CCD215T | 208-230V | 7 1/2 hp | 1760 RPM | 1701-1800 RPM | 213/5T | Counter Clockwise Shaft End | None | 1.15 | €1,498.66 | |
|
01018OS1CCD215T | 208-230V AC | 10 hp | 1720 RPM | 1701-1800 RPM | 215T | Counter Clockwise Shaft End | None | 1.15 | €2,281.05 |
