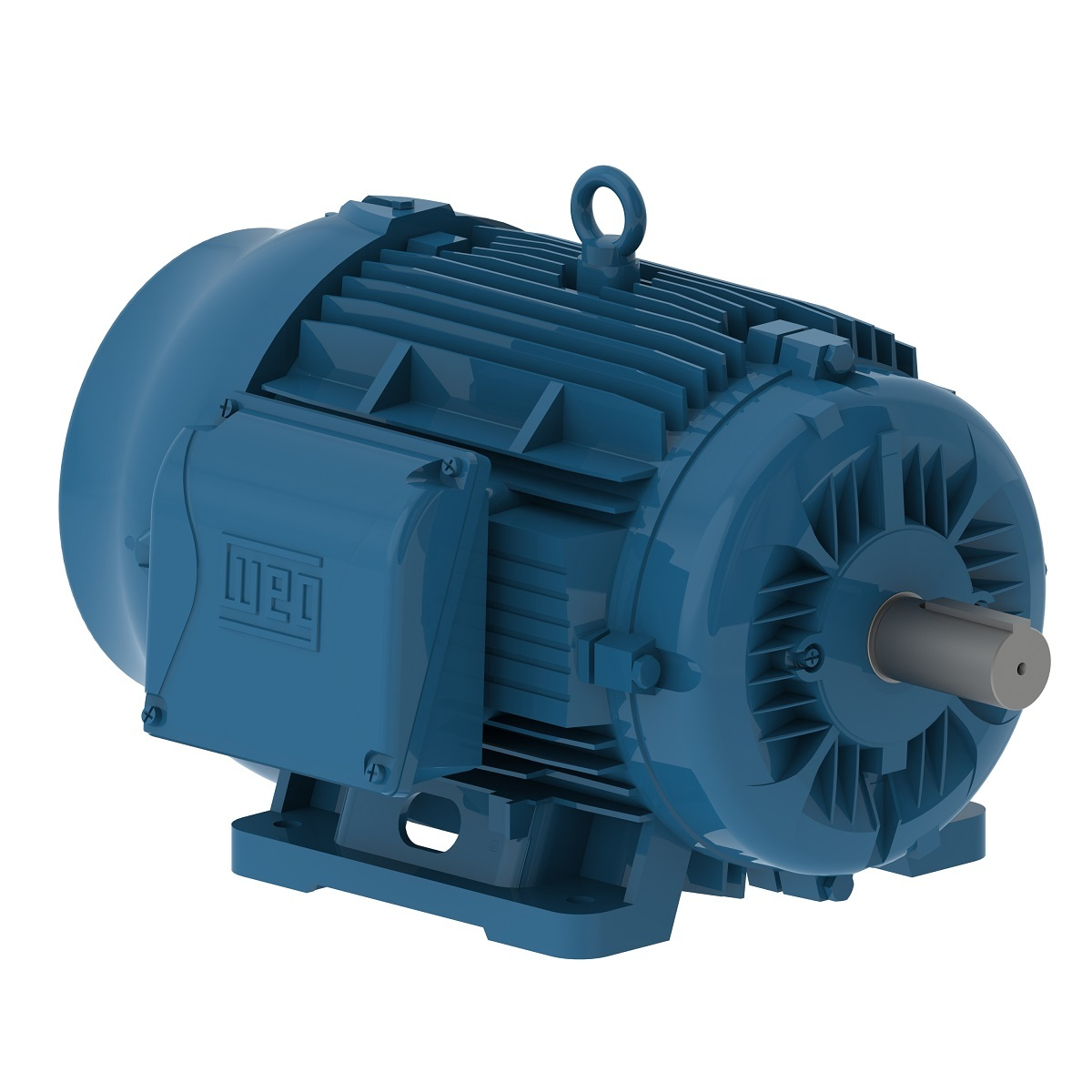

WEG 00509ST3HIE254T-W22 13556811 AC Motor, 900 rpm, 60 Hz, 575 V, 5 HP
Get it by Tuesday, Aug 25
€4,905.01 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | AC Motor |
| Altitude | 1000 m.a.s.l. |
| Ambient Temp. | -20°C to +40°C |
| Amps | 6.15A |
| Balancing Method | 1/2 Key |
| Bearing Cap | Yes |
| Bolt Material | Carbon Steel |
| Break Down Torque | 280% |
| Cold Locked Rotor Time | 77 sec. |
| Connection Cables Quantity | 3 |
| De Bearing Seal | Inpro, Seal |
| Degree Of Protection | IP56 |
| Design | B |
| Drain | Type T, Threaded |
| Drip Cover | Without |
| Duty Cycle | Cont.(S1) |
| Enclosure Rating | IC411 |
| Enclosure Type | Totally Enclosed Fan Cooled |
| Fan Cover Material | Cast Iron |
| Fan Material | Conductive Plastic |
| Flange | Without |
| Foot Flatness | 0.127 mm |
| Frame | 254/6t |
| Frame Material | Cast Iron |
| Frequency | 60 Hz |
| Grade | Grade 1010/20 |
| Grounding Lugs Type | Double |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | F |
| Joints Seal | Molykote |
| L. R. Amps | 32.6A |
| Locked Rotor Time(hot) | 43 sec. |
| Locked Rotor Torque | 250% |
| Lrc | 5.3x(Code H) |
| Main Terminal Box Hole | 1 1/2" |
| Main Terminal Box Hole Type | NPT |
| Material | Carbon Steel |
| Moment Of Inertia | 3.41 lbs.-sq. ft. |
| Mounting | Foot-Mounted, F-1 |
| Nde Bearing Seal | Inpro, Seal |
| No Load Amps | 4.32A |
| No. Of Poles | 8 |
| Noise Level | 54 dBA |
| Output Rating | 3.7 kW |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer |
| Rated Speed | 883 RPM |
| Rated Torque | 29.7 lbs.-ft. |
| Rated Voltage | 575V |
| Regreasing System | Stainless Steel, At Drive End And Non-Drive End |
| Rotation | CW And CCW |
| Service Factor | 1.25 |
| Shaft Locking Device | Without |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Slip | 1.89% |
| Starting Method | Direct On Line |
| Synchronous Speed | 900 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Tropicalized Painting | According To IEEE-841 (96H) |
| Voltage | 575V |
Shipping Info:
| Ship weight (kg) | 117 |
