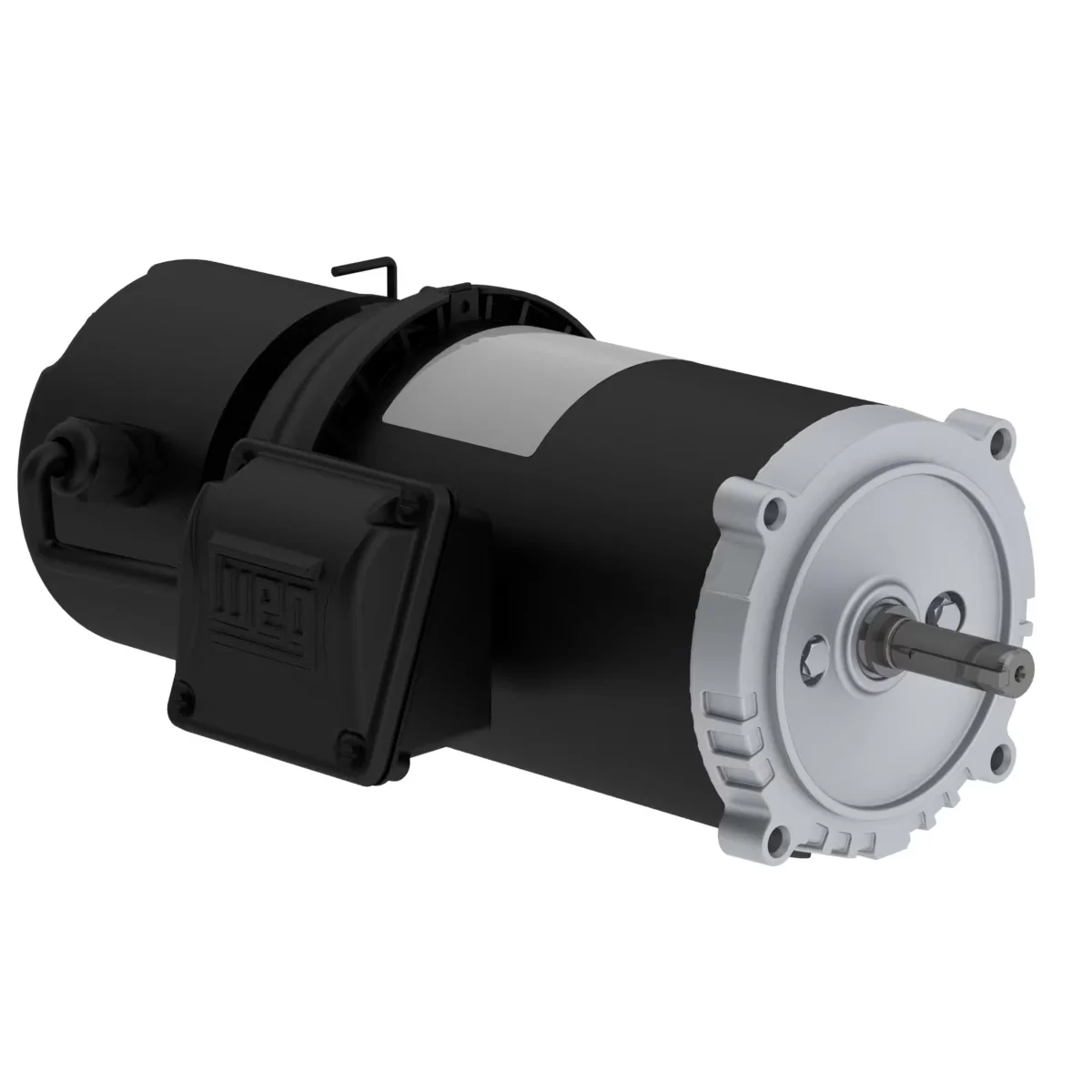

WEG 00318ET3EBMR182TC-S 14593691 Brake Motor, 3 HP, 1800 RPM, 182/4TC Frame, 415 V Rated
Get it by Friday, Aug 21
€2,546.35 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Brake Motor |
| Ambient Temp. | -20°C to +40°C |
| Balancing Method | 1/2 Key |
| Bolt Material | Carbon Steel |
| Cold Locked Rotor Time | 37 sec. |
| De Bearing Seal | V Ring |
| Degree Of Protection | IP55 |
| Design | B |
| Duty Cycle | S1 |
| Enclosure Rating | IC411 |
| Enclosure Type | Tefc |
| Frame Material | Rolled Steel |
| Frequency | 50/60 Hz , 60 Hz |
| Grade | Grade 1010/20 |
| Grounding Lugs Type | Single |
| Insulation Class | Class F |
| L. R. Amps | 34.6A |
| Locked Rotor Time(hot) | 21 sec. |
| Lrc | 8x(Code K) |
| Main Terminal Box Hole Type | NPT |
| Material | Carbon Steel |
| Nde Bearing Seal | No |
| No. Of Poles | 4 |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer |
| Phase | 3 |
| Rotation | CW, CCW |
| Service Factor | 1.15 |
| Shaft Material | Carbon Steel |
| Speed | 1700-1800 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Tropicalized Painting | Without |
| Voltage | 415V |
Shipping Info:
| Ship weight (kg) | 43.52 |
| Country of Origin | BR |
