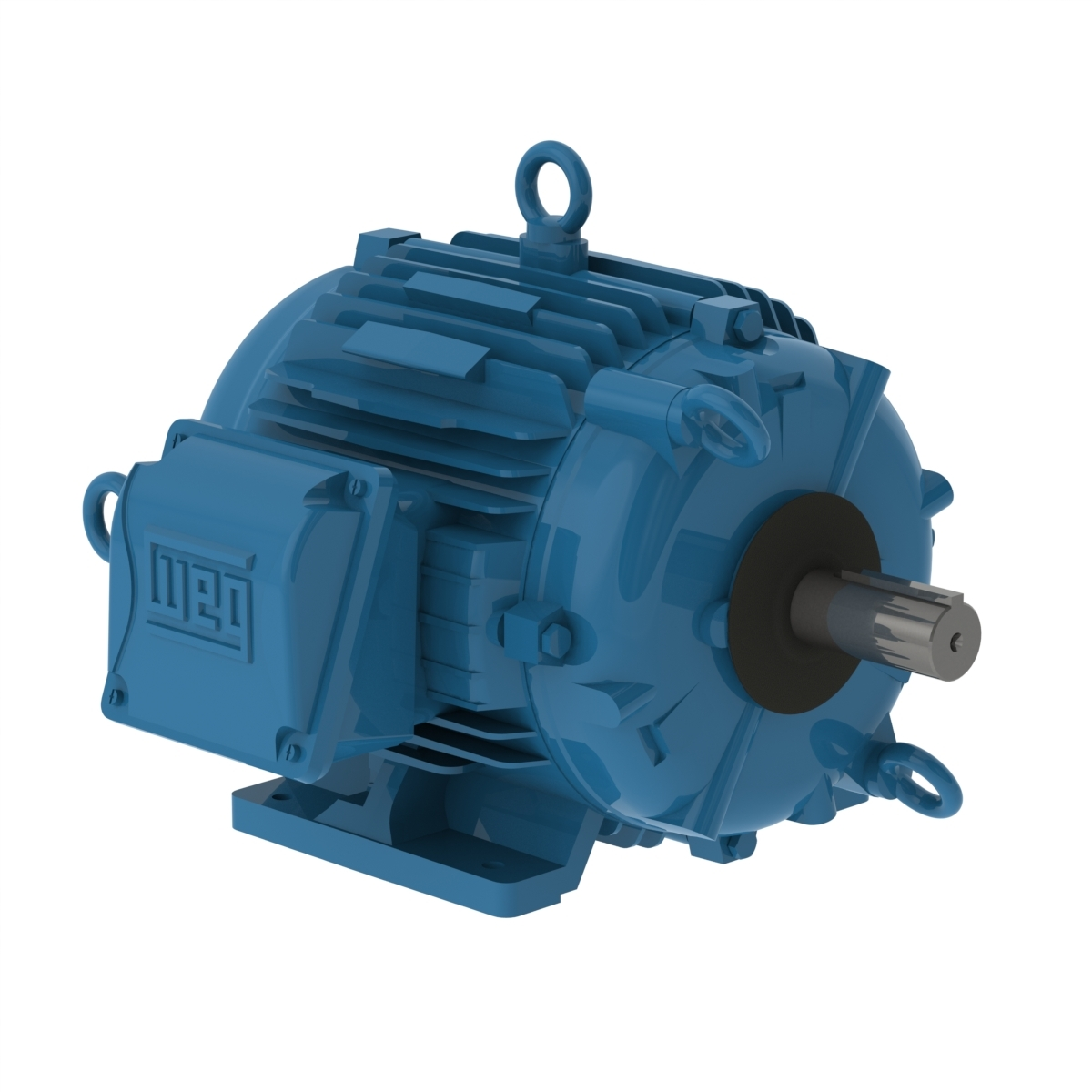

WEG 00318AT3HCT182TF1-W2 14413408 Cooling Tower Motor, 3 HP, 4 Poles, 182T Frame, 3 Phase, 575 V, 60 Hz, IC418-TEAO, F-1 Foot Mounted
Get it by Tuesday, Aug 25
€959.22 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | AC Motor |
| Altitude | 1000 m.a.s.l. |
| Ambient Temp. | -20°C to +40°C |
| Amps | 3.13A |
| Balancing Method | 1/2 Key |
| Bearing Cap | No |
| Break Down Torque | 330% |
| Cold Locked Rotor Time | 41 sec. |
| Connection Cables Quantity | 6 |
| De Bearing Seal | V Ring |
| Degree Of Protection | IP55 |
| Design | B |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | Cont.(S1) |
| Enclosure Rating | IC418 |
| Enclosure Type | Teao |
| Fan Cover Material | Without Fan Cover |
| Fan Material | Without Fan |
| Flange | Without |
| Frame | 182T |
| Frame Material | Cast Iron |
| Frequency | 60 Hz |
| Grade | Grade 1010/20 |
| Grounding Lugs Type | Single |
| Impregnation Method | Double Impregnation Polyester |
| Insulation Class | F |
| Joints Seal | Permatex |
| L. R. Amps | 25.3A |
| Locked Rotor Time(hot) | 23 sec. |
| Locked Rotor Torque | 220% |
| Lrc | 8.1x(Code K) |
| Main Terminal Box Hole Size | 1" |
| Main Terminal Box Hole Type | NPT |
| Material | Carbon Steel |
| Moment Of Inertia | 0.3401 lbs.-sq. ft. |
| Mounting | Foot-Mounted, F-1 |
| Nde Bearing Seal | V Ring |
| No Load Amps | 1.6A |
| No. Of Poles | 4 |
| Noise Level | 56 dBA |
| Output Rating | 2.2 kW |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer |
| Rated Speed | 1760 RPM |
| Rated Torque | 8.95 lbs.-ft. |
| Rated Voltage | 575V |
| Rotation | CW And CCW |
| Service Factor | 1.25 |
| Shaft Locking Device | Without |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Slip | 2.22% |
| Space Heater Voltage | 110-127/200-240V |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Tropicalized Painting | Complete (200H) |
| Voltage | 575V |
Shipping Info:
| Ship weight (kg) | 40.46 |
