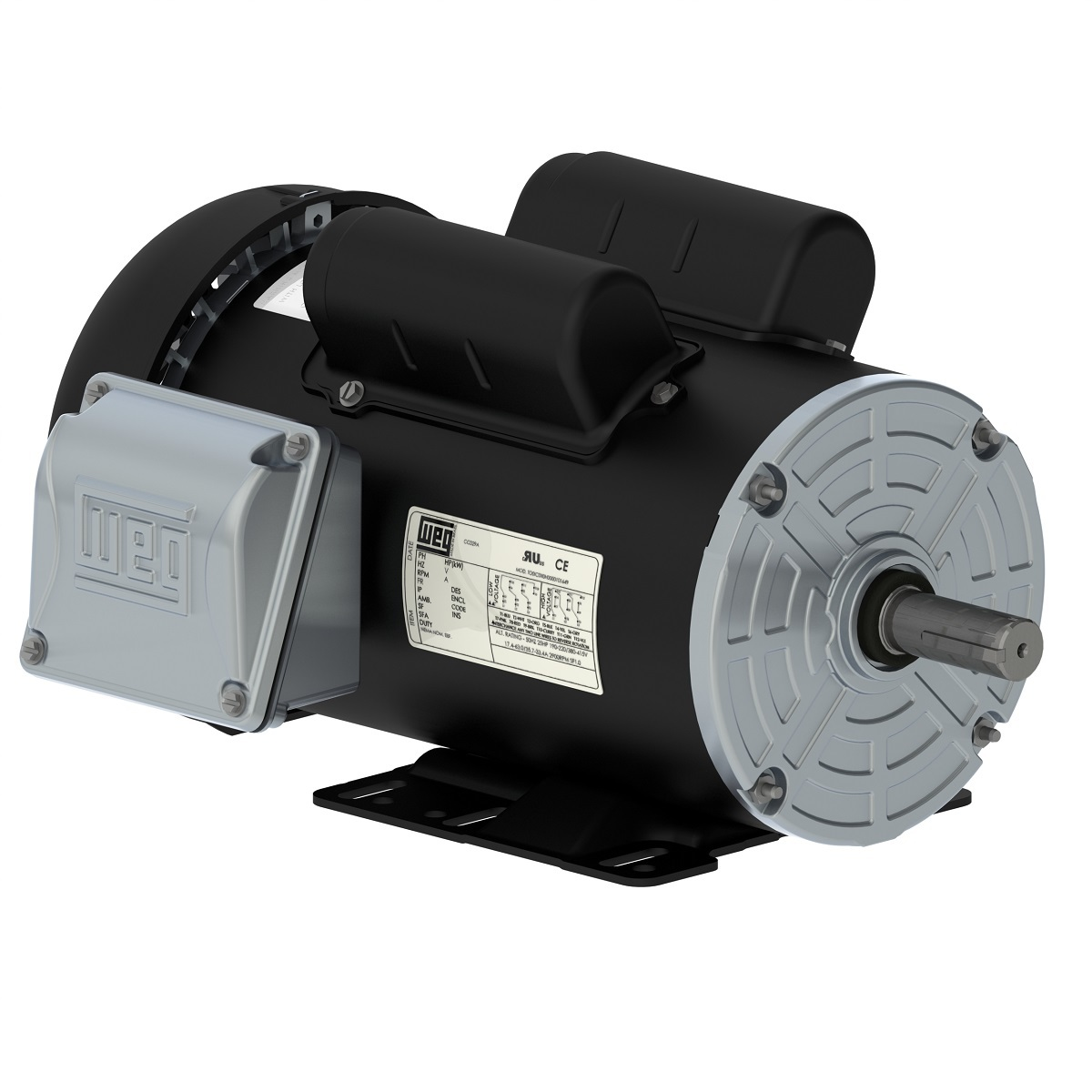

WEG 00236ES1B145T-S 14277780 General Purpose Motor, TEAO/TEFC RolLED Steel 143/5T Frame, 2 HP, 3495 RPM, 115/208-230 V
Get it by Monday, Aug 24
€764.77 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Altitude | 1000 M.A.S.L. , 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Amps | 17.5/9.62-8.73A , 8.73-9.62/17.5A |
| Balancing Method | 1/2 Key , 1/2" Key |
| Bearing Cap | No |
| Bolt Material | Carbon Steel |
| Break Down Torque | 250% |
| Cold Locked Rotor Time | 10 sec. |
| Composition | Steel |
| De Bearing Seal | V Ring |
| Degree Of Protection | IP55 |
| Design | L |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency 50% | 70% , 94% |
| Efficiency 75% | 75% |
| Efficiency @ 1 % | 97% |
| Efficiency @ 100% | 77% |
| Efficiency @ 75 % | 97% |
| Enclosure | IC411 |
| Enclosure Rating | IC411 |
| Enclosure Type | Tefc |
| Fan Cover Material | Industrial Polymer , Polymer |
| Fan Material | Plastic |
| Flange | Without |
| Flange Type | Without |
| Frame | 143/5T |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Grade | Grade 1010/20 |
| Grounding Lugs | Single |
| Grounding Lugs Type | Single |
| Hot Locked Rotor Time | 6 sec. |
| Hp | 2 hp |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | Class F |
| L. R. Amps | 136/75-68.1A , 68.1-75/136A |
| Locked Rotor Time | 6 sec. |
| Locked Rotor Time (cold) | 10 sec. |
| Locked Rotor Time(hot) | 6 sec. |
| Locked Rotor Torque | 220% |
| Lrc | 7.8X(Code J) |
| Main Terminal Box Hole | 1.118" |
| Main Terminal Box Hole Size | 1.118" |
| Material | Carbon Steel |
| Moment Of Inertia | 0.0707 lbs.-sq. ft. |
| Moment Of Inertia (j) | 0.0707 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Speed | 3495 RPM |
| Mounting | F-1 , Foot Mounted |
| Nde Bearing Seal | No |
| No Load Amps | 2.16-2.5/5A , 5/2.16-2.5A |
| No. Of Poles | 2 |
| Noise Level | 68 dBA |
| Output | 2 hp |
| Output Rating | 2 hp |
| Overload Protection | No |
| Overload Protector | Without Overload Protector |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Munsell N 1-Matte 207N (ISO 12944-C2) , Only Primer |
| Phase | 1 |
| Power Factor 100% | 0.97 |
| Power Factor 50% | 0.94 |
| Power Factor 75% | 0.97 |
| Power Factor @ 1 % | 77 |
| Power Factor @ 50 % | 70 |
| Power Factor @ 75 % | 75 |
| Resilient Base | Without |
| Rotation | CW, CCW |
| Screw Cap | Carbon Steel |
| Service Factor | 1.15 |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Slip | 2.92% |
| Speed | 3400-3600 RPM , 3495 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 3600 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Torque | 3.01 lbs.-ft. |
| Tropicalized Painting | Without |
| Voltage | 115/208-230V , 115/208-230V AC |
Shipping Info:
| Ship weight (kg) | 19.35 |
| Ship height (cm) | 24.38 |
| Ship length (cm) | 39.88 |
| Ship width (cm) | 30.99 |
| Country of Origin | US |
Product Variants
| Product | Model | Voltage | Service Factor | Hp | Frame | Insulation Class | Duty Cycle | No. Of Poles | Synchronous Speed | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
.5018ES1RFDW56-S | 115/230V | 1.15 | 1/2 hp | W56 | Class F | S1 | 4 | 1800 RPM | €367.46 | |
 |
00136ES1B143T-S | 115/208-230V AC | 1.15 | - | 143/5T | Class F | S1 | 2 | 3600 RPM | €659.77 | |
 |
00118ES1E143T-S | 208-230/460V AC | 1.15 | 1 hp | 143/5T | Class F | S1 | 4 | 1800 RPM | €633.53 | |
 |
00118ES1ER143TC-S | 208-230/460V AC | 1.15 | 1 hp | 143/5TC | Class F | S1 | 4 | 1800 RPM | €666.92 | |
 |
00118ES1RFD143T-S | 115/230V | 1.15 | 1 hp | 143/5T | Class F | S1 | 4 | 1800 RPM | €477.24 | |
|
00156ES1B143T-S | 115/208-230V AC | 1.15 | - | 143/5T | Class F | S1 | 2 | 3600 RPM | €718.25 | |
|
00158ES1B145T-S | 115/208-230V AC | 1.15 | 1 1/2 hp | 143/5T | Class F | S1 | 4 | 1800 RPM | €730.16 |
