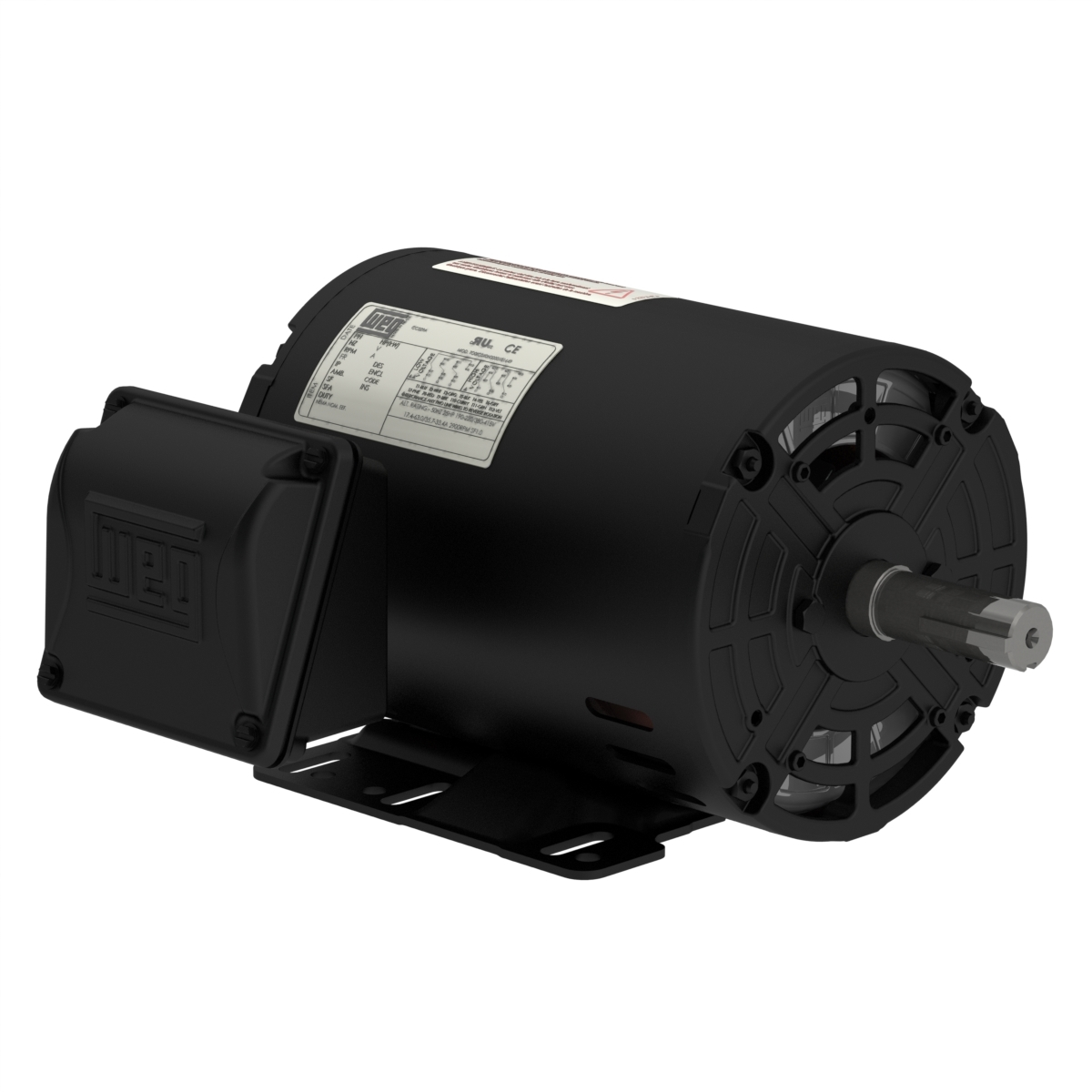

WEG 00218OT3E145T-SG 12674955 Electric Motor, 2Hp, 60Hz, 1800 Rpm
Get it by Thursday, Dec 18
10.00% off
€916.21 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Altitude | 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Balancing Method | 1/2" Key |
| Bearing Cap | Yes |
| Bolt Material | Carbon Steel |
| Break-down Torque | 320% |
| Cold Locked Rotor Time | 30 sec. |
| Connection Cables Quantity | 9 |
| Design | B |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency At 1 % | 81% |
| Efficiency At 50 % | 61% |
| Efficiency At 75 % | 74% |
| Enclosure Type | ODP |
| Fan Cover Material | Without Fan Cover |
| Fan Material | Without Fan |
| Flange Type | Without |
| Frame | 143/5T |
| Frame Material | Rolled Steel |
| Frequency | 50/60 Hz |
| Grounding Lugs | Single |
| Hot Locked Rotor Time | 17 sec. |
| Hz | 60 Hz |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | Class F |
| L. R. Amps | 41.4/20.7A |
| Locked Rotor Torque | 260% |
| Lrc | 7.7X(Code K) |
| Main Terminal Box Hole Size | 1.118" |
| Moment Of Inertia | 0.1168 lbs.-sq. ft. |
| Motor Enclosure Design | Open Dripproof |
| Motor Speed | 1740 RPM |
| Mounting | Foot Mounted |
| No Load Amps | 2.75/1.38A |
| No. Of Poles | 4 |
| Noise Level | 52 dBA |
| Output | 2 hp |
| Output Rating | 2 hp |
| Overload Protector | Without Overload Protector |
| Painting | Munsell N 1-Matte 207N (ISO 12944-C2) |
| Phase | 3 |
| Power Factor At 1 % | 86.5 |
| Power Factor At 50 % | 85.5 |
| Power Factor At 75 % | 86.5 |
| Rated Current | 5.38/2.69A |
| Rated Torque | 6.04 lbs.-ft. |
| Rated Voltage | 230/460V AC |
| Resilient Base | Without |
| Rotation | CW/CCW |
| Rpm | 1700-1800 RPM |
| Service Factor | 1.15 |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Slip | 3.33% |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Tropicalized Painting | Without |
| Voltage | 230/460/190-220/380-415V AC |
Shipping Info:
| Ship weight (kg) | 19.35 |
| Ship height (cm) | 23 |
| Ship length (cm) | 45.2 |
| Ship width (cm) | 30 |
| Country of Origin | US |
Product Variants
| Model | Voltage | Frequency | Hp | Frame | Synchronous Speed | Mounting | Output Rating | Rpm | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 02018OT3E256T-SG | 230/460/190-220/380-415V AC | 60 Hz | - | 254/6T | 1800 RPM | Foot Mounted | 20 hp | 1700-1800 RPM | €3,401.96 | |
| 00718OT3E213T-SG | 230/460/190-220/380-415V AC | 60 Hz | 7 1/2 hp | 213/5T | 1800 RPM | Foot Mounted | 7 1/2 hp | 1700-1800 RPM | €2,028.52 | |
| 01518OT3E254T-SG | 230/460/190-220/380-415V AC | 50/60 Hz | - | 254/6T | 1800 RPM | Foot Mounted | 15 hp | 1700-1800 RPM | €2,830.11 | |
| 00336OT3E145T-SG | 230/460/190-220/380-415V AC | 60 Hz | - | 143/5T | 3600 RPM | Foot Mounted | 3 hp | 3400-3600 RPM | €817.25 | |
| 00518OT3E184T-SG | 230/460/190-220/380-415V AC | 50/60 Hz | 5 hp | 182/4T | 1800 RPM | Foot Mounted | 5 hp | 1700-1800 RPM | €1,288.60 | |
| 01018OT3E215T-SG | 230/460/190-220/380-415V AC | 60 Hz | 10 hp | 213/5T | 1800 RPM | Foot Mounted | 10 hp | 1700-1800 RPM | €2,097.23 | |
| 00518OT3V184T-SG | 200/400V AC | 60 Hz | 5 hp | 182/4T | 1800 RPM | Foot Mounted | 5 hp | 1700-1800 RPM | €954.46 |
