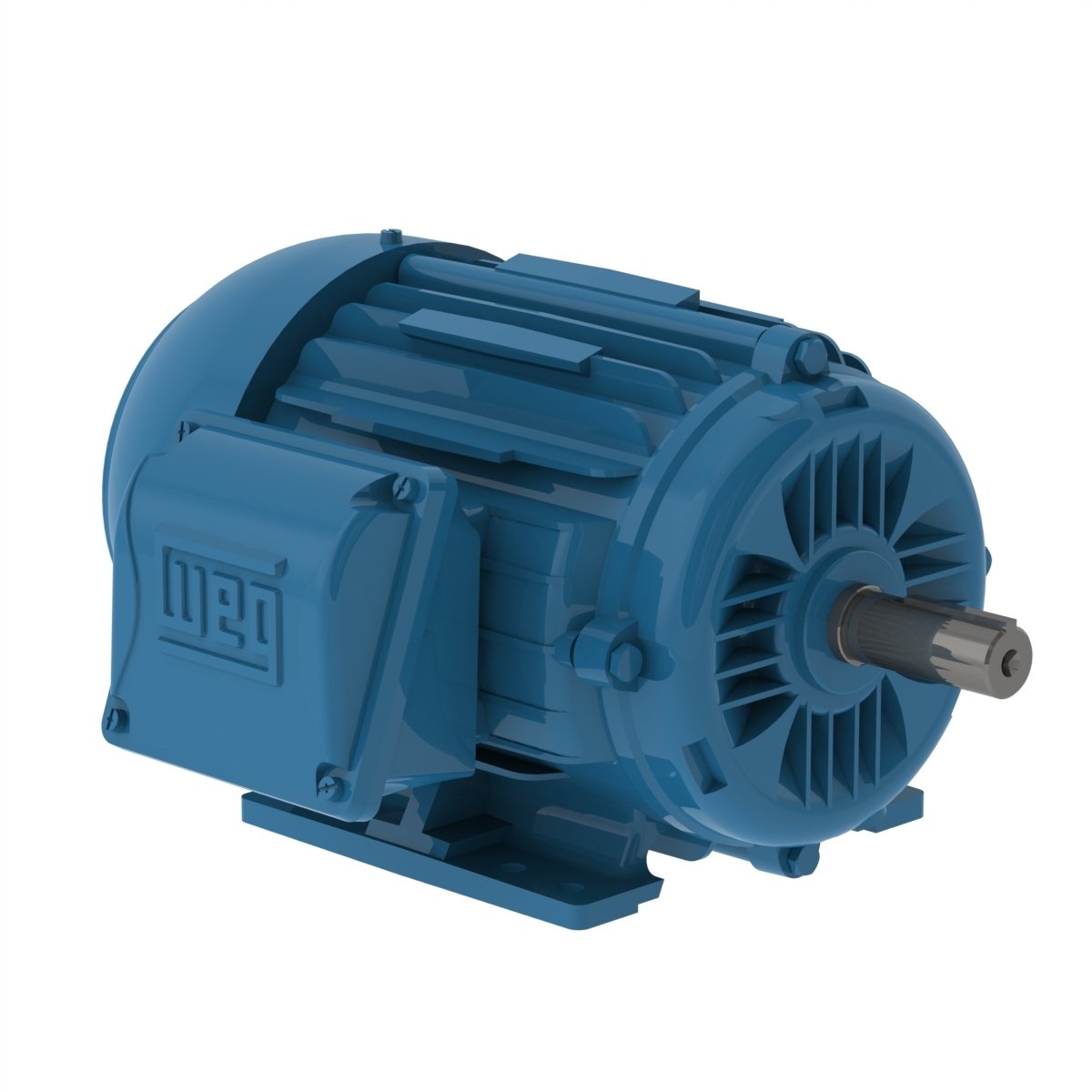

WEG 00218ET3E145T-W22G Electric Motor, 2Hp, 60Hz, 1800 Rpm | BB9ZDA

WEG 00218ET3E145T-W22G 16575814 Electric Motor, 2Hp, 60Hz, 1800 Rpm

Item: BB9ZDAModel: 00218ET3E145T-W22GCross Ref: 16575814
Check Availability
In Stock

Get it by Thursday, Dec 18

€897.20 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item General Purpose Motor
Altitude 1000 MASL
Ambient Temp. -20°C to +40°C
Balancing Method 1/2" Key
Bearing Cap Yes
Break-down Torque 320%
Cold Locked Rotor Time 18 sec.
Connection Cables Quantity 9
Design B
Drain Rubber, Automatic
Drip Cover Without
Duty Cycle S1
Efficiency At 1 % 78%
Efficiency At 50 % 57%
Efficiency At 75 % 70%
Enclosure Type Tefc
Fan Cover Material Steel
Fan Material Plastic
Flange Type Without
Frame 143/5T
Frame Material Cast Iron
Frequency 50/60 Hz
Grounding Lugs Single
Hot Locked Rotor Time 10 sec.
Hz 60 Hz
Impregnation Method Dip And Bake Polyester
Insulation Class Class F
L. R. Amps 46.3/23.2A
Locked Rotor Torque 270%
Lrc 8.3X(Code L)
Main Terminal Box Hole Size 3/4"
Main Terminal Box Hole Type NPT
Moment Of Inertia 0.1561 lbs.-sq. ft.
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Speed 1750 RPM
Mounting Foot Mounted
No Load Amps 3.26/1.63A
No. Of Poles 4
Noise Level 51 dBA
Output 2 hp
Output Rating 2 hp
Overload Protector Without Overload Protector
Painting RAL5009 207A (ISO 12944-C2)
Phase 3
Power Factor At 1 % 86.5
Power Factor At 50 % 85.5
Power Factor At 75 % 86.5
Rated Current 5.58/2.79A
Rated Torque 6 lbs.-ft.
Rated Voltage 230/460V AC
Rotation CW/CCW
Rpm 1700-1800 RPM
Service Factor 1.25
Shaft Locking Device Without
Shaft Material Carbon Steel
Shaft Material Grade Grade 1040/45
Slip 2.78%
Starting Method Direct On Line
Synchronous Speed 1800 RPM
Temp. Rise 80 K
Terminal Block Without
Terminal Box Left Position
Tropicalized Painting Without
Voltage 230/460/380V AC

Shipping Info:

Ship weight (kg) 25.2
Ship height (cm)23.83
Ship length (cm)32.39
Ship width (cm)24.13
Country of OriginUS

Product Variants

ProductModelFrequencyMotor Enclosure DesignVoltageService FactorHpSynchronous SpeedTerminal BoxRpmPrice
WEG 02536ET3E284TSF3-W22 Electric Motor, 25Hp, 60Hz, 3600 Rpm | BB6DPB 02536ET3E284TSF3-W2250/60 HzTotally Enclosed Fan Cooled230/460/380V AC1.25-3600 RPMTop3600 RPM€3,569.80
WEG 00518ET3E184TF2-W22 Electric Motor, 5Hp, 60Hz, 1800 Rpm | BB6HER 00518ET3E184TF2-W2260 HzTotally Enclosed Fan Cooled230/460/380V AC1.25-1800 RPMRight Position1800 RPM€921.07
WEG 01518ET3E254TF3-W22 Electric Motor, 15Hp, 60Hz, 1800 Rpm | BB6HEZ 01518ET3E254TF3-W2260 HzTotally Enclosed Fan Cooled230/460/380V AC1.25-1800 RPMTop1800 RPM€2,199.91
WEG 06018ET3H364TF3-W22 Electric Motor, 60Hp, 60Hz, 1800 Rpm | BB6WQV 06018ET3H364TF3-W2260 HzTotally Enclosed Fan Cooled575V AC1.25-1800 RPMTop1800 RPM€8,853.50
WEG 15036ET3Q445TS-W22 Electric Motor, 150Hp, 60Hz, 3600 Rpm | BB6YGQ 15036ET3Q445TS-W2260 HzTotally Enclosed Fan Cooled460V AC1.15-3600 RPMLeft Position3600 RPM€21,630.68
WEG 05018ET3E326TF2-W22 Electric Motor, 50Hp, 60Hz, 1800 Rpm | BB7AKP 05018ET3E326TF2-W2250/60 HzTotally Enclosed Fan Cooled230/460/380V AC1.25-1800 RPMRight Position1700-1800 RPM€5,932.58
WEG 03036ET3E286TSF2-W22 Electric Motor, 30Hp, 60Hz, 3600 Rpm | BB7DJH 03036ET3E286TSF2-W2250/60 HzTotally Enclosed Fan Cooled230/460/380V AC1.25-3600 RPMRight Position3400-3600 RPM€4,116.61
