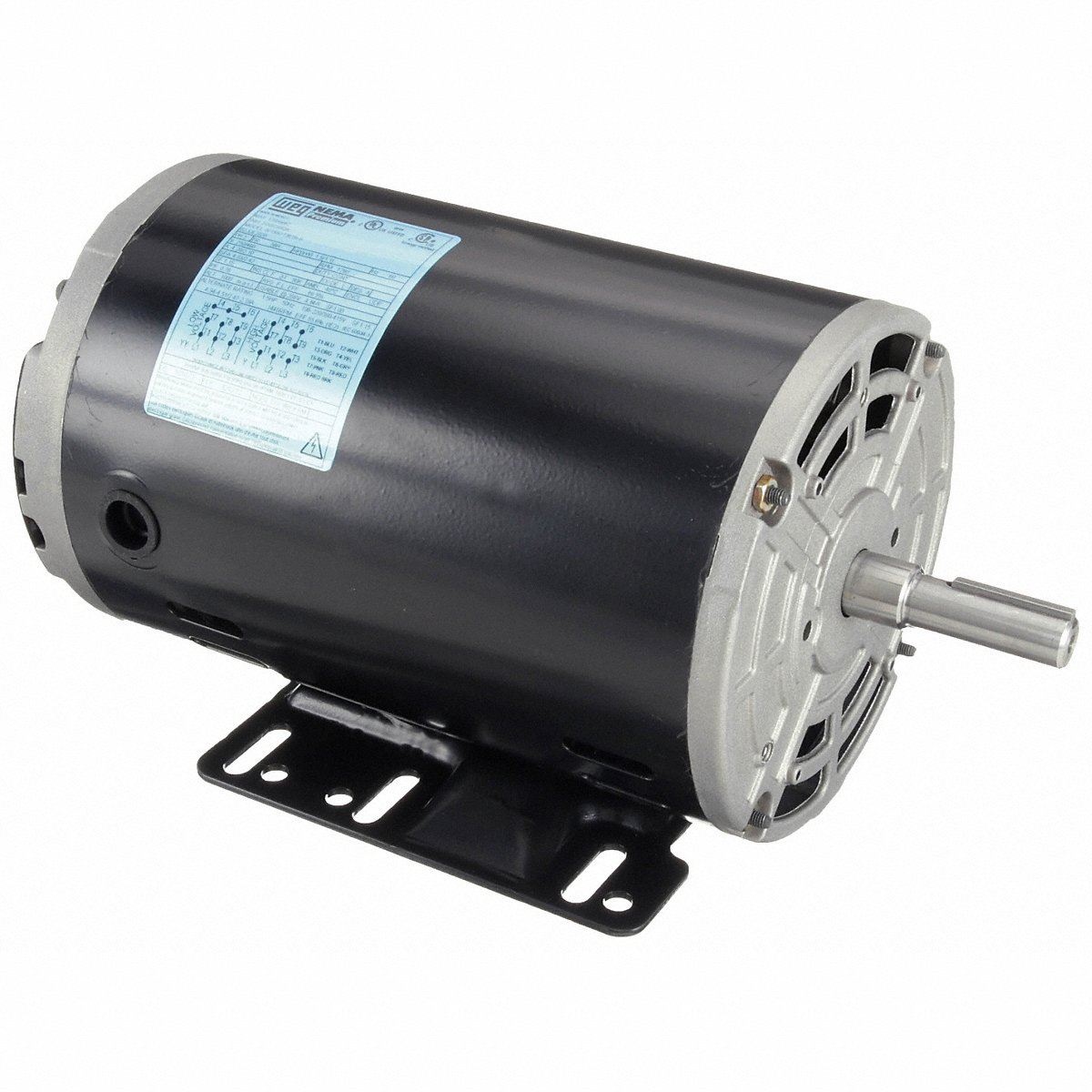

WEG 00158OT3E56-S 12809667 ODP AC General Purpose Motor
Get it by Thursday, Dec 18
10.00% off
€514.50 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Altitude | 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Balancing Method | 1/2" Key |
| Bearing Cap | No |
| Bolt Material | Carbon Steel |
| Break-down Torque | 350% |
| Cc Number | CC029A |
| Cold Locked Rotor Time | 25 sec. |
| Connection Cables Quantity | 9 |
| Design | A |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency At 1 % | 76% |
| Efficiency At 50 % | 53% |
| Efficiency At 75 % | 66% |
| Enclosure Type | ODP |
| Fan Cover Material | Without Fan Cover |
| Fan Material | Without Fan |
| Flange Type | Without |
| Frame | 56H |
| Frame Material | Rolled Steel |
| Frame Size | 56H |
| Frequency | 60 Hz |
| Full Load Amps | 4.20/2.1A |
| Full Load Amps @ 50hz | 4.56/2.42/4.94/2.47A |
| Grounding Lugs | Single |
| Hot Locked Rotor Time | 14 sec. |
| Hp | 1 1/2 hp |
| Hp @ 50hz | 1 1/2 hp |
| Hz | 60 Hz |
| Impregnation Method | Dip And Bake Polyester |
| Includes | Conduit Box |
| Ins. Class | Class F |
| Insulation Class | Class F |
| Inverter Rated | Yes |
| L. R. Amps | 37/18.5A |
| Length Less Shaft | 10 13/16" |
| Locked Rotor Torque | 290% |
| Lrc | 8.8X(Code L) |
| Manufacturers Warranty Length | 3 yrs. |
| Max. Ambient Temp. | 40°C |
| Moment Of Inertia | 0.1296 lbs.-sq. ft. |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Speed | 1760 RPM |
| Mounting | Foot Mounted |
| Nameplate Rpm | 1760 RPM |
| Nema Design | NEMA A |
| No Load Amps | 2.6/1.3A |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Noise Level | 52 dBA |
| Nominal Efficiency | 86.5% |
| Output | 1 1/2 hp |
| Output Rating | 1 1/2 hp |
| Overall Length | 12 11/16" |
| Overload Protector | Without Overload Protector |
| Painting | Only Primer |
| Phase | Three |
| Power Factor At 1 % | 86.5 |
| Power Factor At 50 % | 84 |
| Power Factor At 75 % | 85.5 |
| Rated Current | 4.2/2.1A |
| Rated Torque | 4.48 lbs.-ft. |
| Rated Voltage | 230/460V AC |
| Resilient Base | Without |
| Rotation | CW/CCW |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 7/8" |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Slip | 2.22% |
| Standards | Csa, Ul |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 80 K |
| Terminal Box | Without Terminal Box |
| Tropicalized Painting | Without |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 230/460V AC |
| Weight | 37.6 lbs. |
Shipping Info:
| Ship weight (kg) | 19.04 |
| Ship height (cm) | 77.98 |
| Ship length (cm) | 32.23 |
| Ship width (cm) | 85.09 |
| Country of Origin | US |
Product Variants
| Model | Phase | Frequency | Service Factor | Hp | Full Load Amps | Nameplate Rpm | Frame | Duty Cycle | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 01518OT3E254T-S | 3 | 60 Hz | 1.15 | 15 hp | 37.2/18.6A | 1775 RPM | 254/6T | S1 | €2,131.82 | |
| 01518OT3H254T-S | 3 | 60 Hz | 1.15 | 15 hp | 14.9A | 1775 RPM | 254/6T | S1 | €2,120.09 | |
| 02036OT3E254T-S | 3 | 60 Hz | 1.15 | 20 hp | 23.8A | 3525 RPM | 254/6T | S1 | €1,984.36 | |
| 02036OT3H254T-S | 3 | 60 Hz | 1.15 | 20 hp | 19A | 3525 RPM | 254/6T | S1 | €2,033.18 | |
| 02018OT3E256T-S | 3 | 50/60 Hz | 1.15 | 20 hp | 50/25A | 1770 RPM | 254/6T | Continuous | €2,426.55 | |
| 02018OT3H256T-S | 3 | 60 Hz | 1.15 | 20 hp | 20A | 1770 RPM | 254/6T | Continuous | €2,094.60 | |
| 02536OT3E256T-S | 3 | 60 Hz | 1.15 | 25 hp | 58.2/29.1A | 3530 RPM | 254/6T | S1 | €2,412.93 |
