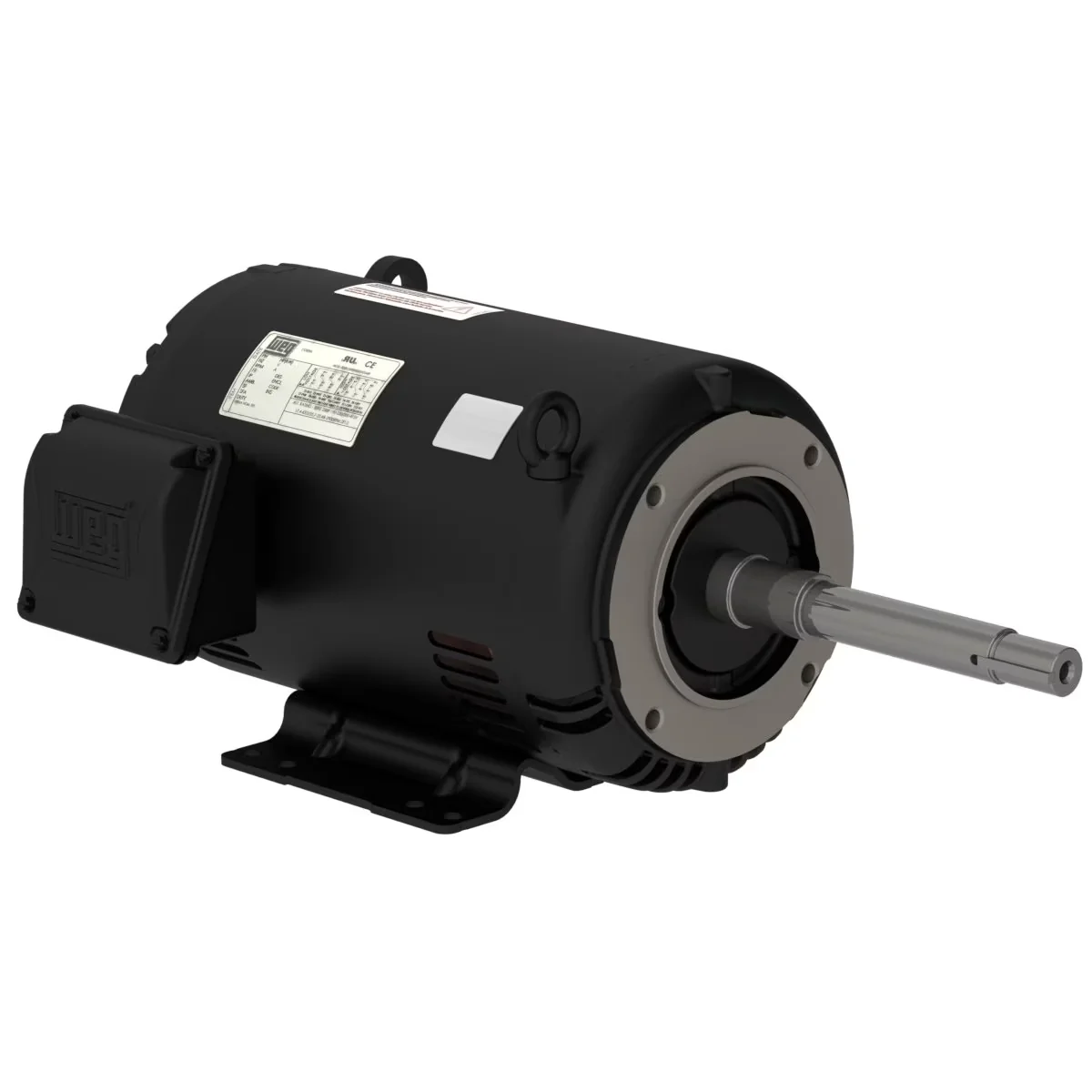

WEG 00158OT3E145JP-SG 14327800 Electric Motor, 1.5Hp, 60Hz, 1800 Rpm
Get it by Friday, Dec 19
€826.79 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Electric Motor |
| Altitude | 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Balancing Method | 1/2" Key |
| Bearing Cap | Yes |
| Bolt Material | Carbon Steel |
| Break-down Torque | 330% |
| Cold Locked Rotor Time | 27 sec. |
| Connection Cables Quantity | 9 |
| Design | B |
| Drip Cover | Without |
| Duty Cycle | Continuous |
| Efficiency At 1 % | 77% |
| Efficiency At 50 % | 56% |
| Efficiency At 75 % | 69% |
| Enclosure Type | ODP |
| Fan Cover Material | Without Fan Cover |
| Fan Material | Without Fan |
| Flange Type | C |
| Frame | 143/5JP |
| Frame Material | Rolled Steel |
| Frame Size | 145JP |
| Frequency | 50/60 Hz |
| Grounding Lugs | Single |
| Hot Locked Rotor Time | 15 sec. |
| Hp | 1 1/2 hp |
| Hz | 60 Hz |
| Impregnation Method | Dip And Bake Polyester |
| L. R. Amps | 36/18A |
| Locked Rotor Torque | 280% |
| Lrc | 8.7X(Code L) |
| Main Terminal Box Hole Size | 1.118" |
| Moment Of Inertia | 0.1426 lbs.-sq. ft. |
| Motor Enclosure Design | Open Dripproof |
| Motor Speed | 1760 RPM |
| Mounting | Foot Mounted |
| No Load Amps | 2.4/1.2A |
| No. Of Poles | 4 |
| Noise Level | 52 dBA |
| Output | 1 1/2 hp |
| Output Rating | 1 1/2 hp |
| Overload Protector | Without Overload Protector |
| Painting | Munsell N 1-Matte 207N (ISO 12944-C2) |
| Phase | 3 |
| Power Factor At 1 % | 86.5 |
| Power Factor At 50 % | 84 |
| Power Factor At 75 % | 86.5 |
| Rated Current | 4.14/2.07A |
| Rated Torque | 4.48 lbs.-ft. |
| Rated Voltage | 230/460V AC |
| Resilient Base | Without |
| Rotation | Clockwise/Counter Clockwise |
| Rpm | 1700-1800 RPM |
| Service Factor | 1.15 |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Slip | 2.22% |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Tropicalized Painting | Without |
| Voltage | 230/460V |
Shipping Info:
| Ship weight (kg) | 20.37 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | MX |
Product Variants
| Product | Model | Voltage | Frequency | Hp | Duty Cycle | No. Of Poles | Synchronous Speed | No Load Amps | Mounting | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
01018OT3E215JP-SG | 230/460/190-220/380-415V AC | 50/60 Hz | - | S1 | 4 | 1800 RPM | 12/5.99A | Foot Mounted | €1,821.66 | |
 |
00318OT3E182JP-SG | 230/460/190-220/380-415V AC | 60 Hz | - | S1 | 4 | 1800 RPM | 4.14/2.07A | Foot Mounted | €996.23 | |
|
00718OT3E213JP-SG | 230/460/190-220/380-415V AC | 60 Hz | - | S1 | 4 | 1800 RPM | 8.79/4.39A | Foot Mounted | €1,574.86 | |
 |

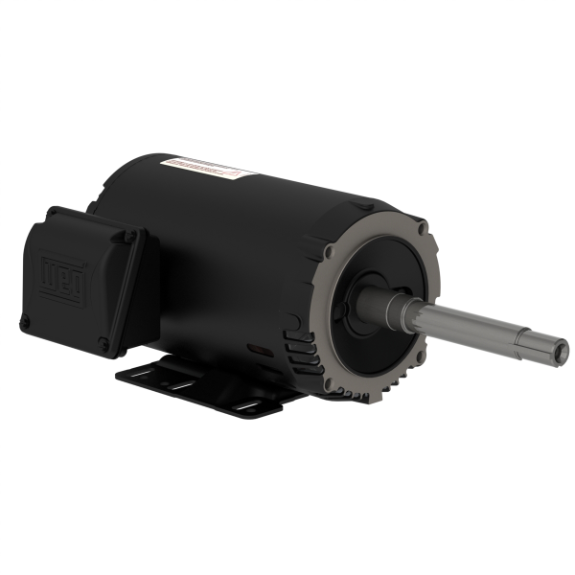

00236OT3E145JP-SG | 230/460/190-220/380-415V AC | 50/60 Hz | - | S1 | 2 | 3600 RPM | 1.83/0.917A | Foot Mounted | €859.01 | |
 |
01536OT3E215JP-SG | 230/460/190-220/380-415V AC | 50/60 Hz | - | S1 | 2 | 3600 RPM | 12.3/6.17A | Foot Mounted | €2,218.32 | |
|
00536OT3E182JP-SG | 230/460/190-220/380-415V AC | 60 Hz | - | S1 | 2 | 3600 RPM | 5.15/2.58A | Foot Mounted | €1,074.48 | |
|
01018OT3V215JP-SG | 200/400V AC | 60 Hz | - | S1 | 4 | 1800 RPM | 13.8/6.89A | Foot Mounted | €1,821.66 |
