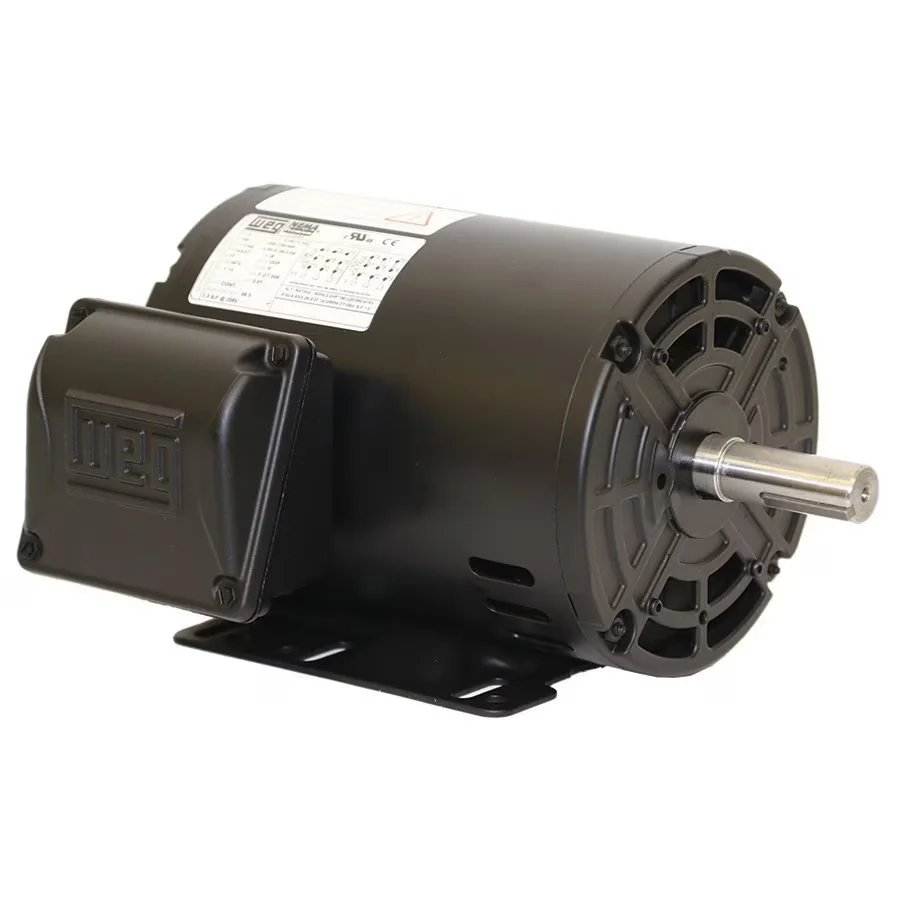

WEG 00156OT3E143T-SG 12674917 Air Handling Motor, 1.5 HP, 3600 RPM, 208/230/460 V, 3 Phase, ODP, 143/5T Frame, Footed, HVAC with Internal Shaft Grounding Rings
Get it by Thursday, Feb 19
€694.38 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Altitude | 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Balancing Method | 1/2" Key |
| Bearing Cap | Yes |
| Bolt Material | Carbon Steel |
| Break-down Torque | 330% |
| Cold Locked Rotor Time | 34 sec. |
| Connection Cables Quantity | 9 |
| Design | B |
| Drip Cover | Without |
| Duty Cycle | Continuous |
| Efficiency At 1 % | 89% |
| Efficiency At 50 % | 73% |
| Efficiency At 75 % | 83% |
| Enclosure Type | ODP |
| Fan Cover Material | Without Fan Cover |
| Fan Material | Without Fan |
| Flange Type | Without |
| Frame | 143/5T |
| Frame Material | Rolled Steel |
| Frame Size | 143T |
| Frequency | 50/60 Hz |
| Grounding Lugs | Single |
| Hot Locked Rotor Time | 19 sec. |
| Hp | 1 1/2 hp |
| Hz | 60 Hz |
| Impregnation Method | Dip And Bake Polyester |
| L. R. Amps | 31.8/15.9A |
| Locked Rotor Torque | 210% |
| Lrc | 8.6X(Code K) |
| Main Terminal Box Hole Size | 1.118" |
| Moment Of Inertia | 0.0835 lbs.-sq. ft. |
| Motor Enclosure Design | Open Dripproof |
| Motor Speed | 3510 RPM |
| Mounting | Foot Mounted |
| No Load Amps | 1.62/0.809A |
| No. Of Poles | 2 |
| Noise Level | 62 dBA |
| Output | 1 1/2 hp |
| Output Rating | 1 1/2 hp |
| Overload Protector | Without Overload Protector |
| Painting | Munsell N 1-Matte 207N (ISO 12944-C2) |
| Phase | 3 |
| Power Factor At 1 % | 84 |
| Power Factor At 50 % | 81.5 |
| Power Factor At 75 % | 84 |
| Product Datasheet | weg-00156ot3e143t-sg.pdf |
| Rated Current | 3.7/1.85A |
| Rated Torque | 2.24 lbs.-ft. |
| Rated Voltage | 230/460V AC |
| Resilient Base | Without |
| Rotation | Clockwise/Counter Clockwise |
| Rpm | 3400-3600 RPM |
| Service Factor | 1.15 |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Slip | 2.5% |
| Starting Method | Direct On Line |
| Synchronous Speed | 3600 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Tropicalized Painting | Without |
| Voltage | 208-230/460V |
Shipping Info:
| Ship weight (kg) | 15.3 |
| Ship height (cm) | 24.38 |
| Ship length (cm) | 39.88 |
| Ship width (cm) | 30.99 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | Voltage | Frequency | Hp | Duty Cycle | Synchronous Speed | No Load Amps | Mounting | Output Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
02018OT3E256T-SG | 230/460/190-220/380-415V AC | 60 Hz | - | S1 | 1800 RPM | 22.9/11.4A | Foot Mounted | 20 hp | €3,401.96 | |
|
00718OT3E213T-SG | 230/460/190-220/380-415V AC | 60 Hz | 7 1/2 hp | S1 | 1800 RPM | 8.79/4.39A | Foot Mounted | 7 1/2 hp | €2,028.52 | |
|
01518OT3E254T-SG | 230/460/190-220/380-415V AC | 50/60 Hz | - | S1 | 1800 RPM | 19/9.5A | Foot Mounted | 15 hp | €2,830.11 | |
 |
00336OT3E145T-SG | 230/460/190-220/380-415V AC | 60 Hz | - | S1 | 3600 RPM | 2.6/1.3A | Foot Mounted | 3 hp | €817.25 | |
 |
02036OT3E254JM-SG | 230/460/190-220/380-415V AC | 60 Hz | 20 hp | S1 | 3600 RPM | 17/8.5A | Foot Mounted | 20 hp | €2,759.44 | |
|
00518OT3E184T-SG | 230/460/190-220/380-415V AC | 50/60 Hz | 5 hp | Continuous | 1800 RPM | 6.29/3.15A | Foot Mounted | 5 hp | €1,288.60 | |
|
01018OT3E215T-SG | 230/460/190-220/380-415V AC | 60 Hz | 10 hp | S1 | 1800 RPM | 12/5.99A | Foot Mounted | 10 hp | €2,097.23 |
