WEG 00136OS1BJPR56C-S Electric Motor, 1Hp, 60Hz, 3600 Rpm | BC2FNM

WEG 00136OS1BJPR56C-S 14022941 Jet Pump Motor, 1 HP, 3600 RPM, 115/208-230 V, 1 Phase, ODP, 56C Frame, Footless

Item: BC2FNMModel: 00136OS1BJPR56C-SCross Ref: 14022941
Check Availability
In Stock
HP
Frame

Get it by Wednesday, Jul 8

€378.21 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Electric Motor
Altitude 1000 M.A.S.L. , 1000 MASL
Ambient Temp. -20°C to +40°C
Amps 12.8/7.08-6.4A , 6.4-7.08/12.8A
Balancing Method 1/2" Key
Bearing Cap Yes
Bolt Material Carbon Steel
Break Down Torque 280%
Cable Press Material Sem
Cold Locked Rotor Time 14 sec.
Composition Steel
Design No
Drip Cover Without
Duty Cycle S1
Efficiency 50% 55% , 60%
Efficiency 75% 65%
Efficiency @ 1 % 75%
Efficiency @ 100% 68%
Efficiency @ 75 % 67%
Enclosure IC01
Enclosure Type ODP
Fan Cover Material Without Fan Cover
Fan Material Without Fan
Flange C
Flange Type C
Frame 56C
Frame Material Rolled Steel
Frame Size 56C
Frequency 60 Hz
Grounding Lugs Single
Hot Locked Rotor Time 8 sec.
Hp 1 hp
Impregnation Method Dip And Bake Polyester
Insulation Class Class F
L. R. Amps 44.2-48.9/88.3A , 88.3/48.9-44.2A
Locked Rotor Time 8 sec.
Locked Rotor Time (cold) 14 sec.
Locked Rotor Torque 260%
Lrc 6.9X(Code M)
Moment Of Inertia 0.0472 lbs.-sq. ft.
Moment Of Inertia (j) 0.0472 lbs.-sq. ft.
Motor Enclosure Design Open Dripproof
Motor Speed 3500 RPM
Mounting F-1 , Footless
No Load Amps 3.62-4.2/8.4A , 8.4/3.62-4.2A
No. Of Poles 2
Noise Level 58 dBA
Output 1 hp
Output Rating 1 hp
Overload Protection Automatic
Overload Protector Automatic
Painting Only Primer
Phase 1
Power Factor 100% 0.75
Power Factor 50% 0.55
Power Factor 75% 0.67
Power Factor @ 1 % 68
Power Factor @ 50 % 60
Power Factor @ 75 % 65
Resilient Base Without
Rotation CCW
Service Factor 1.4
Shaft Material Stainless Steel
Shaft Material Grade Grade 304
Slip 2.78%
Speed 3400-3600 RPM , 3500 RPM
Starting Method Direct On Line
Synchronous Speed 3600 RPM
Temp. Rise 80 K
Terminal Box Without Terminal Box
Torque 1.5 lbs.-ft.
Tropicalized Painting Without
Voltage 115/208-230V , 115/208-230V AC

Shipping Info:

Ship weight (kg) 16.2
Ship height (cm)25.4
Ship length (cm)29.2
Ship width (cm)25.4
Country of OriginBR

Product Variants

ProductModelVoltageService FactorHpFrameNo Load AmpsMountingOutput RatingDesignPrice

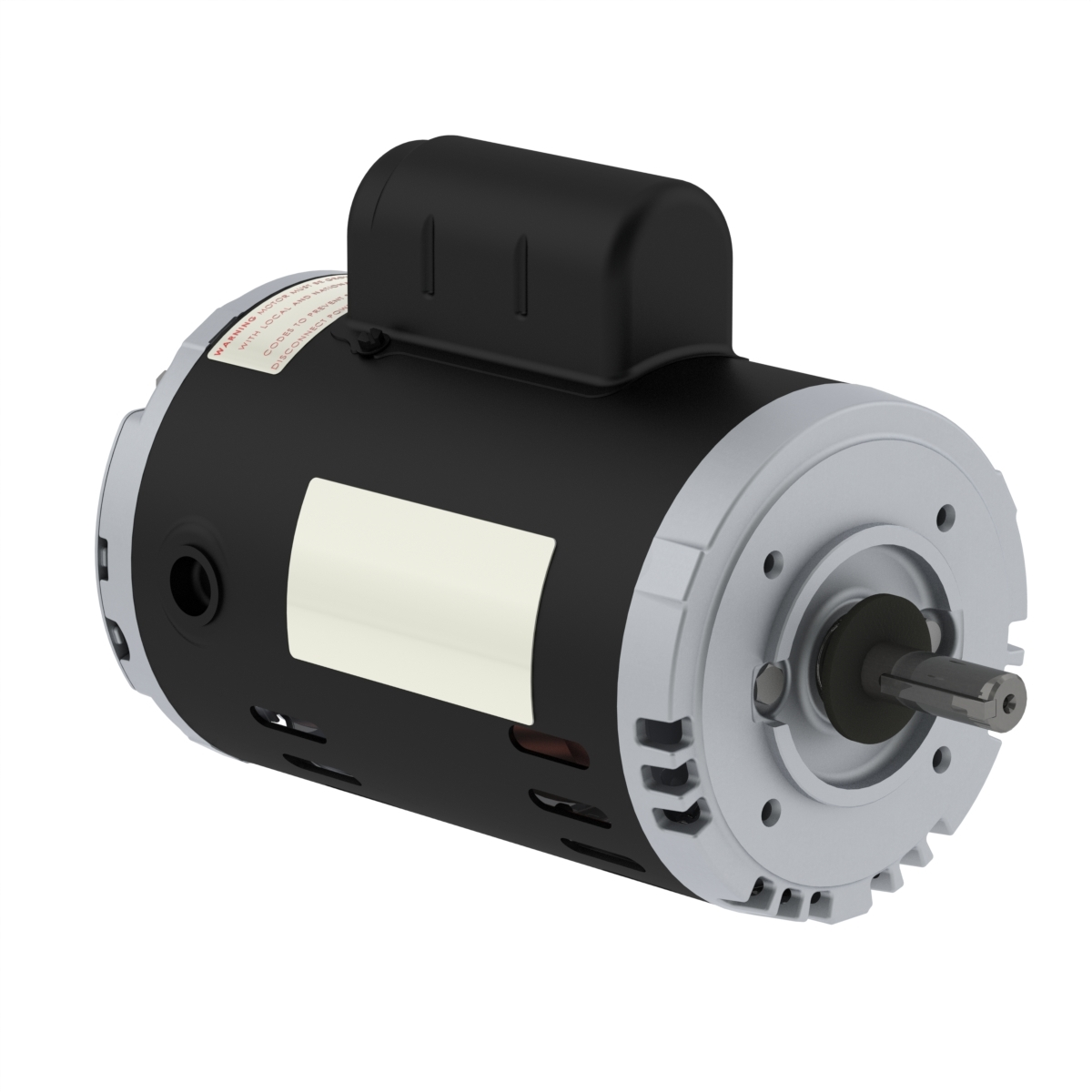

WEG .3336OS1BJPRW56C-S Electric Motor, 0.33Hp, 60Hz, 3600 Rpm | BB9MGW .3336OS1BJPRW56C-S115/208-230V AC1.751/3 hpW56C3.4/1.47-1.7AFootless1/3 hpNo€294.07

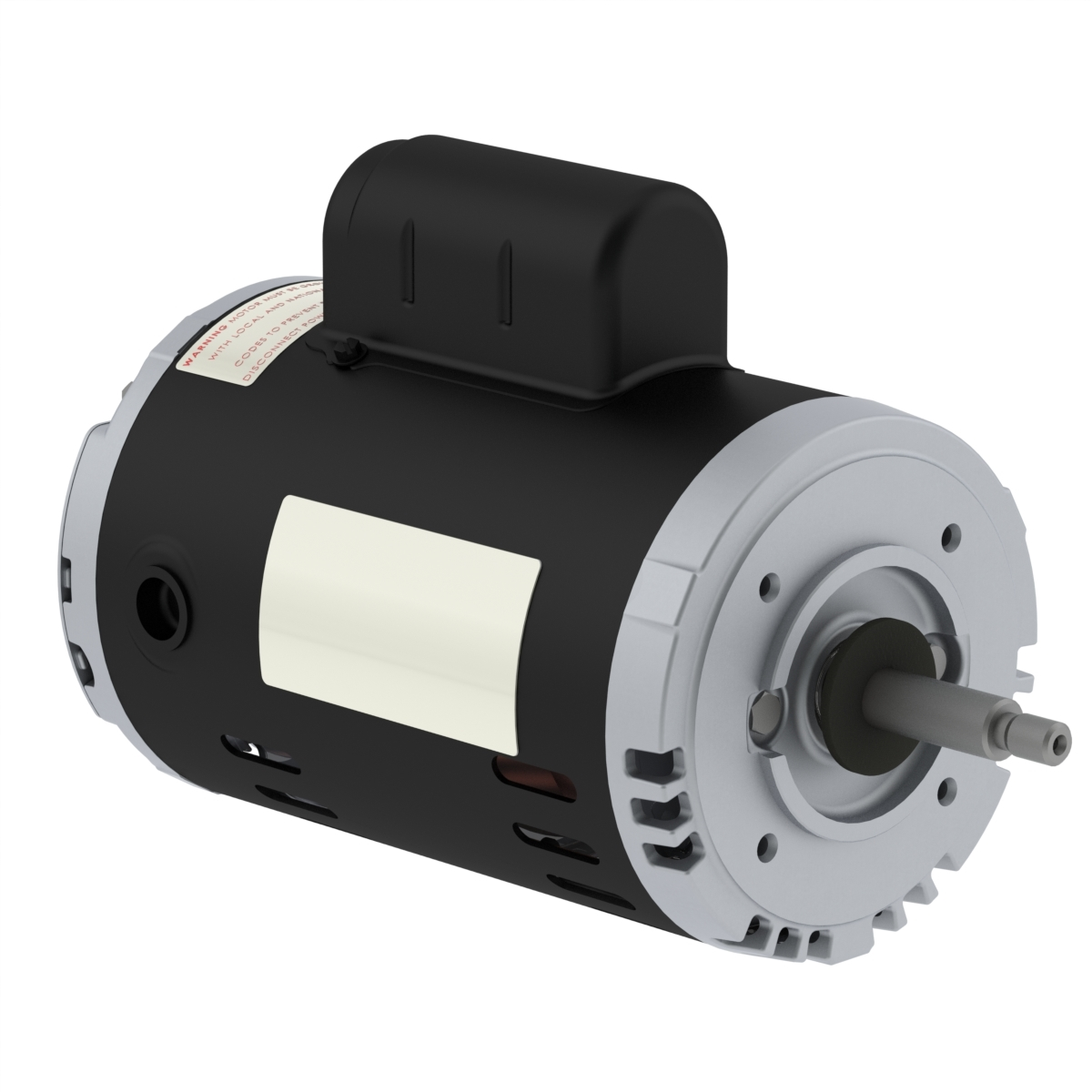

WEG .7536OS1BJPRW56J-S Electric Motor, 0.75Hp, 60Hz, 3600 Rpm | BB9NNB .7536OS1BJPRW56J-S115/208-230V AC1.5-W56J7.4/3.19-3.7AFootless3/4 hpNo€353.16
WEG 00236OS1BJPR56C-S Electric Motor, 2Hp, 60Hz, 3600 Rpm | BB9TUA 00236OS1BJPR56C-S115/208-230V AC1.22 hp56C12.6/5.43-6.3AFootless2 hpL€505.86

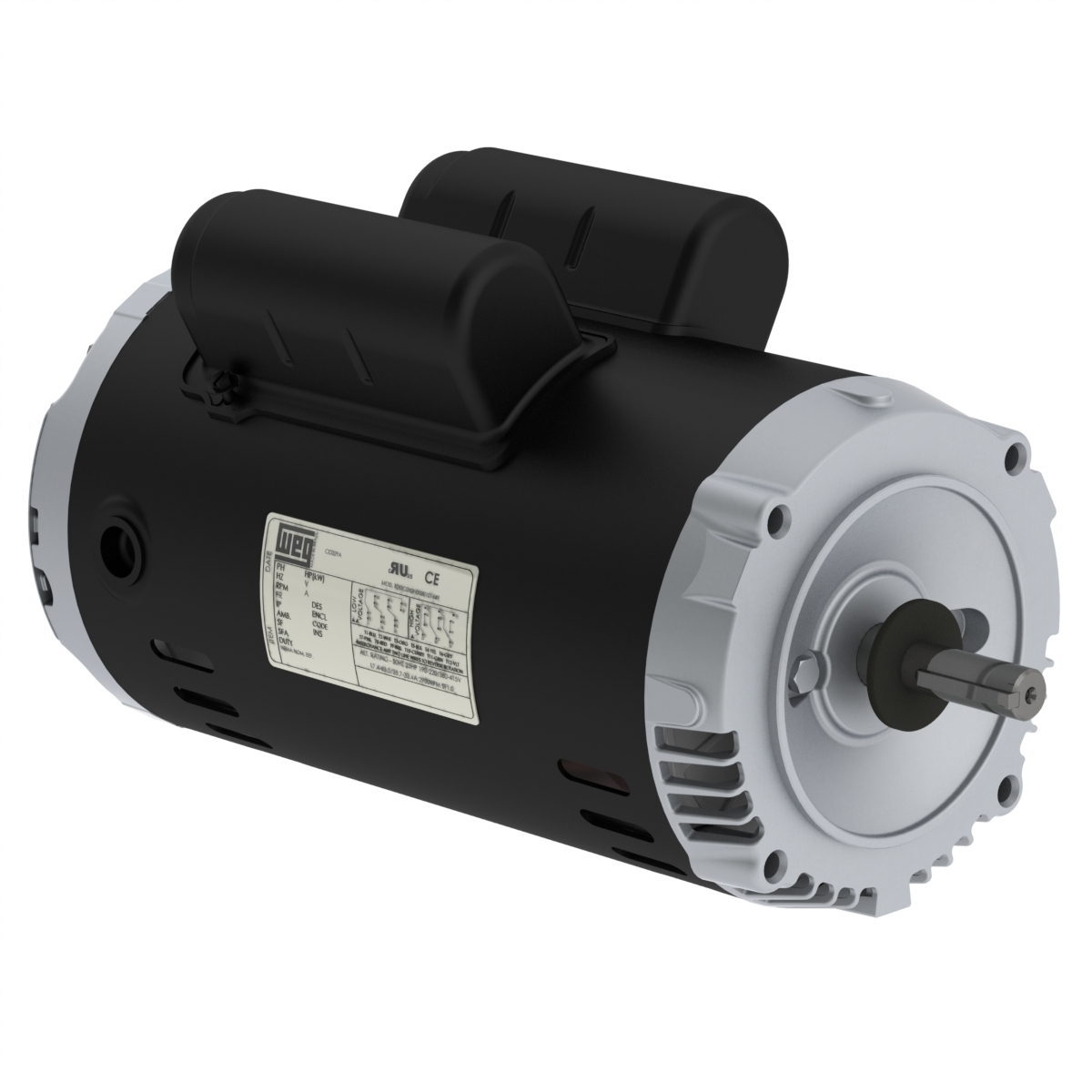

WEG 00336OS1DJPR56C-S Electric Motor, 3Hp, 60Hz, 3600 Rpm | BB9XCD 00336OS1DJPR56C-S230V1.15-56C4.5AFootless3 hpL€575.08
WEG .5036OS1BJPRW56J-S Electric Motor, 0.5Hp, 60Hz, 3600 Rpm | BB9XEQ .5036OS1BJPRW56J-S115/208-230V AC1.61/2 hpW56J4.6/1.98-2.3AFootless1/2 hpNo€307.80

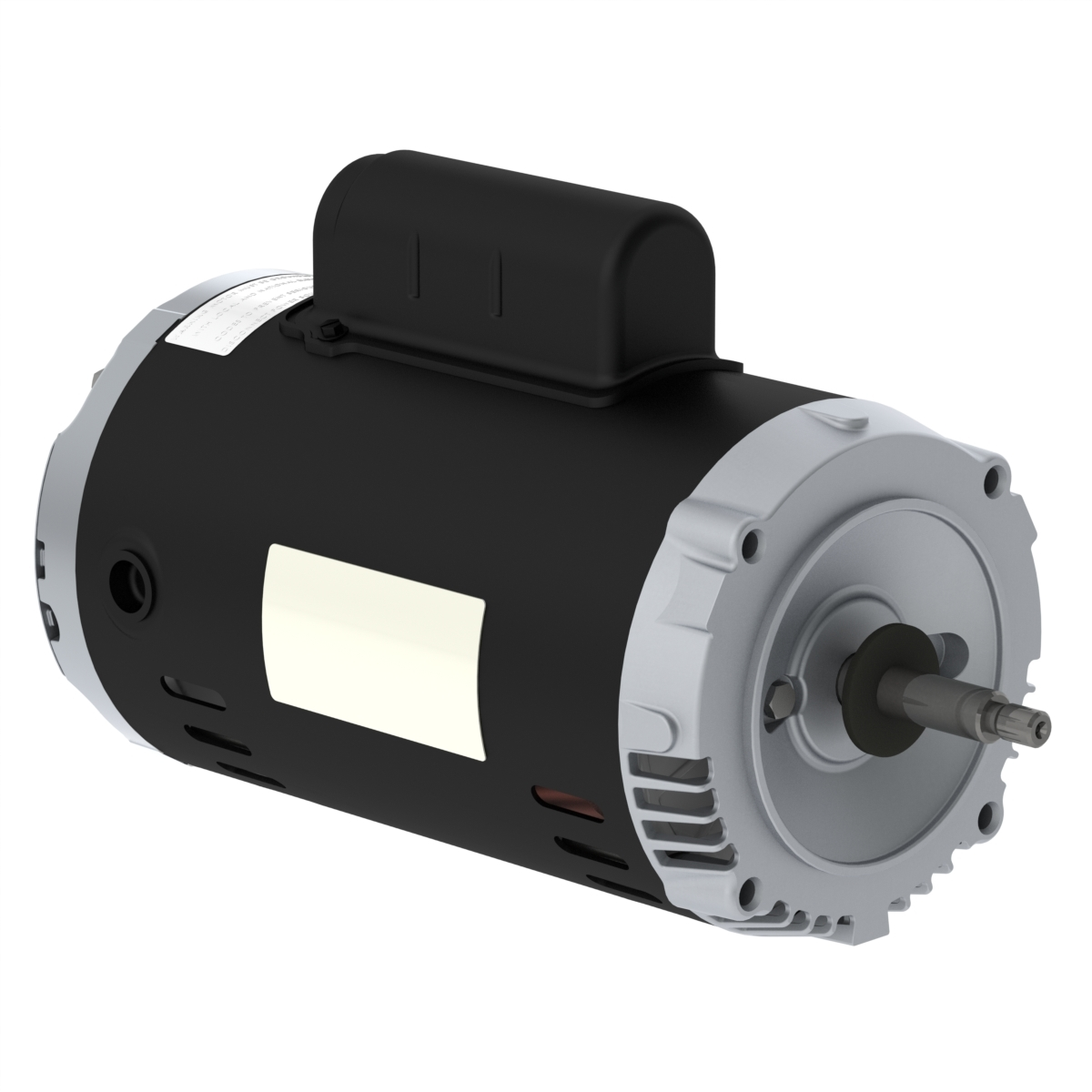

WEG 00156OS1BJPR56J-S Electric Motor, 1.5Hp, 60Hz, 3600 Rpm | BB9XRC 00156OS1BJPR56J-S115/208-230V AC1.31 1/2 hp56J11/4.74-5.5AFootless1 1/2 hpL€455.77

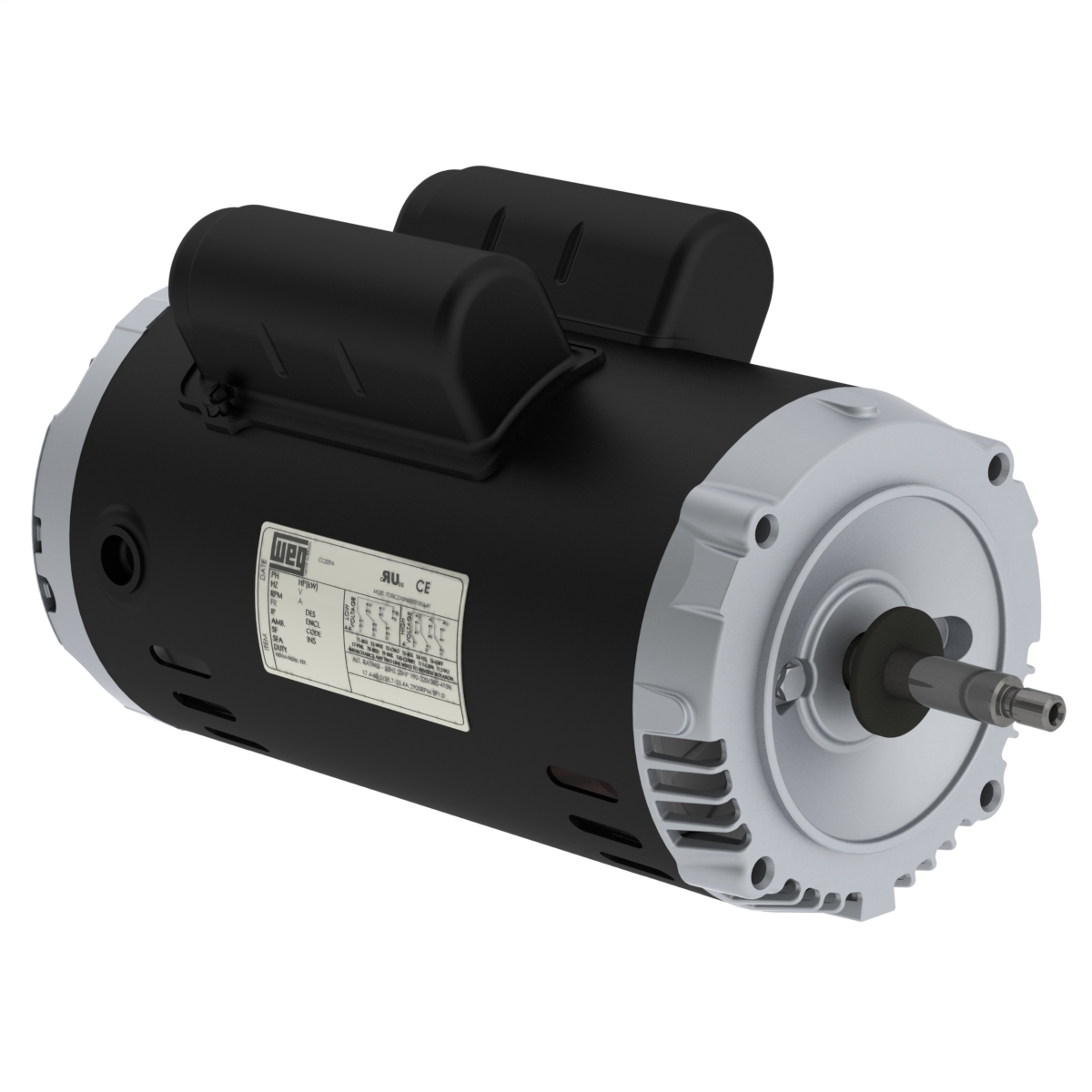

WEG 00236OS1BJPR56J-S Electric Motor, 2Hp, 60Hz, 3600 Rpm | BB9XRD 00236OS1BJPR56J-S115/208-230V AC1.22 hp56J12.6/5.43-6.3AFootless2 hpL€522.56
