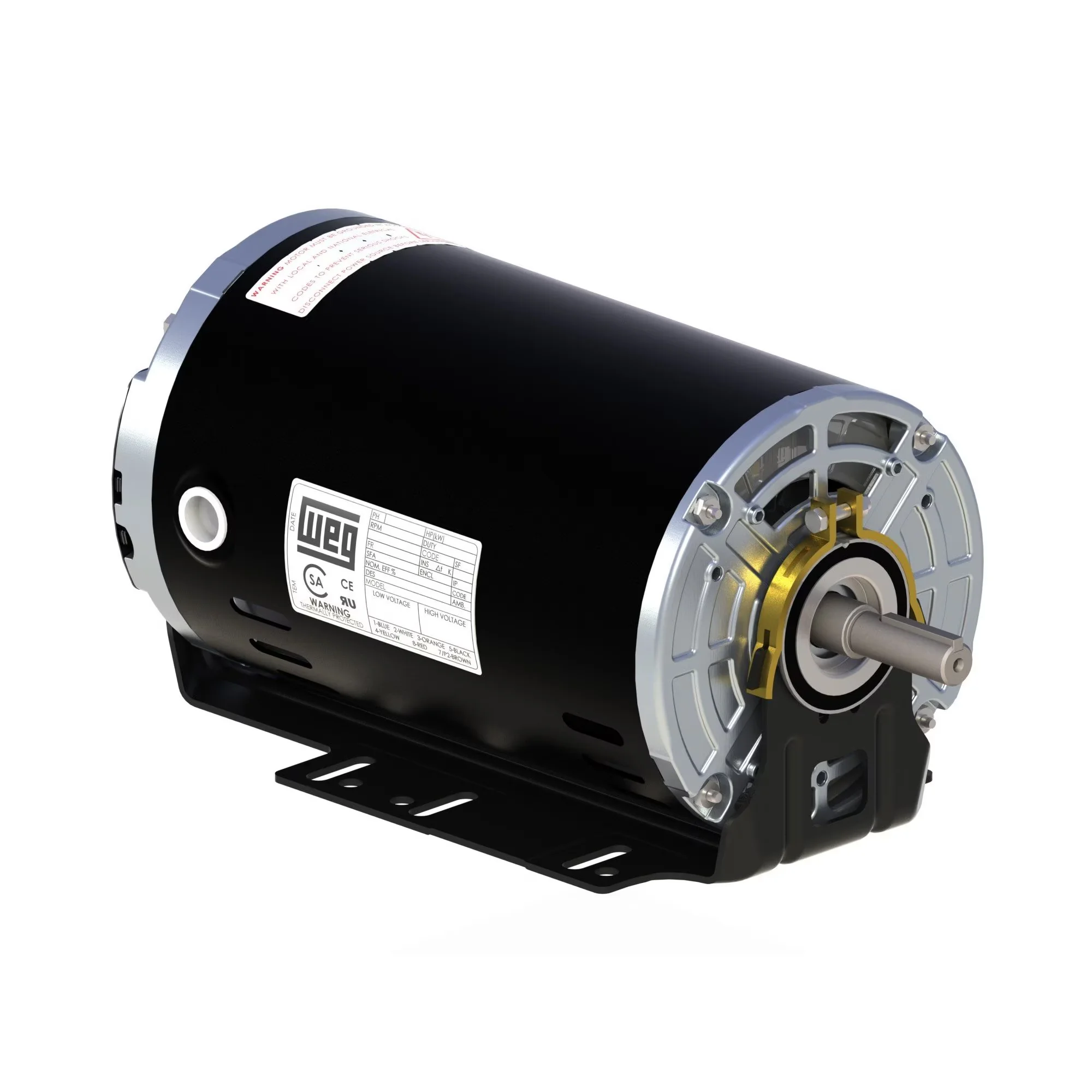

WEG 00118OS1BRBFBO56-S 14590194 Air Handling Motor, Fan and Blower, 1 HP, 0.75 kW, 1800 RPM, 56 Frame, 115/208-230 V
Get it by Tuesday, Aug 25
€486.77 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Motor |
| Ambient Temp. | -20°C to +50°C |
| Balancing Method | 1/2 Key |
| Bolt Material | Carbon Steel |
| Cold Locked Rotor Time | 12 sec. |
| De Bearing Seal | No |
| Design | L |
| Duty Cycle | S1 |
| Enclosure Rating | IC01 |
| Enclosure Type | ODP |
| Frame | 56 |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Grounding Lugs Type | Single |
| Insulation Class | Class F |
| L. R. Amps | 90.5/50-45.2A |
| Locked Rotor Time(hot) | 7 sec. |
| Lrc | 6.7x(Code M) |
| Nde Bearing Seal | No |
| No. Of Poles | 4 |
| Overload Protector (phenolic) | Automatic |
| Painting | Only Primer |
| Phase | 1 |
| Rotation | CW, CCW |
| Service Factor | 1.15 |
| Shaft Material | Carbon Steel |
| Speed | 1700-1800 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Tropicalized Painting | Without |
| Voltage | 115V/208-230V |
Shipping Info:
| Ship weight (kg) | 15.39 |
| Country of Origin | MX |
