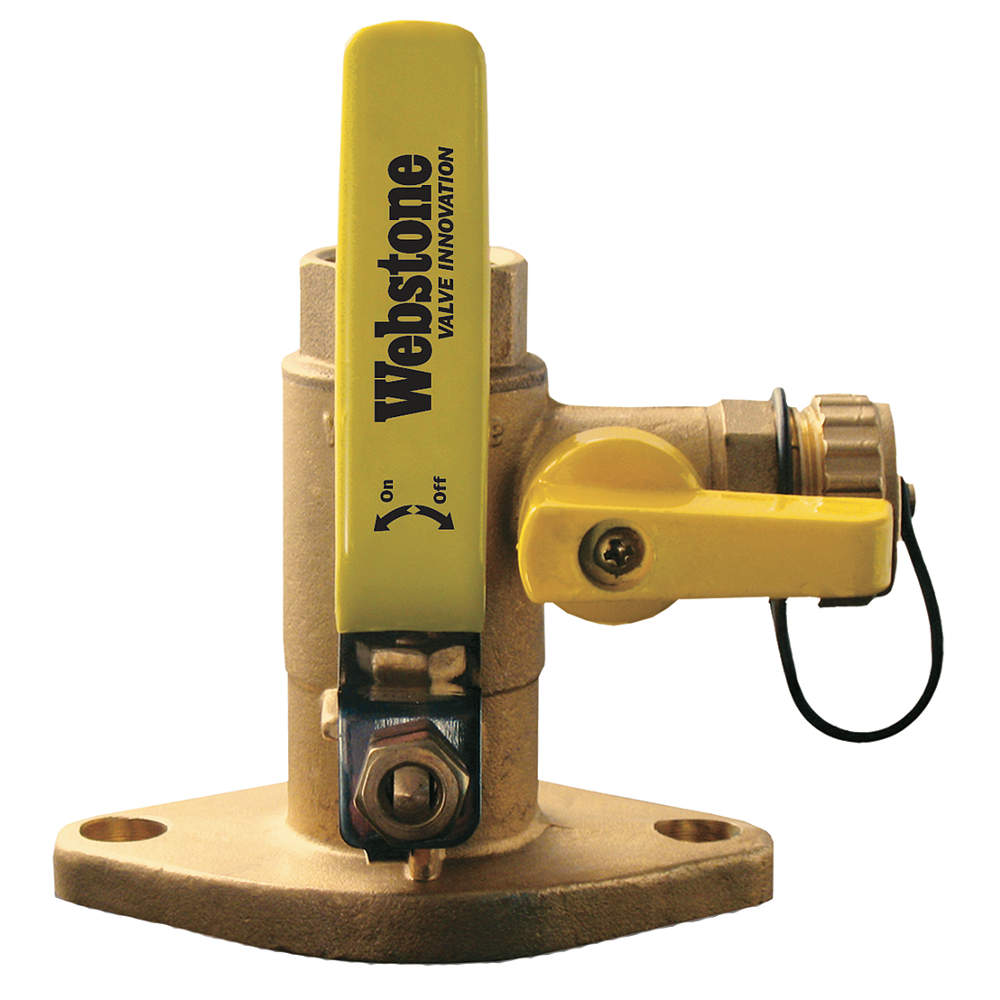

WEBSTONE 40413 Flange Ball Valve With Drain 3/4 In
Item: AD3PQGModel: 40413Cross Ref: 40L182
7 In Stock
Ships within 2 days via
10.00% off
€101.17 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Flanged Ball Valve w/Drain |
| Ball Material | Brass |
| Ball Port Style | Full Port |
| Ball Valve Basic Body Material | Brass |
| Ball Valve Product Group | Manual |
| Body Material | Brass |
| Bypass Cap Material | Brass |
| Bypass Connection | Flange |
| Bypass Connection Gender | Female |
| Bypass Connection Size | 3/4" |
| Bypass Connection Type | Flange |
| Compatible Pipe Size | 3/4" |
| Compatible With Brand | Nibco |
| Compatible With Series | 4041 Series |
| Connections | Flange x Fip |
| Fits Pump | Any Standard Flanged Pump |
| Flange Material | Brass |
| For Media | Water/Glycol Mixture |
| Handle Material | Steel |
| Handle Type | Lever |
| Includes | Adjustable Packing Glands, Bolts, Nuts |
| Material | Low Lead Brass |
| Max. Media Temperature | 350°F |
| Max. Operating Pressure | 600 psi |
| Max. Operating Temp. | 250 Degrees |
| Max. Operating Temp. | 250° |
| Max. Pressure | 600 psi |
| Media Temperature Range | -20°F to +350°F |
| Min. Media Temperature | -20°F |
| Nominal Valve Size | 3/4" |
| Outlet Connection Gender - Side 1 | Female |
| Outlet Connection Gender - Side 2 | Female |
| Outlet Connection Size - Side 1 | 3/4" |
| Outlet Connection Size - Side 2 | 3/4" |
| Outlet Connection Type - Side 1 | Flange |
| Outlet Connection Type - Side 2 | IPS |
| Overall Length | 3.56" |
| Screen Material | Not Applicable |
| Seal Material | PTFE |
| Seat Material | PTFE |
| Stem Material | Brass |
| Stem Type | Blowout Resistant |
| Valve Design | Uni Flange |
| Valve Series | H-X041 Series |
| Valve Type | Three Way Ball |
Shipping Info:
| Ship weight (kg) | 1.06 |
| Ship height (cm) | 8.13 |
| Ship length (cm) | 15.24 |
| Ship width (cm) | 12.45 |
| HS code | 8481801085 |
| Country of Origin | CN |
Product Variants
| Model | Pipe Size | Overall Length | Pipe Type | Max. Pressure | Material | Flange Material | Max. Operating Temp. | Stem Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 40414HV | - | 4.19" | - | 600 psi | Low Lead Brass | Brass | 250° | Blowout Resistant | €127.48 | |
| 40415HV | 1.25" | 4.44" | FNPT | 600 psi | Low Lead Brass | Brass | 250° | Blowout Resistant | €166.97 | |
| 40416HV | 1.5" | - | FNPT | 600 psi | Low Lead Brass | Brass | 250° | Blowout Resistant | €242.92 | |
| 40417HV | - | 6.5" | - | 600 psi | Low Lead Brass | Brass | 250° | Blowout Resistant | €328.95 | |

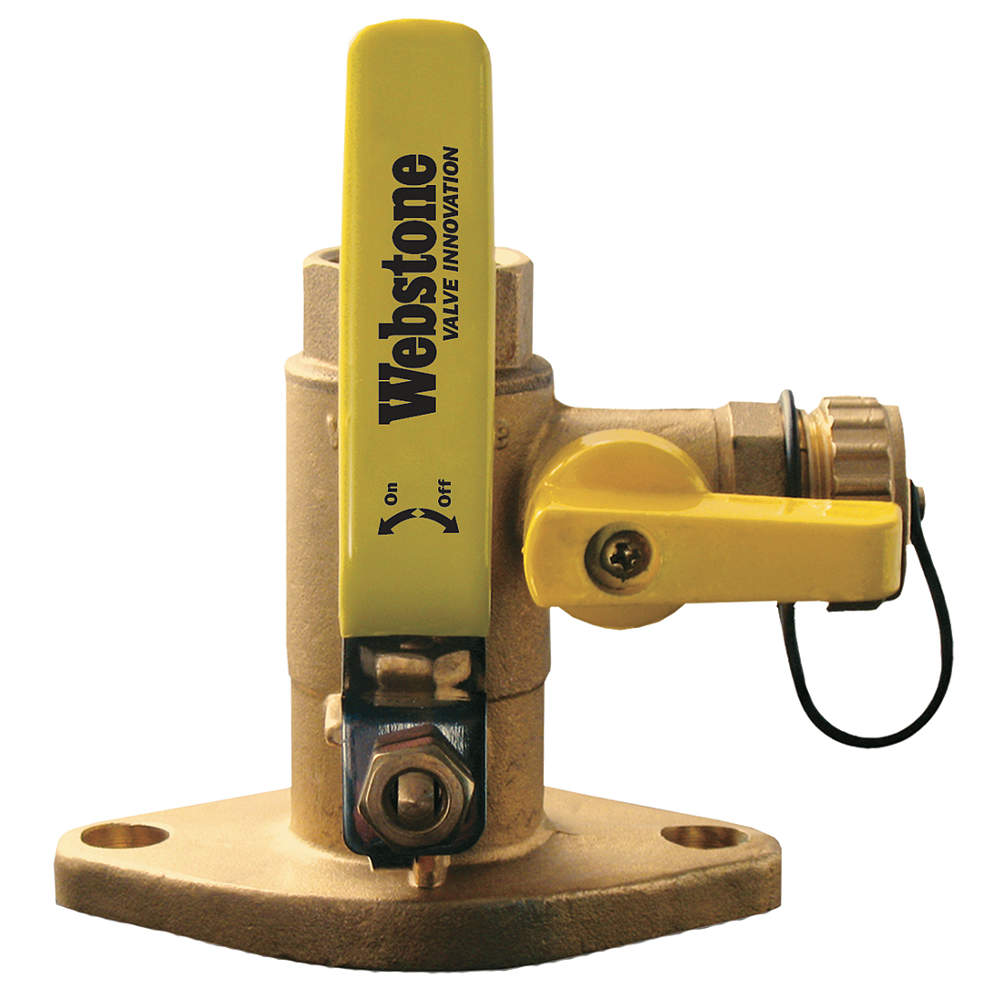

| 50413 | - | 4" | - | 600 psi | Low Lead Brass | Brass | 250° | Blowout Resistant | €109.10 | |
| 50414HV | 1 SWT | 4.5" | - | 600 psi | Low Lead Brass | Brass | 250° | Blowout Resistant | €132.42 | |
| 50415HV | 1.25" | 4.75" | SWT | 600 psi | Low Lead Brass | Brass | 250° | Blowout Resistant | €166.97 |
