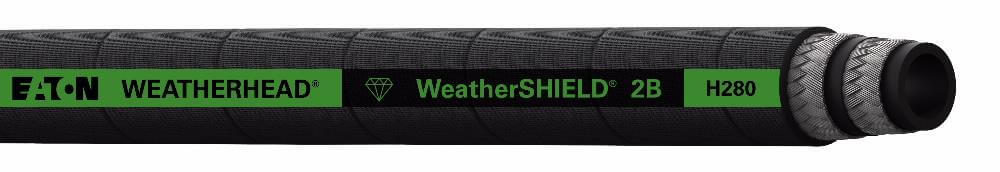

WEATHERHEAD H28024-150 Hydraulic Hose, 2000 psi, 1 1/2 Inch Hose I.D., 2 1/32 Inch Hose O.D., 150 ft Hose Lg
Get it by Tuesday, Aug 25
13.00% off
€6,949.10 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hydraulic Hose |
| Abrasion Resistant | Premium |
| Application | Hydraulics, Construction, Agriculture. |
| Bend Radius | 9 21/25" |
| Burst Pressure | 8000 psi |
| Color | Black |
| Compatible Chemicals | Air, Automatic Transmission Fluid, Diesel Fuel, Ethylene Glycol, Fresh Water, Fuel Oil, Gasoline, Hydraulic Fluid (Petroleum), Hydraulic Fluid (Synthetic), Kerosene, Lithium Grease, Lubricated Air, Min.Eral Oil, Motor Oil, Salt Water |
| Compatible Fittings | Z |
| Conditional Temp. | -40°F to +158°F, -40°F to +260°F |
| Conductivity | Conductive |
| Construction | 2-ply braid |
| Cover Color | Black |
| Cover Material | Vinyl Nitrile |
| Dash Size | 24 |
| For Media Type | Air, Automatic Transmission Fluid, Diesel Fuel, Ethylene Glycol, Fuel Oil, Gasoline, Hydraulic Fluid, Kerosene, Lithium Grease, Lubricated Air, Mineral Oil, Motor Oil, Water |
| Height | 2 2/25" |
| Hose Color | Black |
| Hose Configuration | Bulk Hose |
| Hose Cover Material | Dura Tuff Rubber |
| Hose Covering Material | Vinyl Nitrile |
| Hose Dash Size | -24 |
| Hose Fittings | Z |
| Hose Inside Dia. | 1 1/2" |
| Hose Length | 150 ft. |
| Hose Outside Dia. | 2 1/32" |
| Hose Reinforcement | 2 Steel Braids |
| Hose Reinforcement Material | Carbon Steel |
| Hose Reinforcement Type | 2 Braids Of Steel Wire |
| Hose Tube Material | Nitrile |
| Hose Weight | 210 lbs. |
| Impulse Cycle Life | 400000 Cycles |
| Inside Dia. | 1 1/2" |
| Lay Line Style | Embossed |
| Length | 150 ft. |
| Length Configuration | 50, 150 |
| Material | Carbon Steel |
| Max. Operating Temp. | 260°F |
| Max. Pressure | 2000 psi |
| Max. Working Pressure | 2000 psi |
| Max. Working Pressure @ 70f | 2000 psi |
| Min. Bend Radius | 9 21/25" |
| Min. Burst Pressure | 8000 psi |
| Min. Operating Temp. | -50°F |
| Min. Temp. | -50°F |
| Min. Working Temp. | -50°F |
| Operating Pressure | 2000 psi |
| Outside Dia. | 2 2/25" |
| Overall Length | 150 ft. |
| Reinforcement Material | Wire |
| Safety Factor | 4:1 |
| Segment Code | C |
| Temp. | Petroleum-Based Hydraulic Fluids-50°F to 260°F, Water-Based Hydraulic Fluids-50°F to 158°F |
| Temp. Range For Petroleum Based Hydraulic Fluids | -40°F to +260°F |
| Temp. Range For Water Based Hydraulic Fluids | -40°F to +158°F |
| Tube Material | Synthetic Rubber |
| Tube Wall Thickness | 0.53" |
| Type | Crimped |
| Wall Thickness | 0.53" |
| Weight Per 100 Feet | 140 lbs. |
| Width | 2 2/25" |
| Working Pressure | 2000 psi |
Shipping Info:
| Ship weight (kg) | 94.5 |
| Ship height (cm) | 5.28 |
| Ship length (cm) | 114.3 |
| Ship width (cm) | 5.28 |
| HS code | 4009410000 |
| Country of Origin | US |
Product Variants
| Model | Hose Inside Dia. | Working Pressure | Burst Pressure | Height | Wall Thickness | Length Configuration | Min. Bend Radius | Dash Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| H28004-250R | 1/4" | 6500 psi | 26000 psi | 0.57" | 0.31" | 50, 250, 500 | 2" | 4 | €1,957.98 | |
| H28004-500R | 1/4" | 6500 psi | 26000 psi | 0.57" | 0.31" | 50, 250, 500 | 2" | 4 | €3,654.78 | |
| H28006-250R | 3/8" | 5800 psi | 23200 psi | 0.71" | 0.31" | 50, 250, 500 | 2 1/2" | 6 | €2,257.40 | |
| H28006-500R | - | 5800 psi | 23200 psi | 0.71" | 0.31" | 50, 250, 500 | 2 1/2" | 6 | €4,967.62 | |
| H28008-250R | 1/2" | 5000 psi | 20000 psi | 0.85" | 8/25" | 50, 250, 500 | 3 1/2" | 8 | €2,590.43 | |
| H28010-250R | 5/8" | 4000 psi | 16000 psi | 1" | 9/25" | 50, 250 | 4" | 10 | €3,137.17 | |
| H28012-250R | - | 3500 psi | 14000 psi | 1.13" | 0.37" | 50, 250 | 4 3/4" | - | €3,992.96 |
