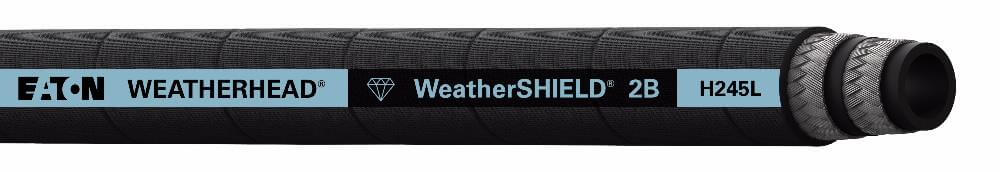

WEATHERHEAD H245L12-250R Hydraulic Hose, 3500 psi, 3/4 Inch Hose I.D., 53/64 Inch Hose O.D., 250 ft Hose Lg
Get it by Friday, Aug 28
13.00% off
€4,742.09 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hydraulic Hose |
| Abrasion Resistant | Premium |
| Application | Construction |
| Bend Radius | 4 3/4" |
| Burst Pressure | 14000 psi |
| Color | Black |
| Compatible Chemicals | Air, Automatic Transmission Fluid, Diesel Fuel, Ethylene Glycol, Fresh Water, Fuel Oil, Gasoline, Hydraulic Fluid (Petroleum), Hydraulic Fluid (Synthetic), Kerosene, Lithium Grease, Lubricated Air, Min.Eral Oil, Motor Oil, Salt Water |
| Compatible Fittings | Z |
| Conductivity | Conductive |
| Construction | 2-ply braid |
| Cover Color | Black |
| Cover Material | Chloroprene Rubber |
| Dash Size | 12 |
| For Media Type | Air, Automatic Transmission Fluid, Diesel Fuel, Ethylene Glycol, Fuel Oil, Gasoline, Hydraulic Fluid, Kerosene, Lithium Grease, Lubricated Air, Mineral Oil, Motor Oil, Water |
| Height | 1.14" |
| Hose Color | Black |
| Hose Configuration | Bulk Hose |
| Hose Cover Material | Synthetic Rubber |
| Hose Covering Material | Chloroprene Rubber |
| Hose Dash Size | -12 |
| Hose Fittings | Z |
| Hose Inside Dia. | 3/4" |
| Hose Length | 250 ft. |
| Hose Outside Dia. | 53/64" |
| Hose Reinforcement | Wire |
| Hose Reinforcement Material | Carbon Steel |
| Hose Reinforcement Type | 2 Braids Of Wire |
| Hose Tube Material | Nitrile |
| Hose Weight | 155 lbs. |
| Impulse Cycle Life | 300000 Cycles |
| Inside Dia. | 3/4" |
| Lay Line Style | Ink Jet |
| Length | 250 ft. |
| Length Configuration | 50, 250 |
| Material | Carbon Steel |
| Max. Operating Temp. | 212°F |
| Max. Pressure | 3500 psi |
| Max. Working Pressure | 3500 psi |
| Max. Working Pressure @ 70f | 3500 psi |
| Min. Bend Radius | 4 3/4" |
| Min. Operating Temp. | -70°F |
| Min. Pressure | 14000 psi |
| Min. Temp. | -70°F |
| Min. Working Temp. | -70°F |
| Operating Pressure | 3500 psi |
| Outside Dia. | 1.14" |
| Overall Length | 250 ft. |
| Reinforcement Material | Wire |
| Safety Factor | 4:1 |
| Segment Code | A |
| Temp. | -70°F to +212°F |
| Tube Material | Nitrile |
| Tube Wall Thickness | 0.185" |
| Type | Crimped |
| Wall Thickness | 0.185" |
| Weight Per 100 Feet | 62 lbs. |
| Width | 1.14" |
| Working Pressure | 3500 psi |
Shipping Info:
| Ship weight (kg) | 69.75 |
| Ship height (cm) | 2.9 |
| Ship length (cm) | 71.12 |
| Ship width (cm) | 2.9 |
| HS code | 4009410000 |
| Country of Origin | US |
Product Variants
| Model | Hose Inside Dia. | Hose Tube Material | Max. Working Pressure @ 70f | Working Pressure | Burst Pressure | Dash Size | Height | Wall Thickness | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| H245L04-250R | 1/4" | Nitrile | 6000 psi | 6000 psi | 24025 psi | 4 | 14/25" | 0.155" | €2,523.42 | |
| H245L06-250R | 3/8" | Nitrile | 5000 psi | 5000 psi | 20025 psi | 6 | 0.7" | 0.15" | €2,830.61 | |
| H245L08-250R | 1/2" | Nitrile | 4500 psi | 4500 psi | 18000 psi | 8 | 21/25" | 4/25" | €3,515.32 | |
| H245L10-250R | 5/8" | Nitrile | 4000 psi | 4000 psi | 16000 psi | 10 | 1" | 0.175" | €4,845.17 | |
| H245L16-250R | 1" | Synthetic Rubber | 2800 psi | 2800 psi | 11200 psi | 16 | 1.43" | 0.205" | €7,283.71 |
