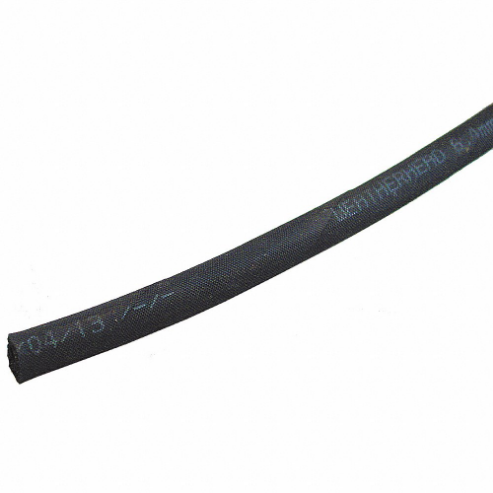

WEATHERHEAD H145R06-250R Hydraulic Hose, 3045 psi, 3/8 Inch Hose I.D., 25/32 Inch Hose O.D., 250 ft Hose Lg
Get it by Tuesday, Sep 1
13.00% off
€1,760.36 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hydraulic Hose |
| Abrasion Resistant | Ultra |
| Application | Refined Petroleum Based Fluids |
| Bend Radius | 2 14/25" |
| Burst Pressure | 12200 psi |
| Color | Black |
| Compatible Chemicals | Air, Automatic Transmission Fluid, Diesel Fuel, Ethylene Glycol, Fresh Water, Fuel Oil, Gasoline, Hydraulic Fluid (Petroleum), Hydraulic Fluid (Synthetic), Kerosene, Lithium Grease, Lubricated Air, Min.Eral Oil, Motor Oil, Salt Water |
| Compatible Fittings | Z |
| Construction | 1 Ply Braid |
| Cover Color | Black |
| Cover Material | Bruiser |
| Dash Size | 6 |
| For Media Type | Air, Automatic Transmission Fluid, Diesel Fuel, Ethylene Glycol, Fuel Oil, Gasoline, Hydraulic Fluid, Kerosene, Lithium Grease, Lubricated Air, Mineral Oil, Motor Oil, Water |
| Height | 0.67" |
| Hose Color | Black |
| Hose Configuration | Bulk Hose |
| Hose Cover Material | UHMW PE |
| Hose Dash Size | -6 |
| Hose Fittings | Z |
| Hose Inside Dia. | 3/8" |
| Hose Length | 250 ft. |
| Hose Outside Dia. | 25/32" |
| Hose Reinforcement | Steel |
| Hose Reinforcement Material | Carbon Steel |
| Hose Reinforcement Type | 1 Braid Of Steel Wire |
| Hose Tube Material | Nitrile |
| Hose Weight | 57.5 lbs. |
| Impulse Cycle Life | 200000 Cycles |
| Inner Tube Material | Synthetic Rubber |
| Inside Dia. | 0.38" |
| Lay Line Style | Ink Transfer |
| Length | 250 ft. |
| Max. Operating Temp. | 212°F |
| Max. Pressure | 3000 psi |
| Max. Working Pressure | 3000 psi |
| Max. Working Pressure @ 70f | 3045 psi |
| Min. Bend Radius | 2 14/25" |
| Min. Operating Temp. | -40°F |
| Min. Pressure | 12000 psi |
| Min. Temp. | -40°F |
| Min. Working Temp. | -40°F |
| Operating Pressure | 3000 psi |
| Outside Dia. | 0.67" |
| Overall Length | 250 ft. |
| Reinforcement Material | Steel |
| Safety Factor | 4:1 |
| Temp. | -40°F to +212°F |
| Tube Material | Synthetic Rubber |
| Tube Wall Thickness | 0.14" |
| Type | Crimped |
| Wall Thickness | 0.14" |
| Width | 0.67" |
| Working Pressure | 3050 psi |
Shipping Info:
| Ship weight (kg) | 25.88 |
| Ship height (cm) | 1.7 |
| Ship length (cm) | 55.88 |
| Ship width (cm) | 1.7 |
| HS code | 4009410000 |
| Country of Origin | US |
Product Variants
| Model | Hose Inside Dia. | Dash Size | Height | Wall Thickness | Min. Bend Radius | Temp. | Hose Cover Material | Hose Tube Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| H145R10-250R | 5/8" | 10 | 1.01" | 0.175" | 4" | -40°F to +212°F | UHMW PE | Nitrile | €4,310.93 | |
| H145R12-250R | 3/4" | 12 | 1.14" | 0.18995" | 4 18/25" | -40°F to +212°F | UHMW PE | Nitrile | €6,115.23 | |
| H145R04-250R | 1/4" | 4 | 13/25" | 1/8" | 1.97" | -40°F to +212°F | UHMW PE | Nitrile | €1,774.30 | |
| H145R08-250R | 1/2" | 8 | 0.85" | 0.15" | 3.54" | -40°F to +212°F | UHMW PE | Nitrile | €2,340.48 | |
| H145R16-250R | 1" | 16 | 1 1/2" | 0.235" | 5.91" | -40°F to +212°F | UHMW PE | Nitrile | €8,063.05 |
