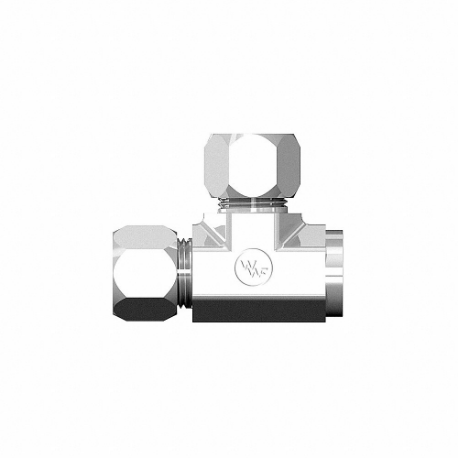

WEATHERHEAD 7805X04X02X04 Female Run Tee, Adapter Tee, Compression x FNPT x Compression
Item: CU9UNVModel: 7805X04X02X04Cross Ref: 787TM4
7 In Stock
Ships within 2 days via
10.00% off
€25.97 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Female Run Tee |
| Application | Chemicals, Construction Machinery, High Pressure Hydraulic, Machine Tools, Marine, Military, Textile Machinery |
| Color | Clear |
| Finish | Zinc Trivalent |
| Fits Brand | Air-Way, Parker |
| Fitting Side A Connection Type | Compression |
| Fitting Side A Tube Outer Diameter | 1/4" |
| Fitting Side B Connection Type | FNPT |
| Fitting Side B Tube Outer Diameter | 1/8" |
| Fitting Side C Connection Type | Compression |
| Fitting Side C Tube Outer Diameter | 1/4" |
| Hex Size | 0.563" |
| Material | Steel |
| Max. Operating Pressure | 5250 psi |
| Max. Operating Temp. | 450°F |
| Mfr. Series | 7000 Series Ermeto |
| Specific Fitting Shape | Adapter Tee |
| Sub-brand | Ermeto |
| System Of Measurement | Imperial |
| Thread Size B | 1/8"-27 |
Shipping Info:
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Hex Size | Fitting Side A Tube Outer Diameter | Thread Size B | Fitting Side B Tube Outer Diameter | Fitting Side C Tube Outer Diameter | Overall Length | Max. Operating Temp. | Max. Operating Pressure | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
7805X04X04X04 | 3/4" | 1/4" | 1/4"-18 | 1/4" | 1/4" | 1 29/32" | 450°F | 5250 psi | €32.34 | |
|
7805X08X06X08 | 7/8" | 1/2" | 3/8"-18 | 3/8" | 1/2" | 2 1/4" | 450°F | 5250 psi | €51.34 |
