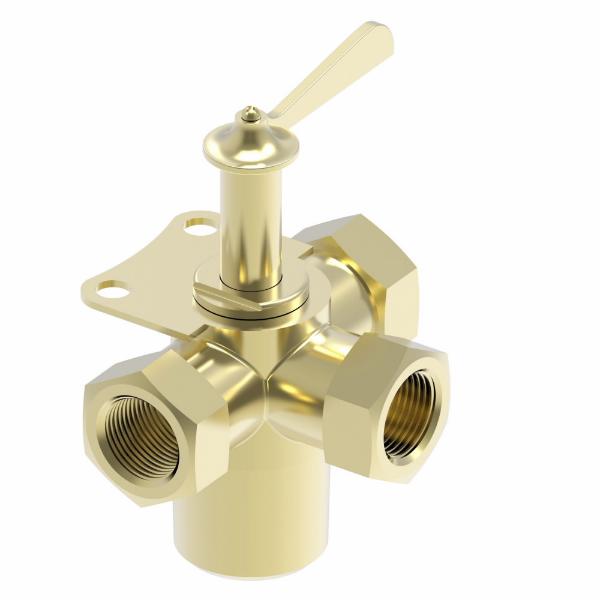

WEATHERHEAD 6749 Multiple Shut-Off Valve, 3-Way, Brass, FNPT, 1/4 Inch Pipe Size, 3 Inch Overall Height
Item: AB3XBAModel: 6749Cross Ref: 1VRB4
7 In Stock
Ships within 2 days via
13.00% off
€82.32 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Multiple Shut-Off Valve |
| Body Material | Brass |
| Connection Gender Side 2 | Female |
| Connection Gender-side 1 | Female |
| Connection Gender-side 3 | Female |
| Connection Size-side 1 | 1/4" |
| Connection Size-side 2 | 1/4" |
| Connection Size-side 3 | 1/4" |
| Connection Type | FNPT x FNPT x FNPT |
| Connection Type-side 1 | NPT |
| Connection Type-side 2 | NPT |
| Connection Type-side 3 | NPT |
| End Type | NPT |
| Female Pipe Size | 1/4" |
| Fitting Angle | Straight |
| Fitting Description | Three Way Multiple Shut-Off |
| Fitting Type | 3 Way Multiple Shut-Off |
| For Media | Fluids |
| Handle Material | Brass |
| Handle Type | Lever |
| L Stem | 1 3/8" |
| Max. Media Temp. | 250°F |
| Max. Pressure | 30 psi |
| Max. Pressure (cwp) | 30 psi |
| Media Temp. | -65°F to +250°F |
| Min. Media Temp. | -65°F |
| Overall Height | 3" |
| Overall Length | 1.37" |
| Pipe Size | 1/4" |
| Pipe/tube Size | 1/4" |
| Plug Material | Brass |
| Product Type | Multiple Shut-Off Valve |
| Temp. | -65°F to +250°F |
| Valve Design | 3-Way |
| Valve Flow Pattern | 3 Way |
| Valve Series | GROUND PLUG Series, MULTIPLE SHUT-OFFS Series |
Shipping Info:
| Ship weight (kg) | 0.21 |
| Ship height (cm) | 6.45 |
| Ship length (cm) | 7.52 |
| Ship width (cm) | 4.45 |
| HS code | 8481801050 |
| Country of Origin | US |
Product Variants
| Product | Model | Connection Size-side 1 | Connection Size-side 2 | Connection Size-side 3 | Max. Pressure | Max. Pressure (cwp) | Temp. | Overall Height | Valve Flow Pattern | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
6709 | 3/8" | 3/8" | 3/8" | 30 psi | 30 psi | -65°F to +250°F | 3" | 3 Way | €133.61 |
