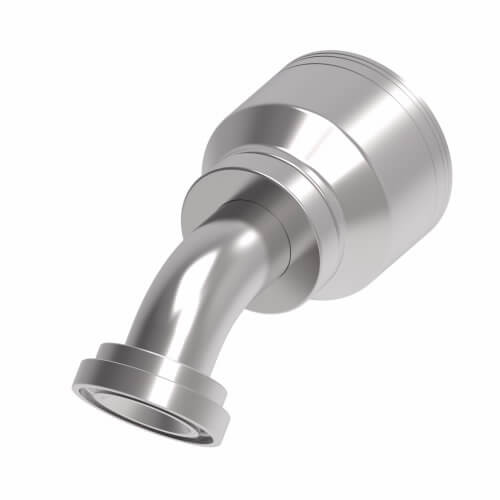

WEATHERHEAD 20Z-G54 Hydraulic Hose Fitting
Item: AF6UZEModel: 20Z-G54Cross Ref: 20JX03
7 In Stock
Ships within 2 days via
13.00% off
€160.67 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Hydraulic Hose Fitting |
| Adapter Type | Hose Fittings |
| Angle | 45 Degree |
| Application | General Purpose Low And Medium Pressure Hydraulics. Use H277 Or H435 Where Shock Hazards Exist |
| Assembly Type | Fitting Assembly |
| Body Material | Carbon Steel |
| Compatible Hose Inside Dia. | 1 1/4" |
| Connection 1 Short Name | Flanged |
| Construction | Crimp |
| Construction Style | Crimp |
| Dash Size | -20 |
| Drop Dimension | 1.41 |
| End 1 Size | 1 1/2" |
| End 1 Style | Flanged |
| End 1 Type | Flanged |
| End Type | Flanged |
| End Type 1 | Flanged |
| End Type 2 | Line, Hose, Tube |
| Finish | Trivalent Chromate, Zinc |
| Finish Plating | Dura Kote |
| Fitting Description | 45° Split Flange Tube Elbow (SAE Code 61) |
| Fitting Material | Carbon Steel |
| Fitting Shape | 45° Elbow |
| Flange Code | 61 |
| Flange Type | Code 61 |
| For Hose Dash Size | -24 |
| For Use With Hose Series | G115 Series, H017 Series, H039 Series, H114 Series, H145 Series, H146 Series, H245 Series, H324 Series, H325 Series, H350 Series, H425 Series, H545 Series, H900 Series |
| Height | 1.41" |
| Hex | 2.406" |
| Hole Dia. | 1.01" |
| Hose Cut Off Factor | 4 1/5" |
| Hose Dash Size | -20 |
| Hydraulic Fitting Connection Type | Crimpable |
| Hydraulic Flange Size | 1 1/2" |
| Hydraulic Hose Inside Dia. | 1 1/4" |
| Inside Dia. | 1.01" |
| Item Type | Fitting Assembly |
| Length | 5 19/25" , 5.76" |
| Material | Carbon Steel |
| Overall Length | 5 19/25" |
| Product Type | Hose Fittings |
| Series | Z Series |
| Thread Sealant | No |
| Tube Outside Dia. | 1 1/4" |
| Type | Fitting Assembly |
| Width | 2.41" |
Shipping Info:
| Ship weight (kg) | 0.68 |
| Ship height (cm) | 3.58 |
| Ship length (cm) | 14.63 |
| Ship width (cm) | 6.12 |
| HS code | 7307929000 |
| Country of Origin | US |
